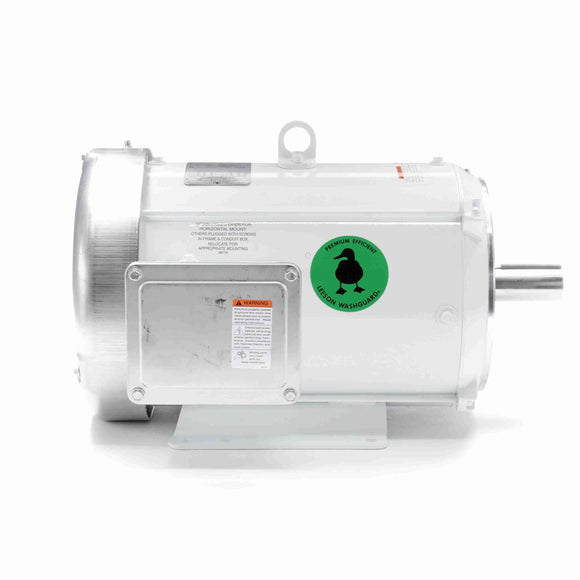

140822.00 Leeson 7.5HP Washguard Electric Motor, 1800 RPM

$1,849.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 140822.00 Barcode: 691720000243

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model : C213T17WK9A Catalog No : 140822.00
Part Description : ..7 1/2HP..1765RPM.213.TEFC.230/460V.3PH.60HZ.CONT.40C.1.25SF.RIGID C.C213T17WK9A.....WASHGUARD.NOT....5.6kW... Category : General Purpose
Stock : No
Nameplate Specifications
Output HP : 7.50 Hp Output KW : 5.6 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 22.4-21.6/10.8 A Speed : 1765 rpm
Service Factor : 1.25 Phase : 3
Efficiency : 91.7 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : J Frame : 213TC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6209
Opp Drive End Bearing Size : 6206 UL : Recognized
CSA : Y CE : Y
IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 18.71 in Frame Length : 12.00 in
Shaft Diameter : 1.375 in Shaft Extension : 3.38 in
Assembly/Box Mounting : F1 ONLY UPC : 691720000243
Weight : 157.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 43.00 194.0 400 7.50
Full Load 10.80 22.20 100.0 1,770 7.50
Break-Down 0.00 64.20 289.0 1,600 7.50
Locked-Rotor 73.00 50.00 225.0 0 7.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 6.00
  • 0.300
  • 0.0
  • 6.2
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 6.50
  • 1.720
  • 81.5
  • 33.2
  • 1,794
  • 0.0
  • 5.50
  • 50 %
  • 7.55
  • 3.158
  • 88.4
  • 52.5
  • 1,787
  • 0.0
  • 11.00
  • 75 %
  • 9.00
  • 4.650
  • 90.4
  • 64.8
  • 1,780
  • 0.0
  • 16.62
  • 100 %
  • 10.64
  • 6.110
  • 91.8
  • 72.1
  • 1,770
  • 43.0
  • 22.30
  • 125 %
  • 12.65
  • 7.700
  • 90.9
  • 76.4
  • 1,765
  • 0.0
  • 27.90
  • 150 %
  • 15.00
  • 9.270
  • 90.6
  • 77.6
  • 1,756
  • 0.0
  • 33.65
