Features
- USDA-approved epoxy painted motors
- NEMA motors
- AC washdown
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Washdown brakemotors and pump motors available
- UL recognized and CSA certified
General Specifications

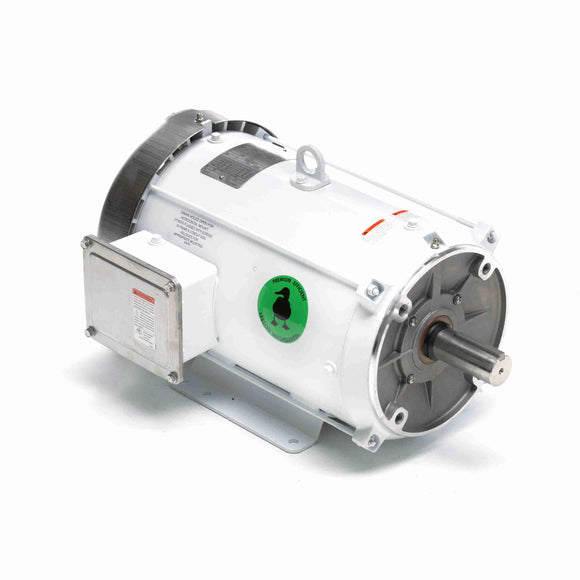

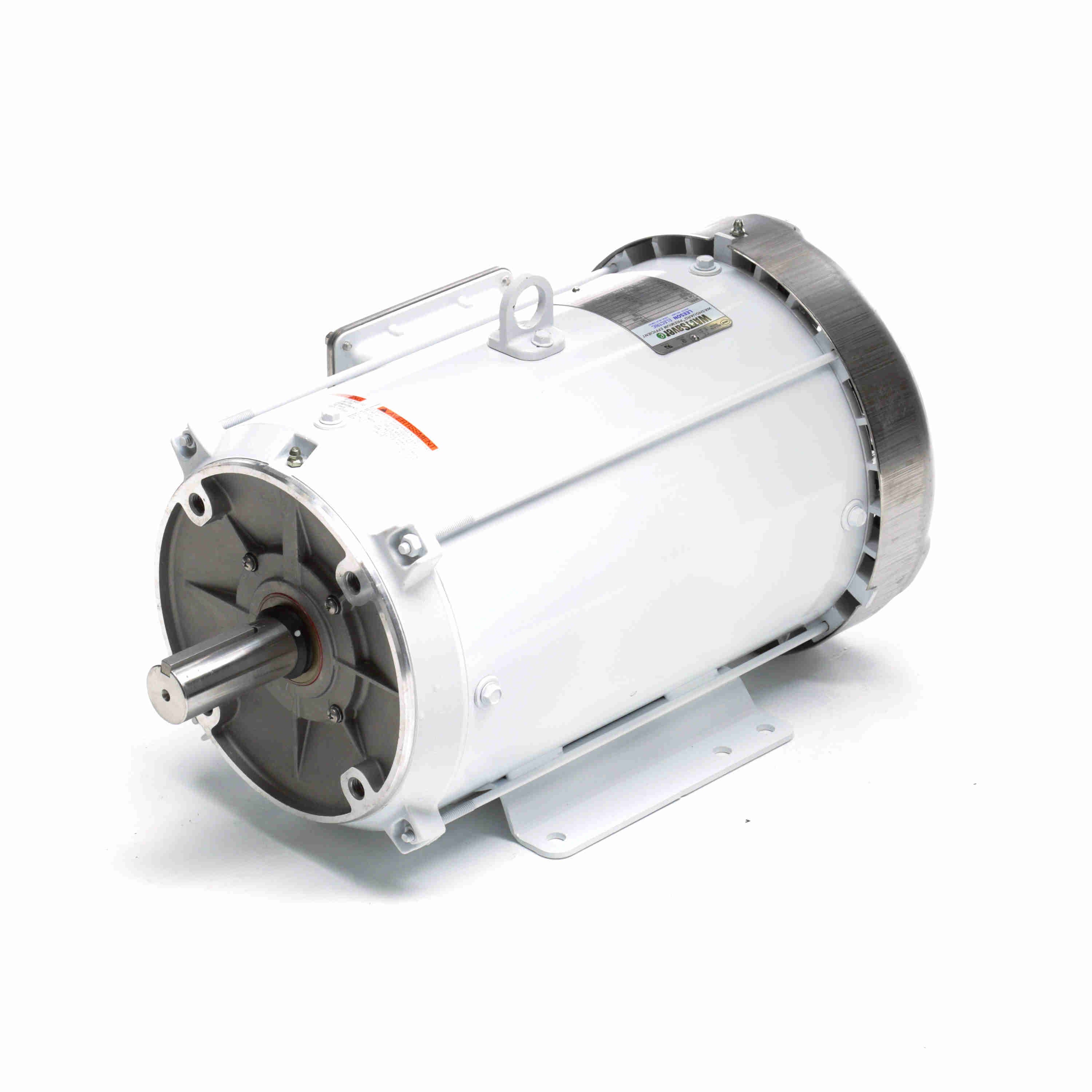

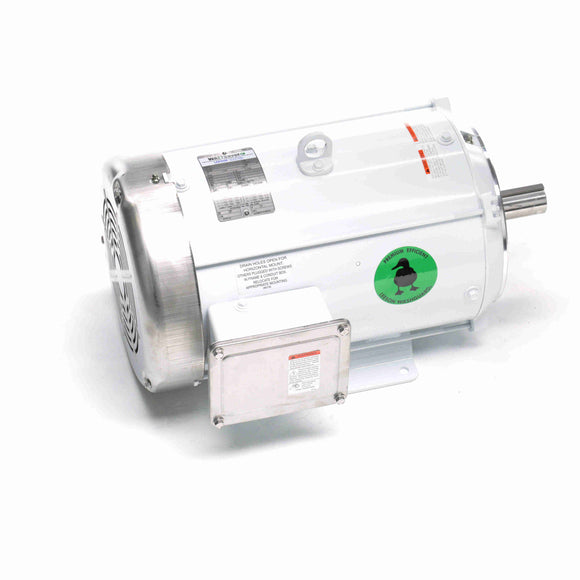

| Model : | C215T17WK9A | Catalog No : | 140821.00 |
| Part Description : | ..10HP..1765RPM.215.TEFC.230/460V.3PH.60HZ.CONT.40C.1.25SF.RIGID C.C215T17WK9A.....WASHGUARD.NOT....7.5kW... | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 10 Hp | Output KW : | 7.5 kW |
| Frequency : | 60 Hz | Voltage : | 230/460 V |
| Current : | 26.8/13.4 A | Speed : | 1765 rpm |
| Service Factor : | 1.25 | Phase : | 3 |
| Efficiency : | 91.7 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | H | Frame : | 215TC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6209 |
| Opp Drive End Bearing Size : | 6206 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 19.71 in | Frame Length : | 13.00 in |
| Shaft Diameter : | 1.375 in | Shaft Extension : | 3.38 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720980071 |
| Weight : | 179.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 79.00 | 590.0 | 55.20 | 186.0 | 0 | 0.00 | 0.0 | 10.00 |
| Full Load | 13.40 | 100.0 | 29.75 | 100.0 | 1,765 | 0.00 | 0.0 | 10.00 |
| Pull-Up | 77.00 | 575.0 | 40.00 | 134.0 | 400 | 0.00 | 0.0 | 10.00 |
| Break-Down | 48.50 | 362.0 | 90.00 | 303.0 | 1,550 | 0.00 | 0.0 | 10.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 6.20
- 0.300
- 0.0
- 6.1
- 1,799
- 0.0
- 0.00
- 25 %
- 6.90
- 2.175
- 85.8
- 39.6
- 1,793
- 0.0
- 7.33
- 50 %
- 8.60
- 4.115
- 90.6
- 60.1
- 1,784
- 0.0
- 14.71
- 75 %
- 10.70
- 6.110
- 91.7
- 71.7
- 1,774
- 0.0
- 22.23
- 100 %
- 13.40
- 8.155
- 91.7
- 77.0
- 1,765
- 55.0
- 29.75
- 115 %
- 15.00
- 9.400
- 91.0
- 78.8
- 1,758
- 70.0
- 34.20
- 125 %
- 16.20
- 10.280
- 90.7
- 79.2
- 1,754
- 85.0
- 37.43
- 150 %
- 19.50
- 12.480
- 89.6
- 80.3
- 1,743
- 0.0
- 45.17
