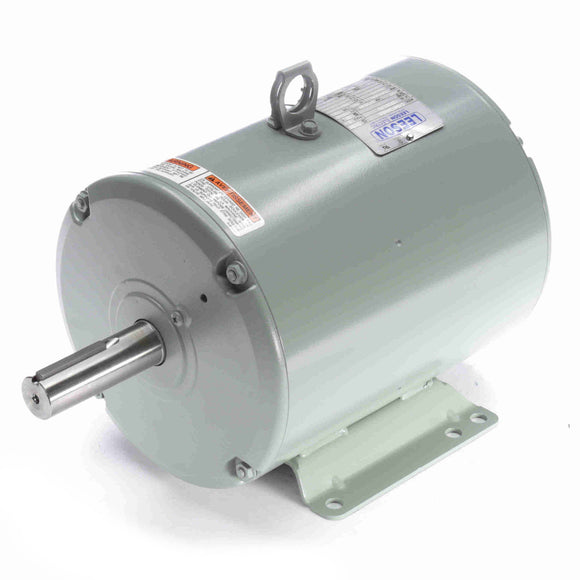

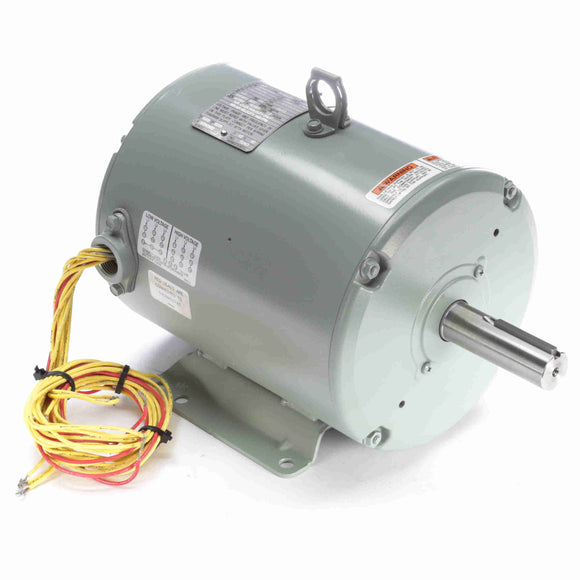

132393.00 Leeson 5-7HP Grain Dryer / Centrifugal Fan Electric Motor, 3600RPM

$747.27

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 132393.00 Barcode: 691720103722

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Rolled steel construction
  • Oversized sealed bearings
  • 50 degree C ambient temperature
  • Grease fitting with relief
  • Epoxy paint
  • Double sealed ball bearings
  • 1" longer shaft than NEMA

General Specifications

General Specifications
Model : C184T34NB3A Catalog No : 132393.00
Part Description : 132393.00..5-7HP..3600RPM.184TZ.TEAO.230/460V.3PH.60HZ.CONT.50C.1.0SF.RIGID.C184T34NB3.....CROP DRYER........ Category : Crop Dryer
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 5 HP Output KW : 3.7 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 13.1-16.5/8.3 A Speed : 3545 RPM
Service Factor : 1 Phase : 3
Efficiency : 89.5 % Duty : Continuous
Insulation Class : F Design Code : NO DESIGN CODE
KVA Code : J Frame : 184TZ
Enclosure : Totally Enclosed Air Over Overload Protector : No
Ambient Temperature : 50 °C Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 2 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : Single Special Extension
Overall Length : 15.38 in Frame Length : 9.50 in
Shaft Diameter : 1.125 in Shaft Extension : 3.5 in
Assembly/Box Mounting : F1 ONLY UPC : 691720103722
Weight : 100.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 0.0 21.95 293.0 0 0.00 0.0 7.00
Full Load 5.92 100.0 7.50 100.0 3,535 4.82 89.7 7.00
Locked-Rotor 66.00 1,115.0 22.40 299.0 0 0.00 0.0 7.00
Break-Down 42.70 721.0 34.40 459.0 2,880 25.80 76.0 7.00
No Load 2.02 34.0 0.00 0.0 359 0.17 10.0 7.00
