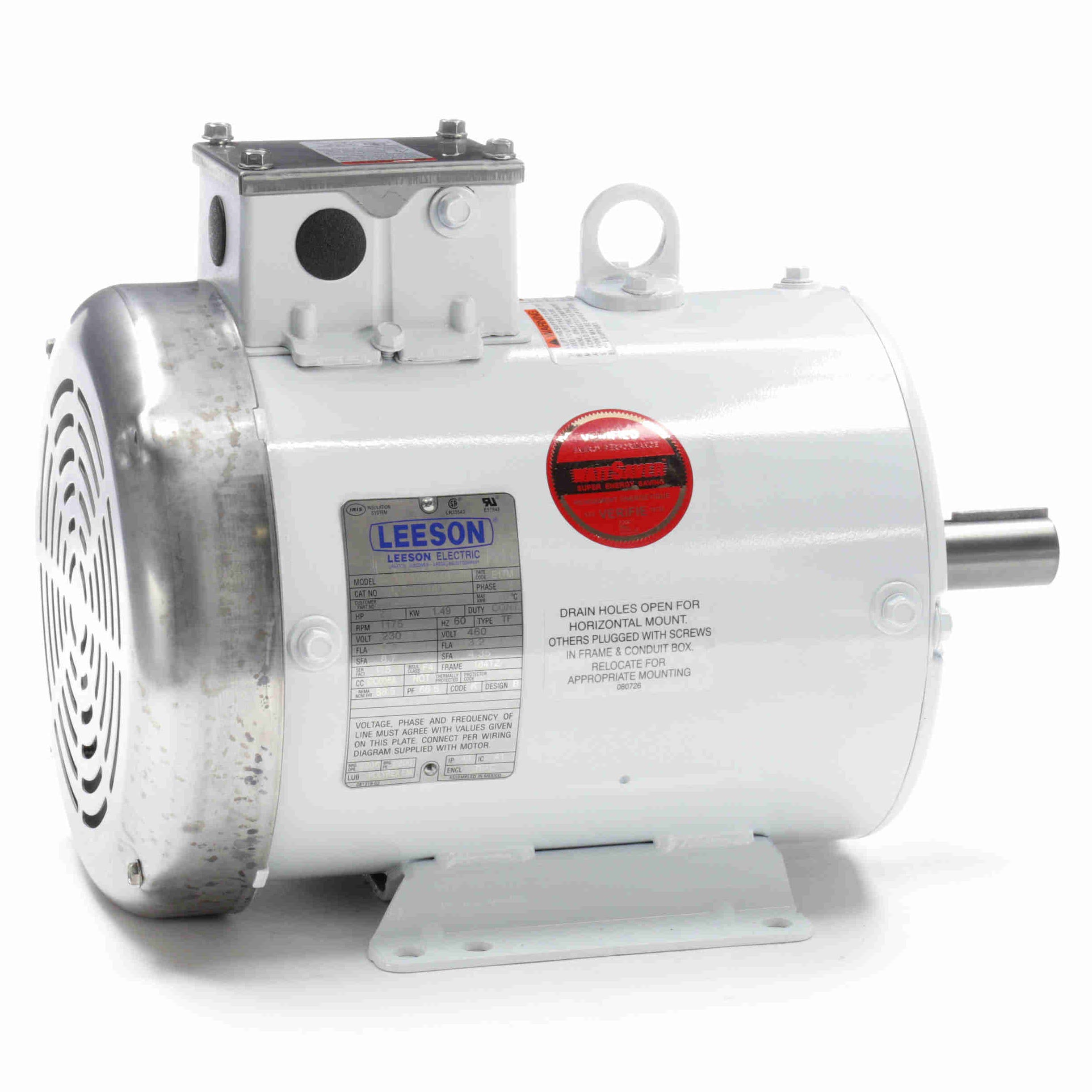

132246.00 Leeson 2HP Ag-Duty Feather Picker Electric Motor, 1200RPM-1

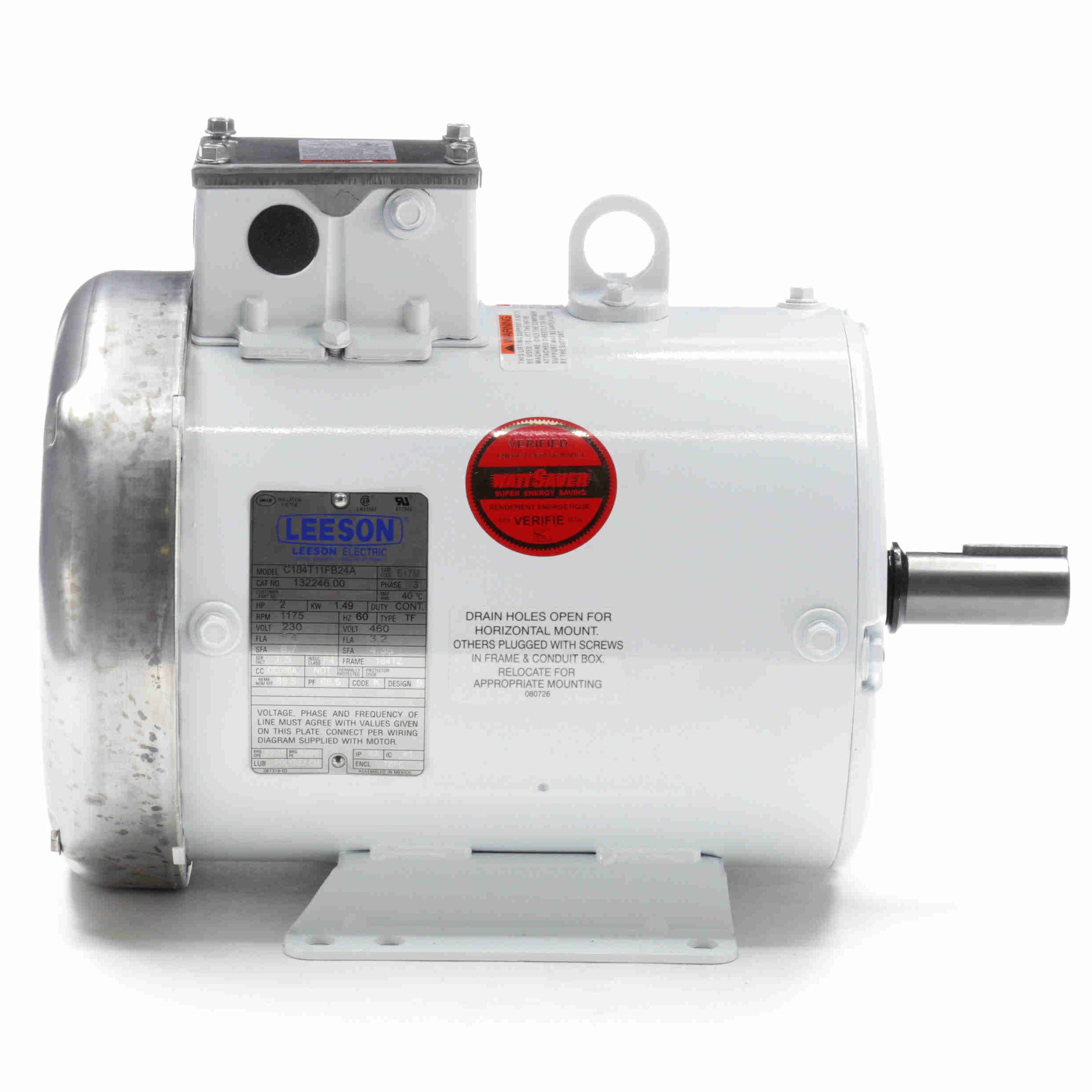

132246.00 Leeson 2HP Ag-Duty Feather Picker Electric Motor, 1200RPM-2

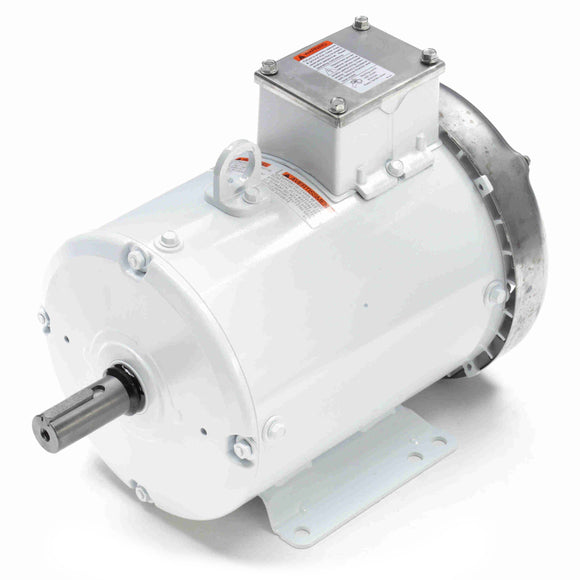

132246.00 Leeson 2HP Ag-Duty Feather Picker Electric Motor, 1200RPM-3

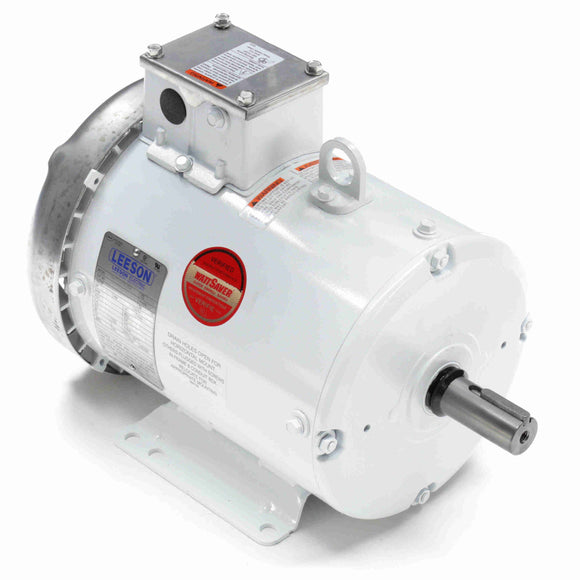

132246.00 Leeson 2HP Ag-Duty Feather Picker Electric Motor, 1200RPM-4

132246.00 Leeson 2HP Ag-Duty Feather Picker Electric Motor, 1200RPM

$969.08

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 132246.00 Barcode: 691720257500

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Phosphatized or stainless steel shafts drilled and tapped metric shafts
  • Epoxy painted for corrosion protection
  • USDA approved food-safe paint
  • Extra high breakdown torques

General Specifications

General Specifications
Model : C184T11FB24A Catalog No : 132246.00
Part Description : ..2HP..1170RPM.184TZ.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.5SF.RIGID.C184T11FB24A............. Category : Feather Picker
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 2 HP Output KW : 1.5 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 6.4/3.2 A Speed : 1175 RPM
Service Factor : 1.5 Phase : 3
Efficiency : 88.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : K Frame : 184TZ
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 6 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : IEC
Overall Length : 14.96 in Frame Length : 9.50 in
Shaft Diameter : 1.125 in Shaft Extension : 2.81 in
Assembly/Box Mounting : F1/F2 CAPABLE UPC : 691720257500
Weight : 85.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 3.20 100.0 9.00 100.0 1,175 0.00 0.0 2.00
Break-Down 10.10 316.0 30.20 336.0 1,000 0.00 0.0 2.00
Locked-Rotor 20.50 641.0 16.80 187.0 0 0.00 0.0 2.00
Pull-Up 20.10 628.0 16.50 183.0 21 0.00 0.0 2.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.94
  • 0.094
  • 0.0
  • 6.1
  • 1,198
  • 0.0
  • 0.00
  • 25 %
  • 2.05
  • 0.475
  • 80.3
  • 29.1
  • 1,194
  • 0.0
  • 2.25
  • 50 %
  • 2.32
  • 0.872
  • 87.1
  • 47.2
  • 1,188
  • 0.0
  • 4.50
  • 75 %
  • 2.70
  • 1.267
  • 88.0
  • 58.9
  • 1,182
  • 0.0
  • 6.64
  • 100 %
  • 3.20
  • 1.695
  • 88.5
  • 66.5
  • 1,175
  • 32.0
  • 9.00
  • 115 %
  • 3.50
  • 1.945
  • 88.5
  • 69.8
  • 1,171
  • 0.0
  • 10.35
  • 125 %
  • 3.72
  • 2.120
  • 87.9
  • 71.5
  • 1,168
  • 0.0
  • 11.23
  • 150 %
  • 4.35
  • 2.576
  • 86.7
  • 74.3
  • 1,159
  • 0.0
  • 13.57
