Features
- USDA-approved epoxy painted motors
- NEMA motors
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Washdown brakemotors and pump motors available
- UL recognized and CSA certified
General Specifications

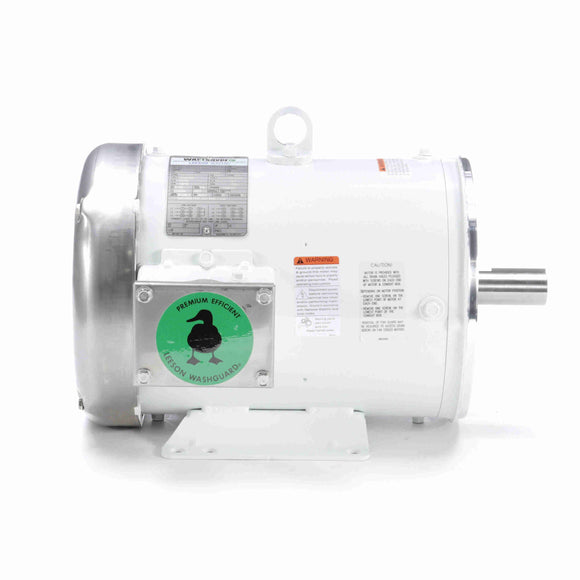

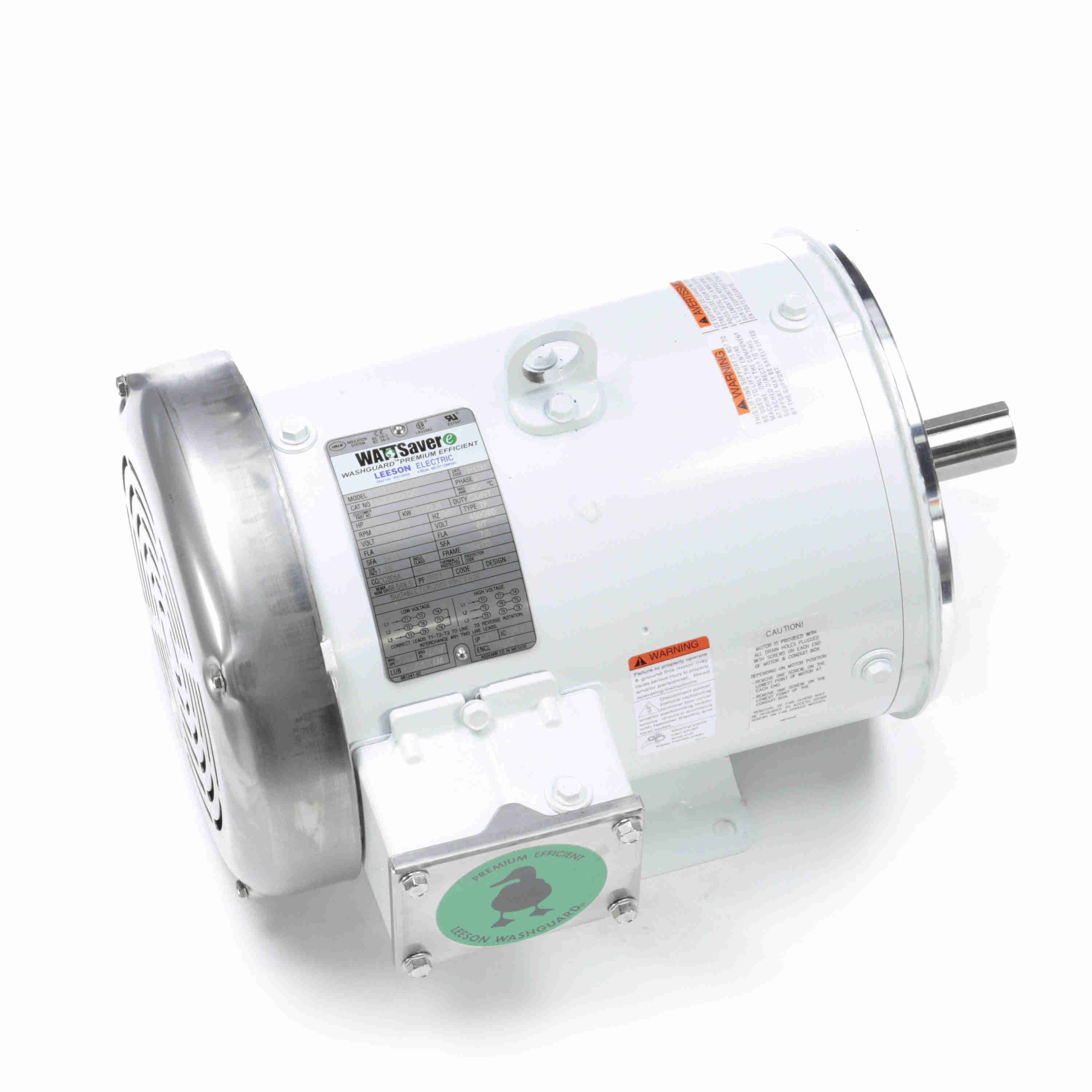

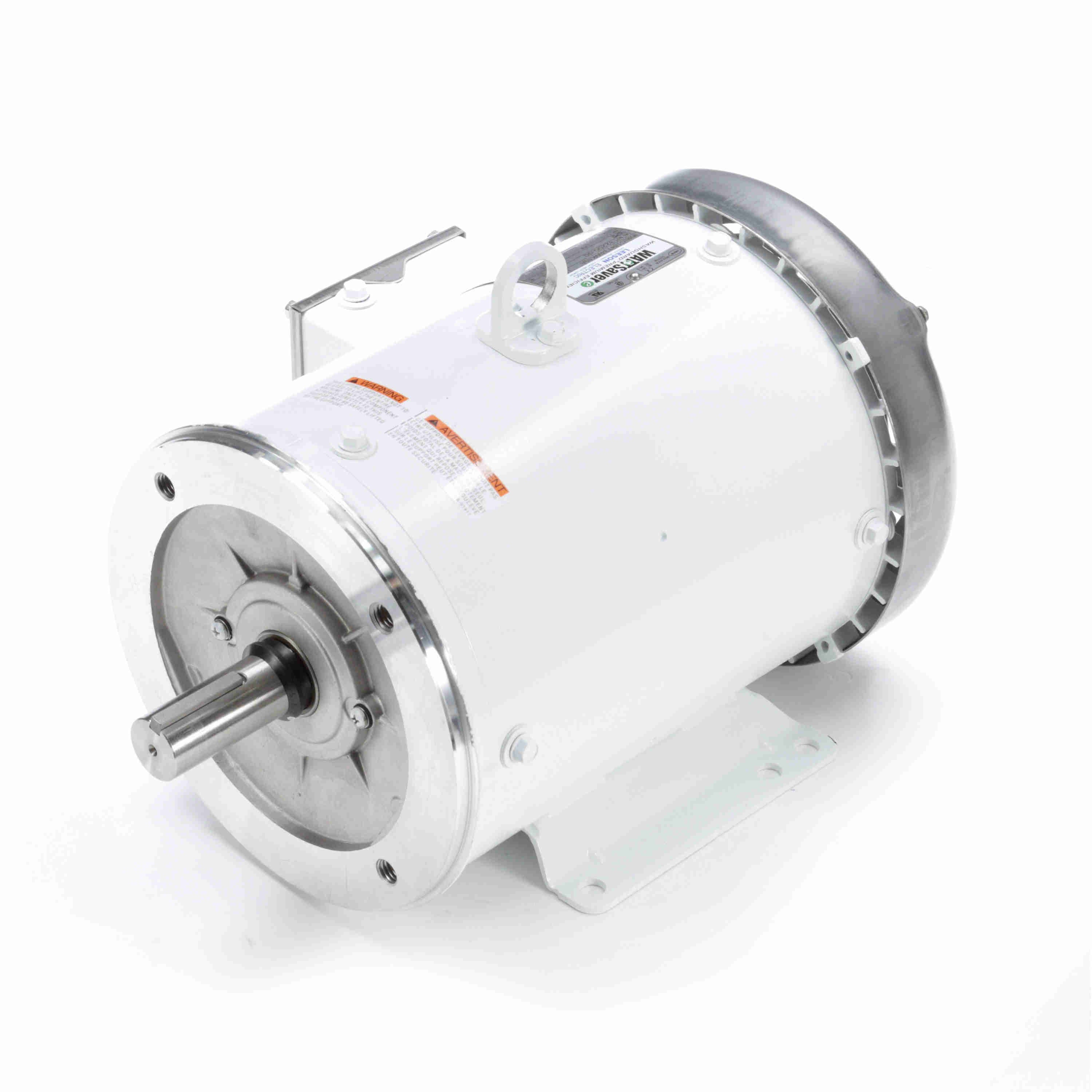

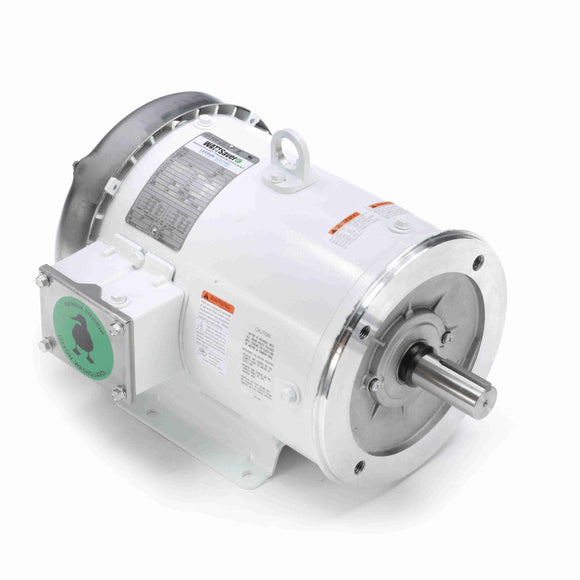

| Model : | C184T34WK10A | Catalog No : | 132200.00 |
| Part Description : | 5HP..3510RPM.184.TEFC./V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C184T34WK10A | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 5 Hp | Output KW : | 3.7 kW |
| Frequency : | 60 Hz | Voltage : | 230/460 V |
| Current : | 12.0/6.0 A | Speed : | 3515 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 88.5 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | K | Frame : | 184TC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6207 |
| Opp Drive End Bearing Size : | 6205 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 14.97 in | Frame Length : | 9.50 in |
| Shaft Diameter : | 1.125 in | Shaft Extension : | 2.75 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720105160 |
| Weight : | 90.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 6.00 | 100.0 | 7.50 | 100.0 | 3,495 | 0.00 | 0.0 | 5.00 |
| Pull-Up | 47.00 | 783.0 | 15.50 | 200.0 | 170 | 0.00 | 0.0 | 5.00 |
| Break-Down | 30.00 | 500.0 | 26.00 | 347.0 | 2,850 | 0.00 | 74.5 | 5.00 |
| Locked-Rotor | 47.00 | 783.0 | 16.00 | 213.0 | 0 | 0.00 | 45.5 | 5.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 1.70
- 0.200
- 0.0
- 14.8
- 3,600
- 0.0
- 0.00
- 25 %
- 2.30
- 1.100
- 81.9
- 62.9
- 3,576
- 0.0
- 1.80
- 50 %
- 3.30
- 2.100
- 87.9
- 81.1
- 3,551
- 0.0
- 3.70
- 75 %
- 4.50
- 3.100
- 89.1
- 87.5
- 3,526
- 0.0
- 5.60
- 100 %
- 6.00
- 4.200
- 88.5
- 89.5
- 3,495
- 55.0
- 7.50
- 115 %
- 6.80
- 4.900
- 88.3
- 90.5
- 3,477
- 75.0
- 8.70
- 125 %
- 7.40
- 5.300
- 87.6
- 90.8
- 3,463
- 85.0
- 9.50
