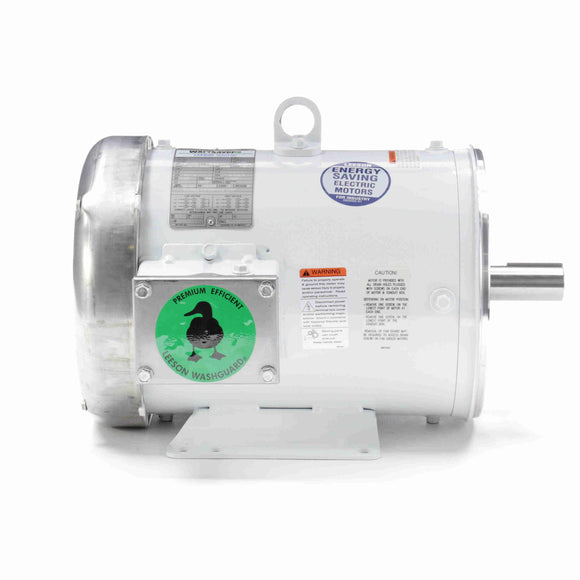

Leeson Washguard Electric Motor, 3 HP, 3600 RPM

$1,169.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 132199.00 Barcode: 691720000328

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model : C182T34WK1A Catalog No : 132199.00
Part Description : ..3HP..3505RPM.182TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.C182T34WK1A.....WASHGUARD.NOT....... Category : General Purpose
Stock : No
Nameplate Specifications
Output HP : 3 Hp Output KW : 2.2 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 8.2-7.6/3.8 A Speed : 3515 rpm
Service Factor : 1.25 Phase : 3
Efficiency : 86.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : K Frame : 182TC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 2 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 14.97 in Frame Length : 9.50 in
Shaft Diameter : 1.125 in Shaft Extension : 2.75 in
Assembly/Box Mounting : F1 ONLY UPC : 691720000328
Weight : 80.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 16.50 367.0 2,700 0.00 0.0 3.00
Locked-Rotor 34.00 895.0 12.00 267.0 0 0.00 0.0 3.00
Pull-Up 0.00 0.0 11.50 256.0 600 0.00 0.0 3.00
Full Load 3.80 100.0 4.50 100.0 3,521 0.00 0.0 3.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.41
  • 0.194
  • 0.0
  • 17.3
  • 3,599
  • 0.0
  • 0.00
  • 25 %
  • 1.73
  • 0.773
  • 79.0
  • 56.1
  • 3,580
  • 0.0
  • 1.20
  • 50 %
  • 2.23
  • 1.357
  • 85.8
  • 76.4
  • 3,562
  • 0.0
  • 2.30
  • 75 %
  • 2.89
  • 1.988
  • 86.1
  • 86.3
  • 3,542
  • 0.0
  • 3.40
  • 100 %
  • 3.71
  • 2.602
  • 86.5
  • 88.0
  • 3,521
  • 0.0
  • 4.50
  • 115 %
  • 4.20
  • 2.900
  • 86.6
  • 90.0
  • 3,510
  • 0.0
  • 5.20
  • 125 %
  • 4.41
  • 3.210
  • 86.7
  • 91.4
  • 3,498
  • 0.0
  • 5.60
  • 150 %
  • 5.28
  • 3.865
  • 86.8
  • 91.9
  • 3,474
  • 0.0
  • 6.80
