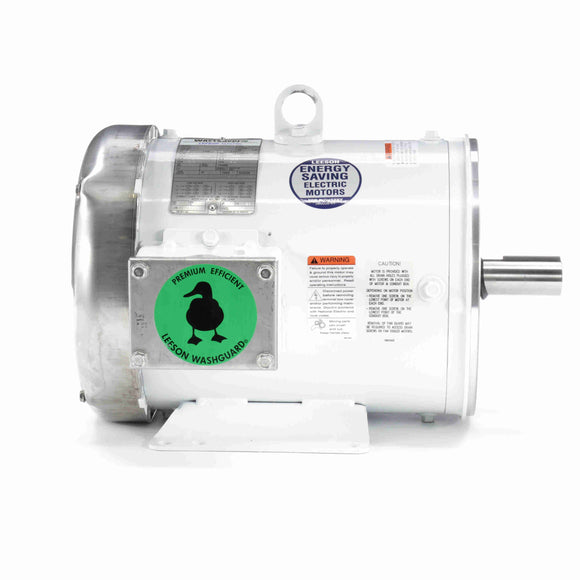

Leeson Washguard Electric Motor, 3 HP, 1800 RPM-1

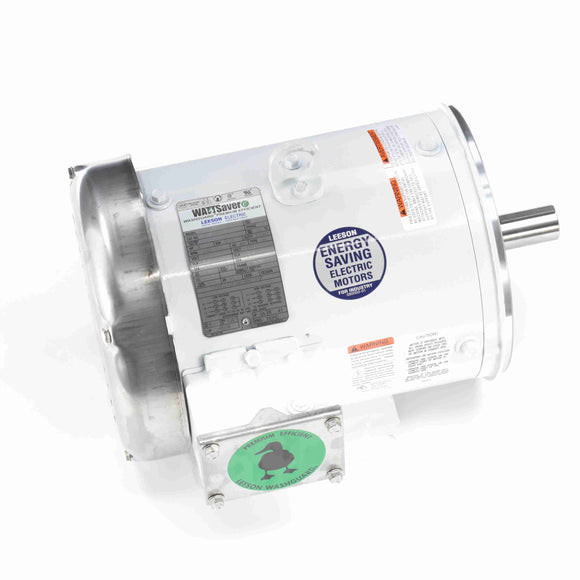

Leeson Washguard Electric Motor, 3 HP, 1800 RPM-2

Leeson Washguard Electric Motor, 3 HP, 1800 RPM

$1,179.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 132198.00 Barcode: 691720000298

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model : C182T17WK13A Catalog No : 132198.00
Part Description : 3HP..1770RPM.182.TEFC./V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C182T17WK13A Category : General Purpose
Stock : No
Nameplate Specifications
Output HP : 3 Hp Output KW : 2.2 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 7.8/3.9 A Speed : 1760 rpm
Service Factor : 1.15 Phase : 3
Efficiency : 89.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : K Frame : 182TC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 14.47 in Frame Length : 9.00 in
Shaft Diameter : 1.125 in Shaft Extension : 2.75 in
Assembly/Box Mounting : F1 ONLY UPC : 691720000298
Weight : 79.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 33.00 846.0 21.00 236.0 0 0.00 0.0 3.00
Break-Down 21.50 551.0 36.00 404.0 0 0.00 0.0 3.00
Locked-Rotor 33.50 859.0 22.50 253.0 0 0.00 0.0 3.00
Full Load 3.90 100.0 8.90 100.0 1,770 0.00 80.5 3.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.90
  • 0.105
  • 0.0
  • 6.9
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.10
  • 0.693
  • 80.8
  • 41.4
  • 1,792
  • 0.0
  • 2.20
  • 50 %
  • 2.56
  • 1.278
  • 87.7
  • 62.7
  • 1,785
  • 0.0
  • 4.42
  • 75 %
  • 3.18
  • 1.870
  • 89.6
  • 73.8
  • 1,777
  • 0.0
  • 6.64
  • 100 %
  • 3.90
  • 2.500
  • 89.5
  • 80.5
  • 1,770
  • 40.0
  • 8.91
  • 115 %
  • 4.40
  • 2.862
  • 89.9
  • 81.6
  • 1,766
  • 47.0
  • 10.26
  • 125 %
  • 4.73
  • 3.129
  • 89.2
  • 83.0
  • 1,755
  • 0.0
  • 11.20
  • 150 %
  • 5.61
  • 3.787
  • 88.5
  • 84.7
  • 1,750
  • 0.0
  • 13.49
