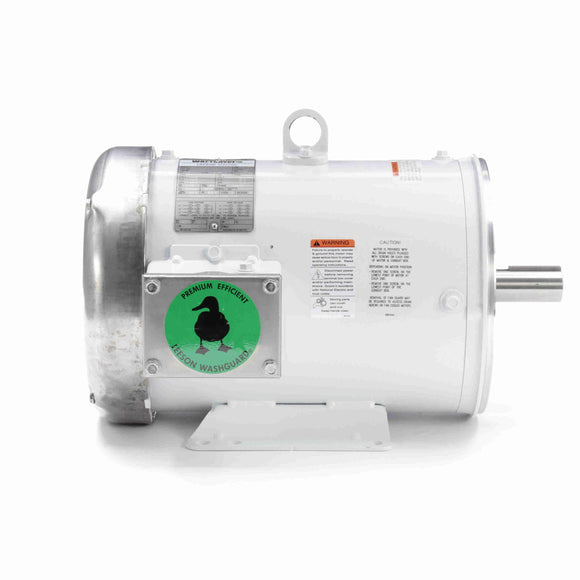

Leeson Washguard Electric Motor, 5 HP, 1800 RPM-1

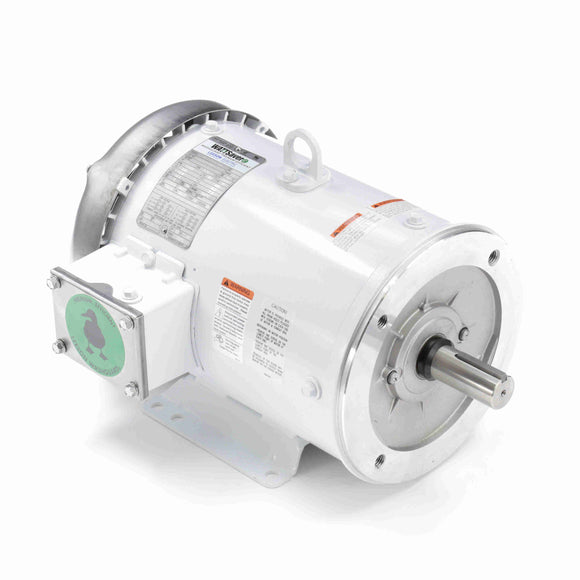

Leeson Washguard Electric Motor, 5 HP, 1800 RPM-2

Leeson Washguard Electric Motor, 5 HP, 1800 RPM

$1,429.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 132201.00 Barcode: 691720051993

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model : C184T17WK15A Catalog No : 132201.00
Part Description : 5HP..1750RPM.184.TEFC./V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C184T17WK15A Category : General Purpose
Stock : No
Nameplate Specifications
Output HP : 5 Hp Output KW : 3.7 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 12.6/6.3 A Speed : 1760 rpm
Service Factor : 1.15 Phase : 3
Efficiency : 89.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : J Frame : 184TC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 15.47 in Frame Length : 10.00 in
Shaft Diameter : 1.125 in Shaft Extension : 2.75 in
Assembly/Box Mounting : F1 ONLY UPC : 691720051993
Weight : 91.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 49.00 778.0 30.10 201.0 0 0.00 0.0 5.00
Full Load 6.30 100.0 14.96 100.0 1,760 4.17 0.0 5.00
Break-Down 0.00 0.0 50.20 336.0 0 0.00 0.0 5.00
Pull-Up 0.00 0.0 29.80 199.0 0 0.00 0.0 5.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.40
  • 0.130
  • 0.0
  • 6.8
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.80
  • 1.089
  • 85.9
  • 48.8
  • 1,790
  • 0.0
  • 3.68
  • 50 %
  • 3.72
  • 2.100
  • 88.9
  • 70.9
  • 1,779
  • 0.0
  • 7.39
  • 75 %
  • 4.90
  • 3.100
  • 90.2
  • 79.4
  • 1,768
  • 0.0
  • 11.13
  • 100 %
  • 6.30
  • 4.166
  • 89.5
  • 83.0
  • 1,760
  • 65.0
  • 14.96
  • 115 %
  • 7.20
  • 4.830
  • 89.3
  • 84.2
  • 1,747
  • 0.0
  • 17.38
  • 125 %
  • 7.80
  • 5.300
  • 88.0
  • 85.3
  • 1,742
  • 0.0
  • 18.84
  • 150 %
  • 9.46
  • 6.490
  • 86.2
  • 86.1
  • 1,727
  • 0.0
  • 22.80
