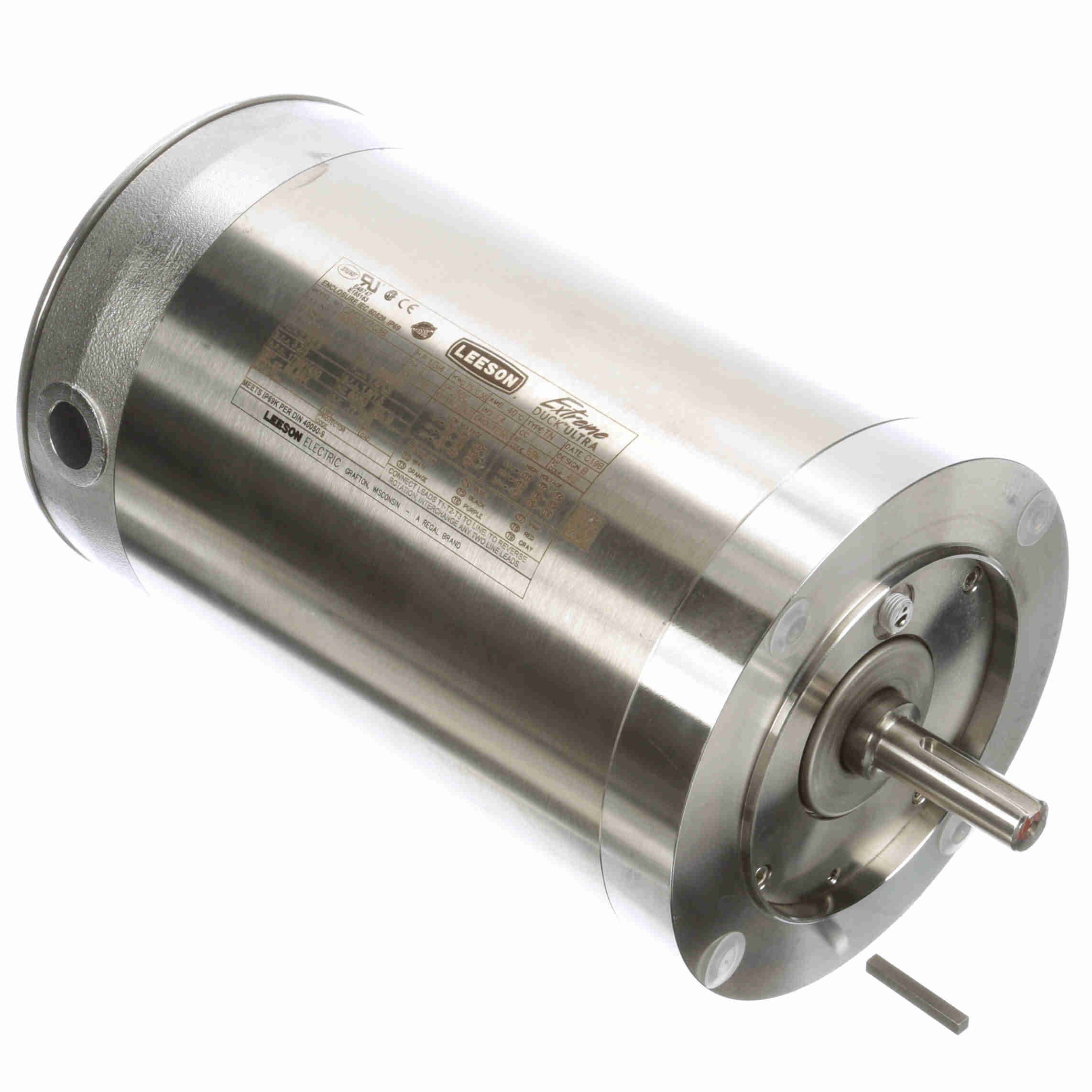

119976.00 Leeson 1HP Washdown Electric Motor, 1800RPM-1

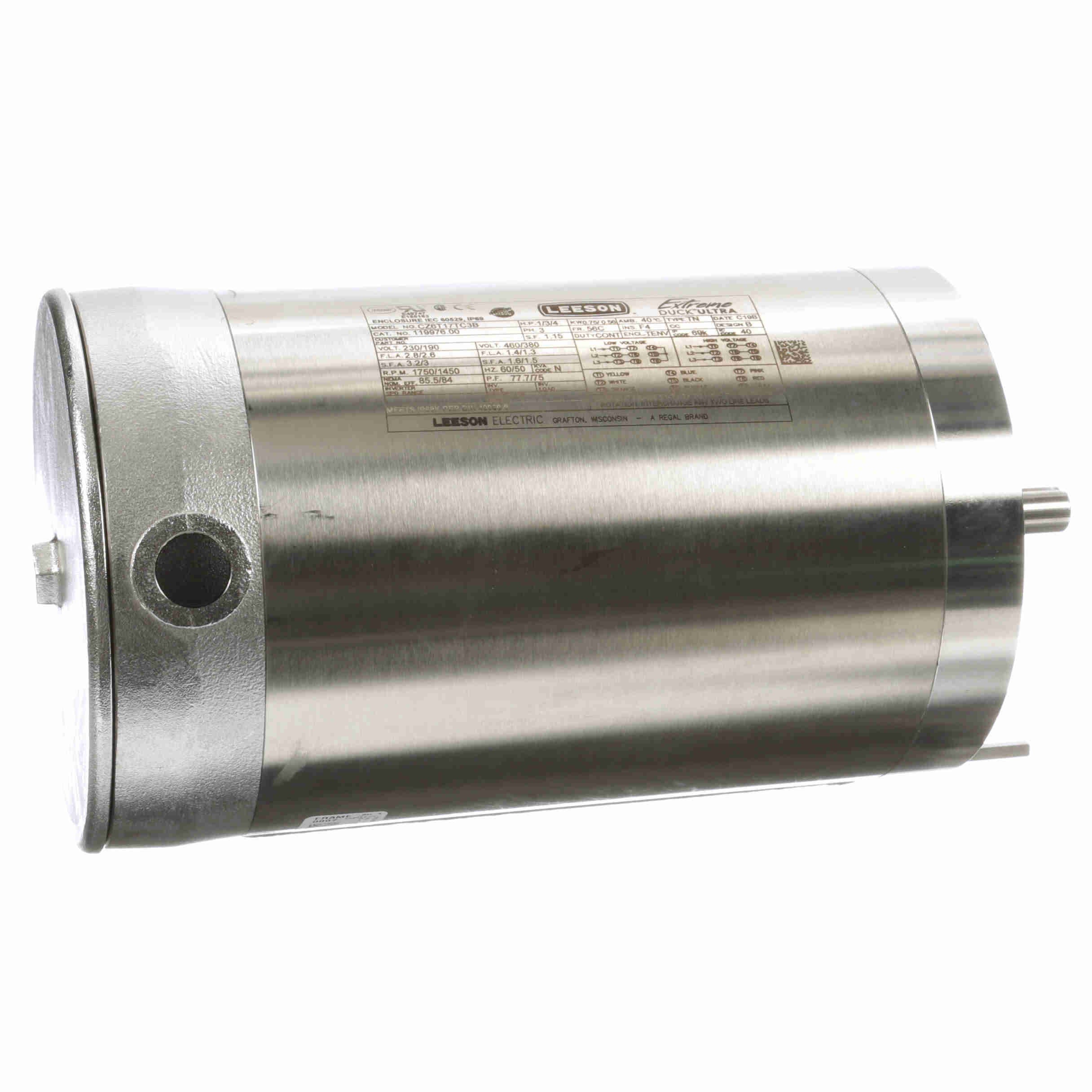

119976.00 Leeson 1HP Washdown Electric Motor, 1800RPM-2

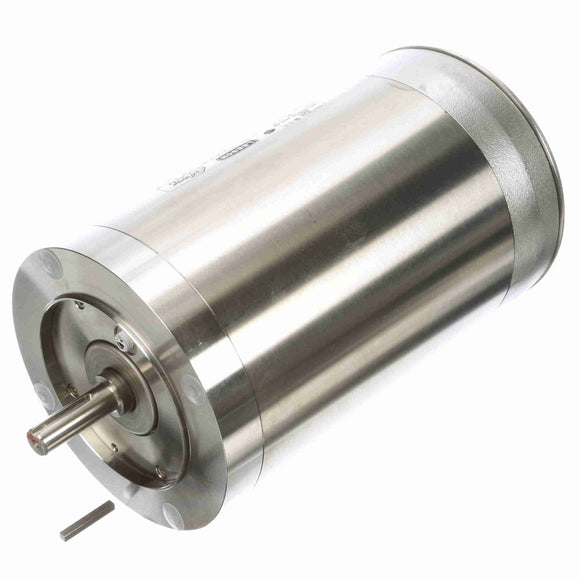

119976.00 Leeson 1HP Washdown Electric Motor, 1800RPM-3

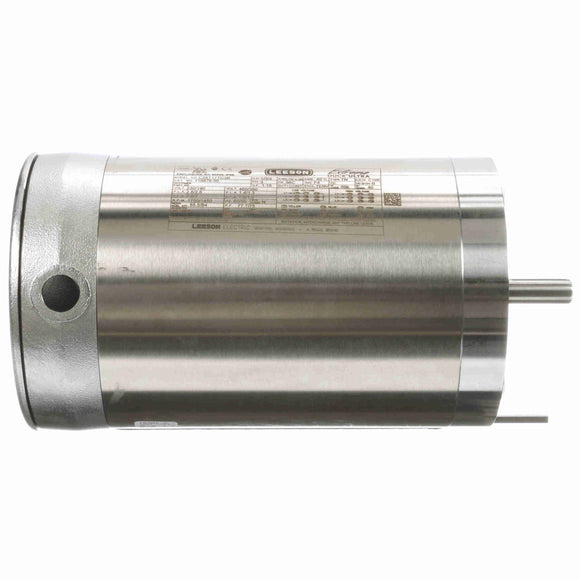

119976.00 Leeson 1HP Washdown Electric Motor, 1800RPM-4

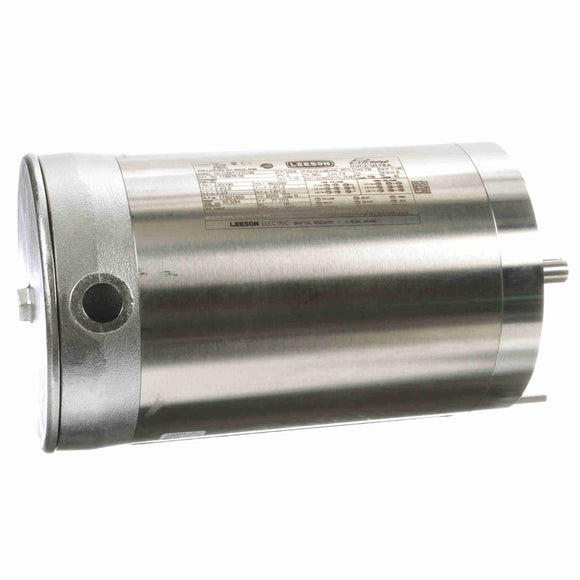

119976.00 Leeson 1HP Washdown Electric Motor, 1800RPM

$1,439.97 $3,367.00 Save $1,927.03

Shipping calculated at checkout

Witmer Motor Service SKU: 119976.00 Barcode: 691720991428

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Q-Car(TM) rotor cartridge for quick access
  • Double-sealed ball bearings with high temperature grease
  • Non-wicking lead wires; Two-piece shaft seal with flinger
  • Chemical and abrasion resistant lead markers
  • Conduit box rotates 360 degrees on TEFC models
  • Enhanced encapsulation process; IP69K enclosure protection
  • Total winding encapsulation using an epoxy resin
  • LEESON’s exclusive IRIS® Inverter-Rated Insulation System provides extra protection and long life, especially when used in applications driven by an Inverter
  • CSA Energy Efficiency Verification Program, report number EEV 78720-1
  • IP69K enclosure protection;Color Coded Leads; Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720991428 Weight: 57.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 2.8/1.4 A Speed: 1750 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 85.5 % Power Factor: 77.7
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: N
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 69

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: NEMA 56 Overall Length: 13.22 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 8.60 619.0 206.00 429.0 1,227 5.22 0.0 1.00
Full Load 1.39 100.0 48.04 100.0 1,749 0.86 0.0 1.00
Pull-Up 12.34 888.0 182.00 379.0 0 6.11 0.0 1.00
Locked-Rotor 12.43 894.0 166.00 346.0 0 6.11 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.74 0.80 0.95 1.15 1.39 1.66 1.97
Rated Output (KW) 0.05 0.24 0.44 0.64 0.86 1.08 1.32
Efficiency (%) 0.0 78.4 85.1 86.9 86.6 86.0 84.8
Power Factor (%) 9.0 37.5 57.9 70.3 77.7 82.0 84.4
Speed (RPM) 1,795 1,788 1,776 1,763 1,749 1,734 1,718
Temp. Rise @ FL 0.0 0.0 0.0 0.0 56.0 0.0 0.0
Torque (ft-lbs) 0.00 11.80 23.64 35.75 48.04 60.59 73.65
