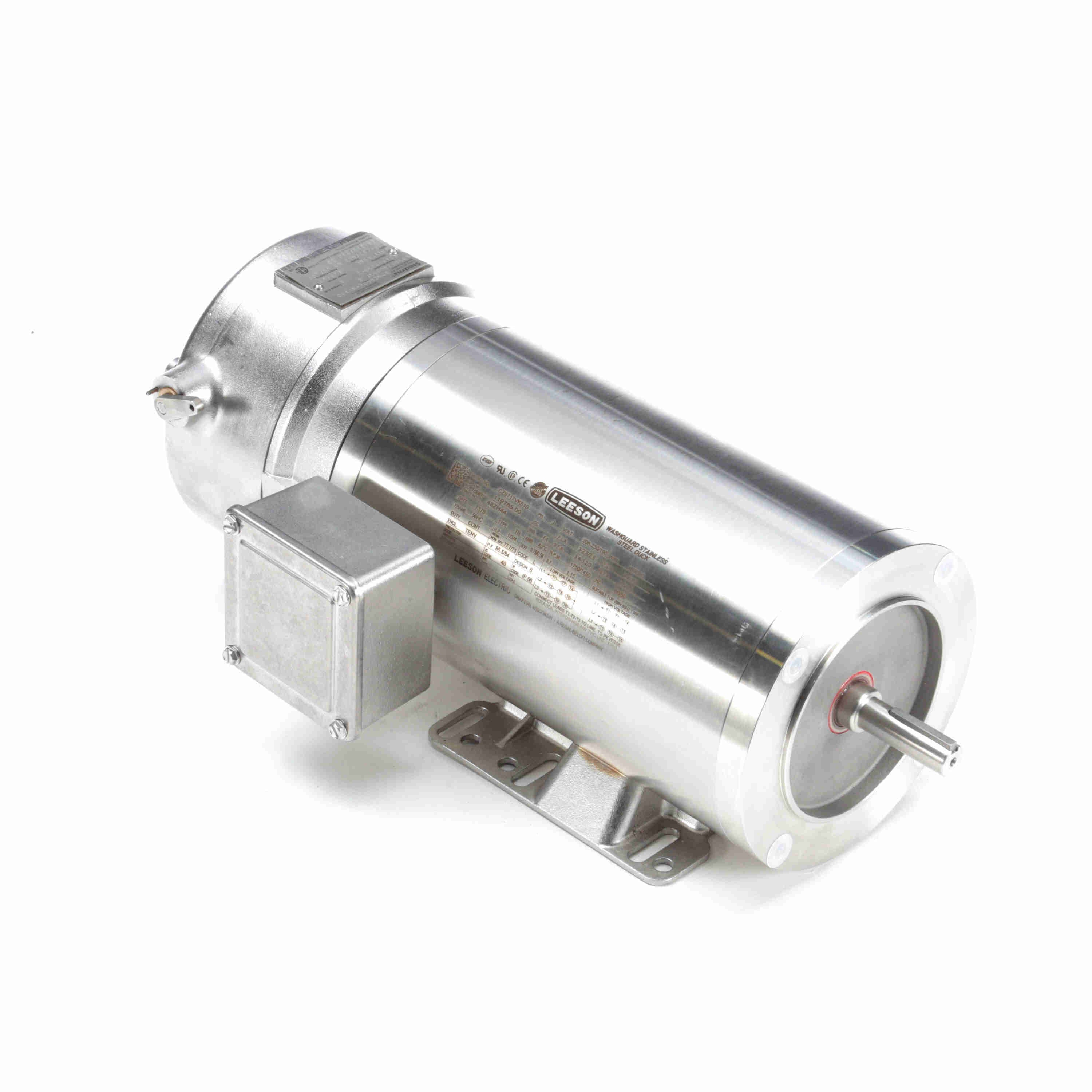

119785.00 Leeson 1HP Washguard Electric Brake Motor, 1800 RPM-1

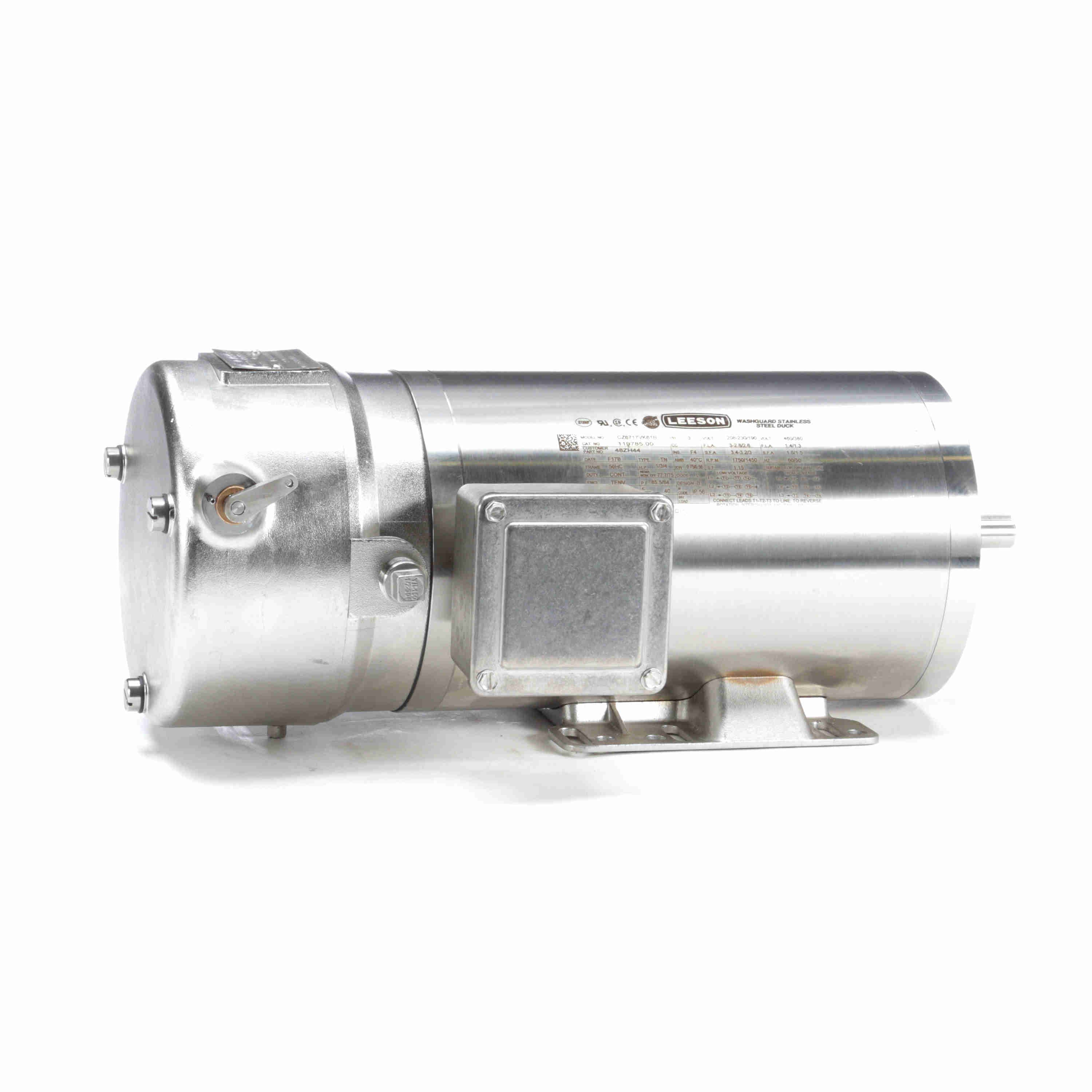

119785.00 Leeson 1HP Washguard Electric Brake Motor, 1800 RPM-2

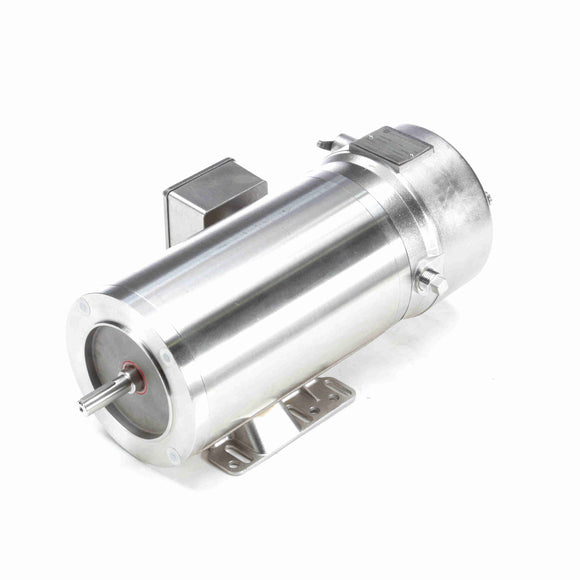

119785.00 Leeson 1HP Washguard Electric Brake Motor, 1800 RPM-3

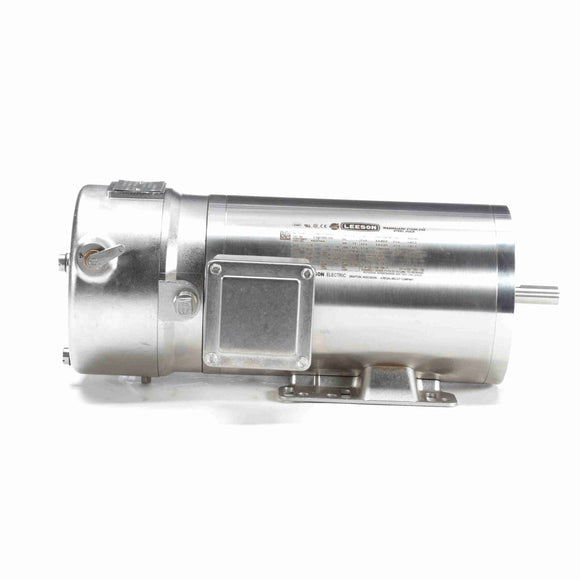

119785.00 Leeson 1HP Washguard Electric Brake Motor, 1800 RPM-4

119785.00 Leeson 1HP Washguard Electric Brake Motor, 1800 RPM

$5,411.97 $10,965.00 Save $5,553.03

Shipping calculated at checkout

Witmer Motor Service SKU: 119785.00 Barcode: 691720102862

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • All exterior components are 300-series stainless steel
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • WASHGUARD efficiencies meet EPAct mandates for non-exempt motors when tested without shaft seals
  • All Washdown Duty motors have Class F Insulation
  • Ease to clean construction is BISSC Certified for bakery applications
  • Washdown Duty
  • Nameplate etched in frame; Full fact nameplate is laser etched on the motor frame

General Specifications

General Specifications
Model : CZ6717VK61B Catalog No : 119785.00
Part Description : ..1HP..1725RPM.56H.TENV.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.CZ6T17VK32A.....Brakemotor.NOT....... Category : Brake Motors
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1 Hp Output KW : 0.75 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 3.0-2.8/1.4 A Speed : 1750 rpm
Service Factor : 1.15 Phase : 3
Efficiency : 85.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : L Frame : 56HC
Enclosure : Totally Enclosed Non Ventilated Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 56

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated Starting Method : Line Or Inverter
Poles : 4 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Stainless Steel Shaft Type : NEMA 56
Overall Length : 18.01 in Frame Length : 9.50 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720102862
Weight : 73.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 8.60 619.0 206.00 429.0 1,227 5.22 0.0 1.00
Pull-Up 12.34 888.0 182.00 379.0 0 6.11 0.0 1.00
Full Load 1.39 100.0 48.04 100.0 1,749 0.86 0.0 1.00
Locked-Rotor 12.43 894.0 166.00 346.0 0 6.11 0.0 1.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.74
  • 0.053
  • 0.0
  • 9.0
  • 1,795
  • 0.0
  • 0.00
  • 25 %
  • 0.80
  • 0.239
  • 78.4
  • 37.5
  • 1,788
  • 0.0
  • 11.80
  • 50 %
  • 0.95
  • 0.438
  • 85.1
  • 57.9
  • 1,776
  • 0.0
  • 23.64
  • 75 %
  • 1.15
  • 0.644
  • 86.9
  • 70.3
  • 1,763
  • 0.0
  • 35.75
  • 100 %
  • 1.39
  • 0.861
  • 86.6
  • 77.7
  • 1,749
  • 56.0
  • 48.04
  • 125 %
  • 1.66
  • 1.084
  • 86.0
  • 82.0
  • 1,734
  • 0.0
  • 60.59
  • 150 %
  • 1.97
  • 1.324
  • 84.8
  • 84.4
  • 1,718
  • 0.0
  • 73.65
