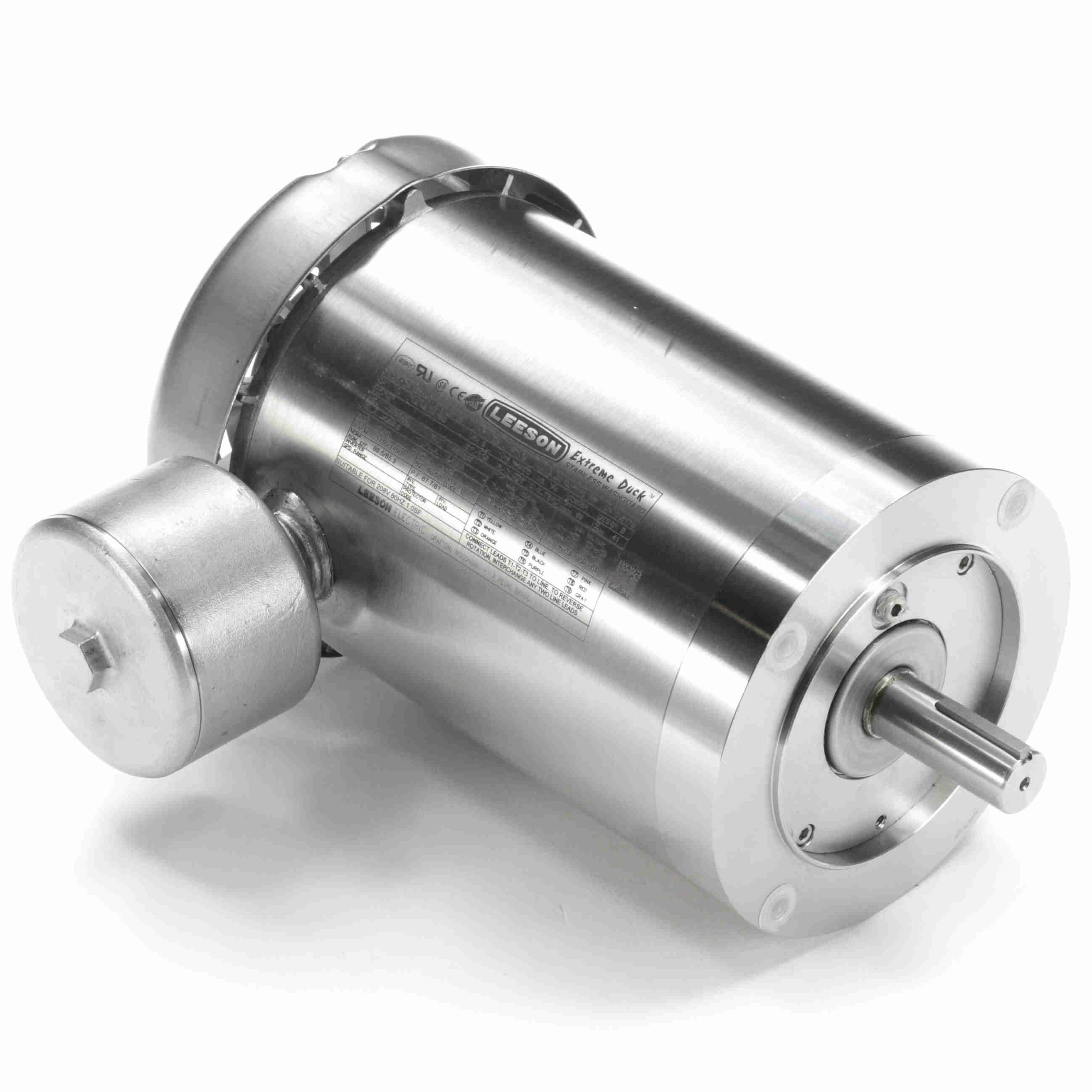

121909.00 Leeson 1.5HP Washdown Electric Motor, 1800RPM-1

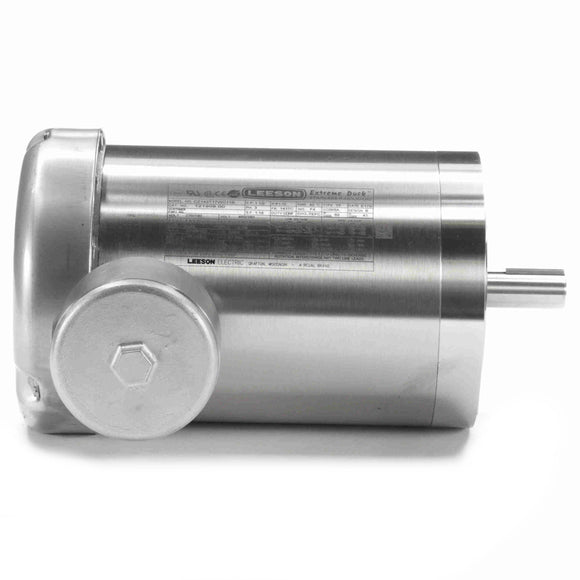

121909.00 Leeson 1.5HP Washdown Electric Motor, 1800RPM-2

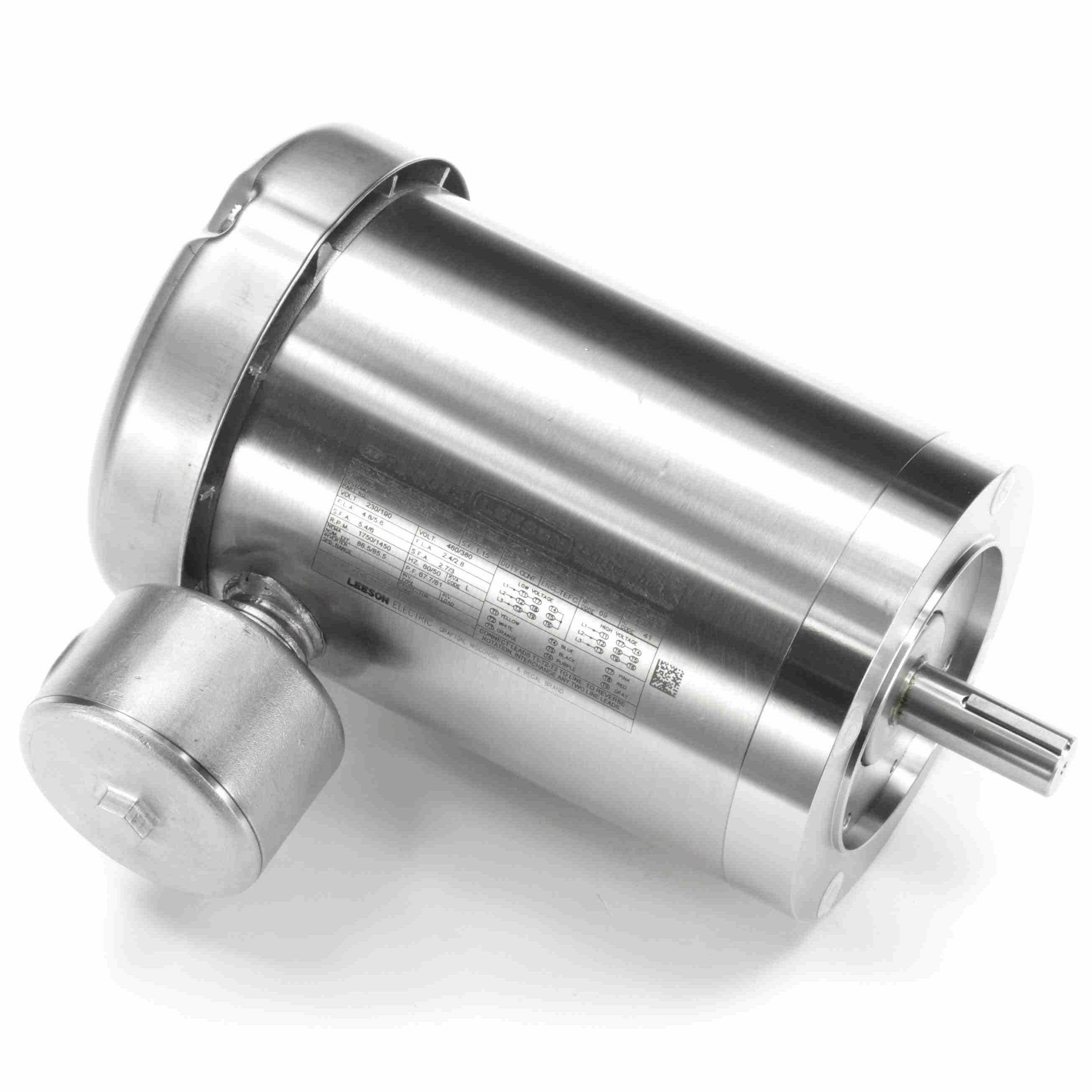

121909.00 Leeson 1.5HP Washdown Electric Motor, 1800RPM-3
121909.00 Leeson 1.5HP Washdown Electric Motor, 1800RPM-4

121909.00 Leeson 1.5HP Washdown Electric Motor, 1800RPM

$1,457.07 USD $3,445.00 USD Save $1,987.93 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 121909.00 Barcode: 691720211793

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • WASHGUARD efficiencies meet EPAct mandates for non-exempt motors when tested without shaft seals
  • LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
  • IP69K enclosure protection
  • Q-Car(TM) rotor cartridge for quick access; Color Coded Leads; Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720211793 Weight: 55.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 4.8/2.4 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 67.7
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 143TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 69

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 9.12 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 12.69 in
Frame Length: 7.75 in Shaft Diameter: 0.875 in
Shaft Extension: 2.25 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 18.50 771.0 17.20 382.0 0 9.91 0.0 1.50
Full Load 2.40 100.0 4.50 100.0 1,752 1.31 75.3 1.50
Break-Down 12.09 504.0 20.40 453.0 1,200 7.81 0.0 1.50
Pull-Up 16.06 669.0 17.00 378.0 200 9.40 0.0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.23 1.33 1.53 1.81 2.15 2.52 2.94
Rated Output (KW) 0.10 0.38 0.67 0.97 1.29 1.61 1.95
Efficiency (%) 0.0 74.4 84.2 87.2 86.5 86.0 84.6
Power Factor (%) 9.9 35.4 55.2 67.3 75.4 80.2 83.0
Speed (RPM) 1,797 1,786 1,773 1,761 1,746 1,732 1,716
Temp. Rise @ FL 0.0 0.0 0.0 0.0 45.0 0.0 0.0
Torque (ft-lbs) 0.00 1.10 2.25 3.38 4.50 5.63 6.75
