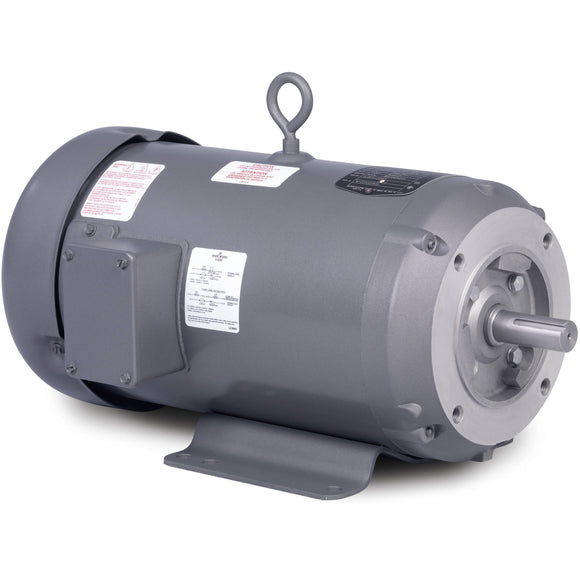

Specifications
Specs
Armature Voltage180 V
Base Speed1,750 rpm
Field Voltage200 V
100 V
100 V
Frame184C
Frame MaterialSteel
Output Power1.5 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
UR
Ambient Temperature40 °C
Armature Current7.5 A
Armature Inertia30.342lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Field Winding TypeSHUNT
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsStandard Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size4 @ 18 AWG
2 @ 12 AWG
2 @ 12 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length17.41 in
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
RoHS StatusRoHS Compliant
Service Factor1.00
Shaft Diameter0.875 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
XP DivisionNot Applicable
Applications
- Conveyors
- Printing and textile equipment
- Machine tools
Features
- Designed for use with NEMA type K SCR control
- 20:1 constant torque speed range
- NEMA C-face and removable base
- NEMA 182 frame and larger – normally closed thermostat on field winding
- Class F insulation
- 1.0 Service Factor
Nameplate
Nameplate
| CAT.NO. | CD6215 | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 36-5257Z106 | ||||||||||||||||||||||||||||||
| HP | 1.5 | ENCL | TEFC | ||||||||||||||||||||||||||||
| RPM | 1750 | ||||||||||||||||||||||||||||||
| FRAME | 184C | TYPE | 3636D | ||||||||||||||||||||||||||||
| ARM V | 180 | ARM A | 7.5 | ||||||||||||||||||||||||||||
| FLD V | 200/100 | FLD A | .25/.5 | ||||||||||||||||||||||||||||
| INSUL | F | AMB. | 40 | ||||||||||||||||||||||||||||
| DUTY | CONT | SUPPLY | ---- | ||||||||||||||||||||||||||||
| BRG/DE | 6206 | BRG/ODE | 6205 | ||||||||||||||||||||||||||||
| BRUSHES | 2/BP5125A01 | ||||||||||||||||||||||||||||||
| BLANK | |||||||||||||||||||||||||||||||
| SER. | |||||||||||||||||||||||||||||||
| BLANK | |||||||||||||||||||||||||||||||
| APRV-CSA | APRV-UL | ||||||||||||||||||||||||||||||
| NP0111L | |||||||||||||||||||||||||||||||
Performance
Performance
Performance at 180 Arm V, 1.5 HP
Typical performance; not guaranteed values.General Characteristics
Armature Resistance0.885 ohms
Series Winding Resistance
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance0.698 ohms
Shunt Winding Resistance623 ohms
Armature Inertia
Maximum Allowable Inrush Amps
Load Characteristics
| Load Point | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
| Armature Amps | 0.4 | 2 | 3.7 | 5.4 | 6.95 | 8.6 | 10.3 |
| RPM | 1747 | 1718 | 1687 | 1660 | 1645 | 1629 | 1622 |
| Torque | 0 | 1.125 | 2.25 | 3.375 | 4.5 | 5.625 | 6.75 |
Performance Curves
Performance at 180 Arm V, 1.5 HP
Typical performance; not guaranteed values.General Characteristics
Armature Resistance0.8797 ohms
Series Winding Resistance
Armature Inductance13.549 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance0.5855 ohms
Shunt Winding Resistance311.7 ohms
Armature Inertia30.342 LI²
Maximum Allowable Inrush Amps
Load Characteristics
| Load Point | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
| Armature Amps | 0.54 | 2 | 3.55 | 5.23 | 6.61 | 8.27 | 10.48 |
| RPM | 1782 | 1788 | 1777 | 1769 | 1779 | 1778 | 1779 |
| Torque | 0 | 1.13 | 2.26 | 3.39 | 4.5 | 5.63 | 6.75 |
Performance Curves
