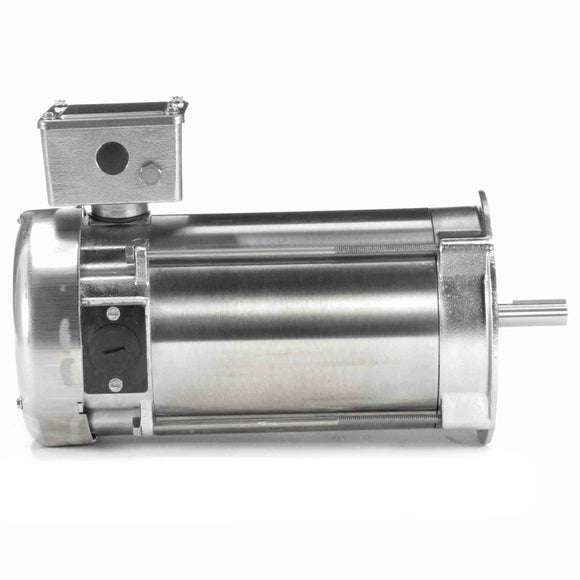

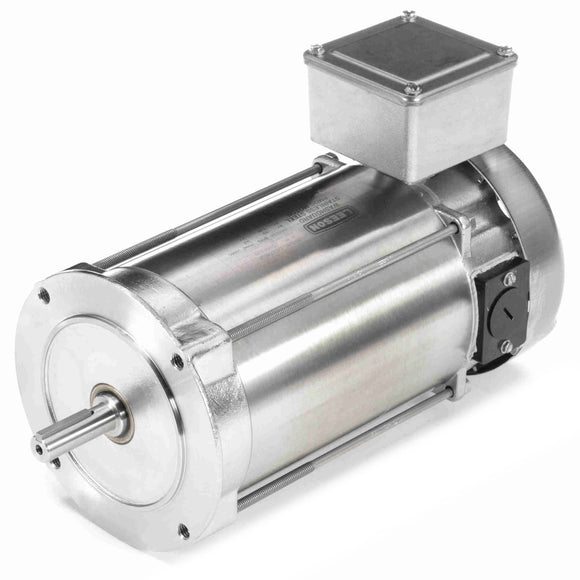

Features
- All exterior components are 300-series stainless steel
- All sealing components are Viton® for superior chemical resistance
- Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
- Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
- Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
- All Washdown Duty motors have Class F Insulation
- New conduit box mounting system provides optimum sealing
- Ease to clean construction is BISSC Certified for bakery applications
- Full fact nameplate is laser etched on the motor frame
General Specifications
| UPC: | 691720343081 | Weight: | 46.00 LB |
| Packaged Length: | 19.5 IN | Packaged Width: | 10.44 IN |
| Packaged Height: | 10.88 IN |
Nameplate Specifications
| Output HP: | 0.50 Hp | Output KW: | 0.37 kW |
| Voltage: | 180 V | Current: | 2.7 A |
| Speed: | 1750 rpm | Service Factor: | 1 |
| Efficiency: | 77.3 % | Duty: | Continuous |
| Insulation Class: | F | Frame: | US56C |
| Enclosure: | Totally Enclosed Fan Cooled | Thermal Protection: | No |
| Ambient Temperature: | 40 °C | Drive End Bearing Size: | 6205 |
| Opp Drive End Bearing Size: | 6203 | UL: | Recognized |
| CSA: | Y | CE: | N |
Technical Specifications
| Rotation: | Reversible | Mounting: | Round |
| Overall Length: | 13.87 in | Frame Length: | 7.25 in |
| Shaft Diameter: | 0.625 in | Shaft Extension: | 2.05 in |
