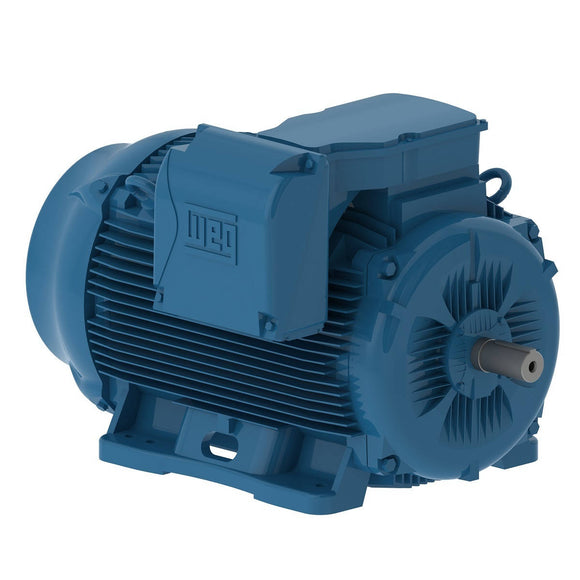

Electric Motors
| Frame | L447/9T |
|---|---|
| Output | 400 HP (300 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1190 rpm |
| Slip | 0.83 % |
| Rated voltage | 460 V |
| Rated current | 477 A |
| L. R. Amperes | 3291 A |
| LRC | 6.9x(Code H) |
| No load current | 200 A |
| Rated torque | 1770 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 250 % |
| Locked rotor time | 23s (cold) 13s (hot) |
| Moment of inertia (J) | 278 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 71.0 dB(A) |
| Approx. weight³ | 3619 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
95.4 |
95.8 |
95.8 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.68 |
0.78 |
0.82 |
| Frame | L447/9T |
|---|---|
| Output | 350 HP (260 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 990 rpm |
| Slip | 1.00 % |
| Rated voltage | 380 V |
| Rated current | 497 A |
| L. R. Amperes | 3081 A |
| LRC | 6.2x(Code G) |
| No load current | 190 A |
| Rated torque | 1860 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 240 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 278 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 70.0 dB(A) |
| Approx. weight³ | 3619 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
95.4 |
95.8 |
95.8 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.70 |
0.80 |
0.83 |
| Frame | L447/9T |
|---|---|
| Output | 350 HP (260 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 990 rpm |
| Slip | 1.00 % |
| Rated voltage | 400 V |
| Rated current | 478 A |
| L. R. Amperes | 3346 A |
| LRC | 7.0x(Code H) |
| No load current | 210 A |
| Rated torque | 1860 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 260 % |
| Locked rotor time | 28s (cold) 16s (hot) |
| Moment of inertia (J) | 278 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 70.0 dB(A) |
| Approx. weight³ | 3619 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
95.4 |
95.8 |
95.8 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.66 |
0.77 |
0.82 |
| Frame | L447/9T |
|---|---|
| Output | 350 HP (260 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 990 rpm |
| Slip | 1.00 % |
| Rated voltage | 415 V |
| Rated current | 472 A |
| L. R. Amperes | 3540 A |
| LRC | 7.5x(Code J) |
| No load current | 225 A |
| Rated torque | 1860 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 280 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 278 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 70.0 dB(A) |
| Approx. weight³ | 3619 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
95.0 |
95.4 |
95.8 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.62 |
0.74 |
0.80 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | Extended, at Drive end and Non-drive end |
| Main terminal box hole | 2xNPT 3" |
| Terminal Block | Without |
| Shaft Locking Device | With |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C3) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
| Fan material | Aluminum |
| Screw cap | CARBON STEEL SAE 1010/20 |
| NDE bearing Seal | WSeal |
| DE bearing Seal | WSeal |
| Cable Press Material | Sem |
