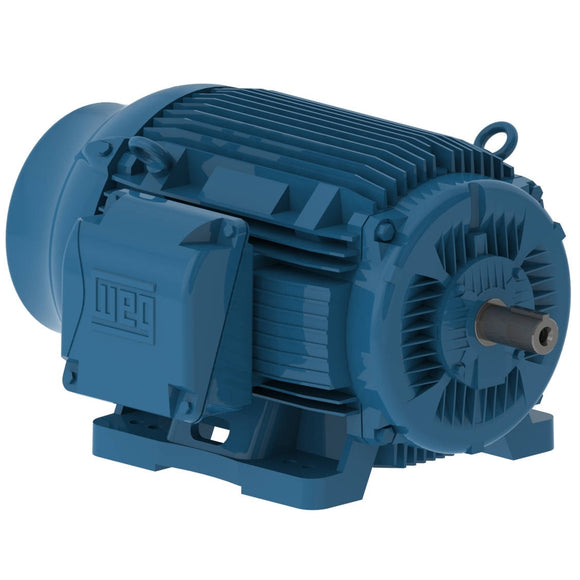

15018ET3GRB445T-W22 WEG 150HP Crusher Duty Electric Motor, 1800RPM

$15,503.80 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 15018ET3GRB445T-W22 Barcode: 7894171931651

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 444T/445T Frame, 460VAC 60Hz 3 Phase, 11356087, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Description Product Specs Manufacturer






Electric Motors







































Frame 444/5T
Output 150 HP (110 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 170 A
L. R. Amperes 1122 A
LRC 6.6x(Code G)
No load current 58.0 A
Rated torque 443 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 48s (cold) 27s (hot)




































Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 1860 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.4
95.8
95.8



Power factor















50% 75% 100%

0.74
0.82
0.85









































Frame 444/5T
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 170 A
L. R. Amperes 1190 A
LRC 7.0x(Code G)
No load current 58.0 A
Rated torque 444 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)




































Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1860 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.1
95.5
95.3



Power factor















50% 75% 100%

0.73
0.83
0.86









































Frame 444/5T
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 163 A
L. R. Amperes 1127 A
LRC 6.9x(Code G)
No load current 61.2 A
Rated torque 444 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)




































Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1860 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.1
95.5
95.3



Power factor















50% 75% 100%

0.70
0.81
0.85









































Frame 444/5T
Output 125 HP
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 159 A
L. R. Amperes 1192 A
LRC 7.5x(Code H)
No load current 64.0 A
Rated torque 444 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 32s (cold) 18s (hot)




































Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1860 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.8
95.5
95.5



Power factor















50% 75% 100%

0.68
0.79
0.84









































Frame 444/5T
Output 150 HP (110 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 205 A
L. R. Amperes 1189 A
LRC 5.8x(Code F)
No load current 58.0 A
Rated torque 534 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 32s (cold) 18s (hot)




































Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1860 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.4
95.4
95.0



Power factor















50% 75% 100%

0.79
0.85
0.86









































Frame 444/5T
Output 150 HP (110 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 194 A
L. R. Amperes 1125 A
LRC 5.8x(Code F)
No load current 61.2 A
Rated torque 534 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 32s (cold) 18s (hot)




































Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1860 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.4
95.4
95.0



Power factor















50% 75% 100%

0.76
0.83
0.86









































Frame 444/5T
Output 150 HP (110 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 189 A
L. R. Amperes 1191 A
LRC 6.3x(Code G)
No load current 64.0 A
Rated torque 532 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)




































Moment of inertia (J) 66.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1860 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.4
95.4
95.4



Power factor















50% 75% 100%

0.74
0.82
0.85






Features










































Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device With
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector





  • 460VAC
  • Electric Motor
  • 444T
  • 445T
  • TEFC
  • 3-Phase
  • 150HP
  • 1800RPM
  • Crusher
