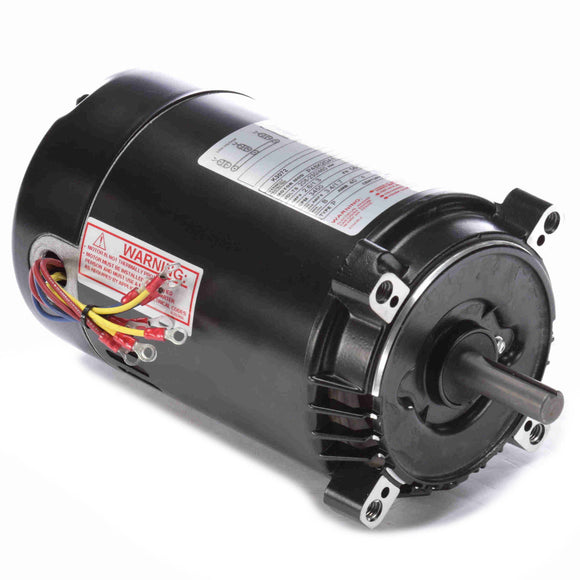

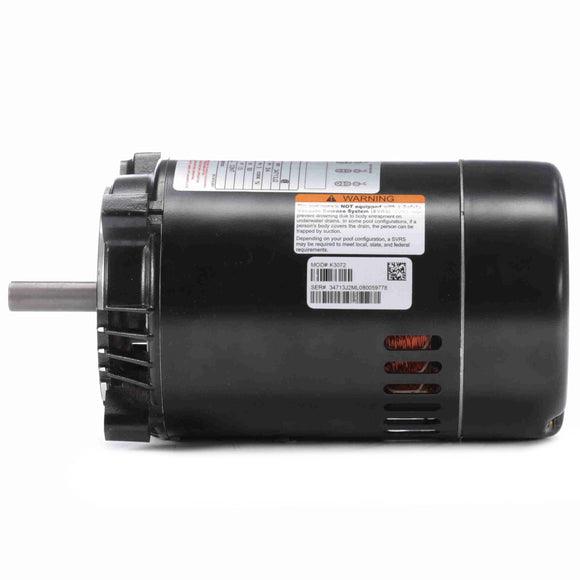

K3072 Century 3/4HP Pool Pump Electric Motor, 3600RPM

$379.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: K3072 Barcode: 786674026002

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 56C Frame, 208-230VAC 60Hz 3-Phase, P48K2DA1, Rolled Steel, C-Face, Round Body, 5/8" Keyed Shaft

Description Product Specs Manufacturer





Features






  • Open Dripproof

  • Sealed Ball Bearings

  • 40°C Ambient

  • Internal Junction Box

  • Keyed Shaft

  • Stainless Steel Shaft

  • 3 Phase

  • Jet Pump

  • C Face





General Specifications























UPC: 786674026002 Weight: 18.00 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 9.5 IN


Nameplate Specifications























































Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 2.6/1.3 A Speed: 3450 rpm
Service Factor: 1.5 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: None Ambient Temperature: 40 °C
UL: No CSA: Y


Technical Specifications















































Electrical Type: Polyphase Poles: 2
Rotation: Reversible Mounting: C Face
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.19 in
Frame Length: 5.75 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in


  • Electric Motor
  • 56C
  • ODP
  • 3-Phase
  • 3/4HP
  • 3600RPM

Century Electric Motor (Regal Rexnord)
