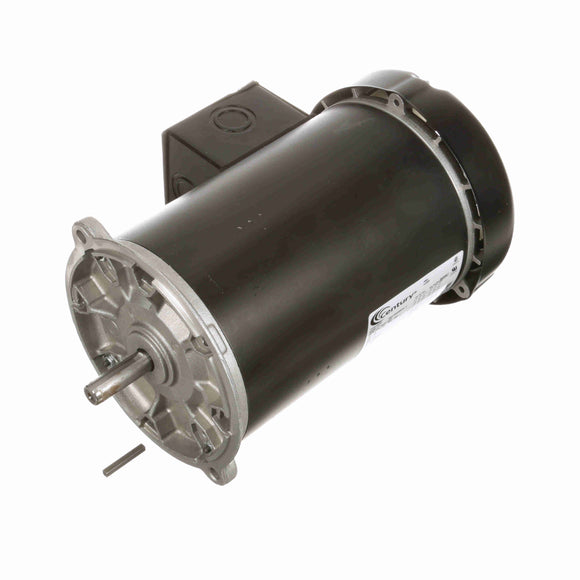

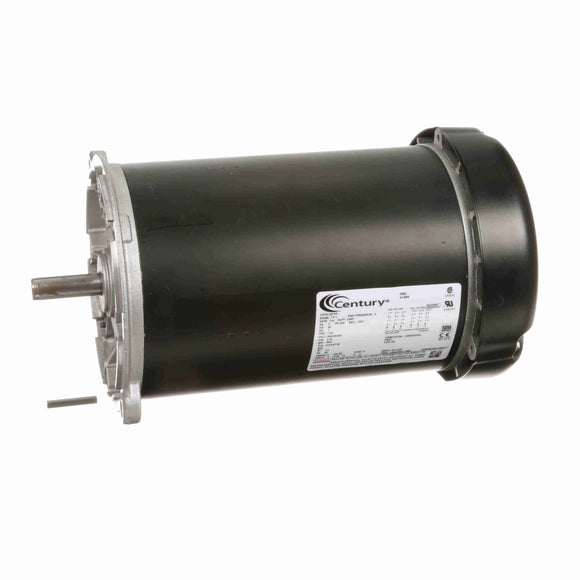

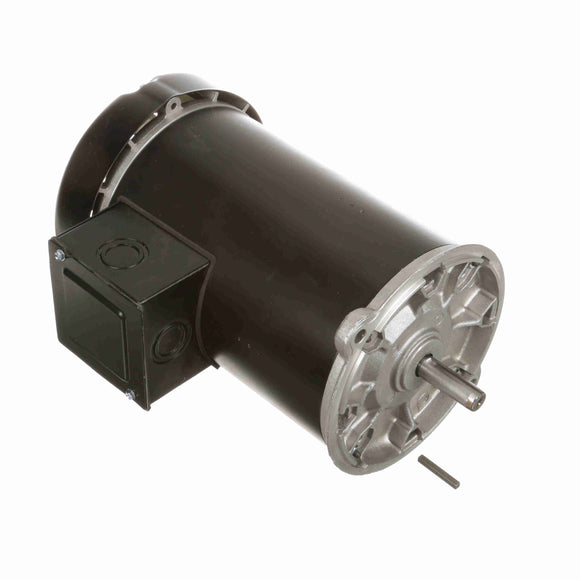

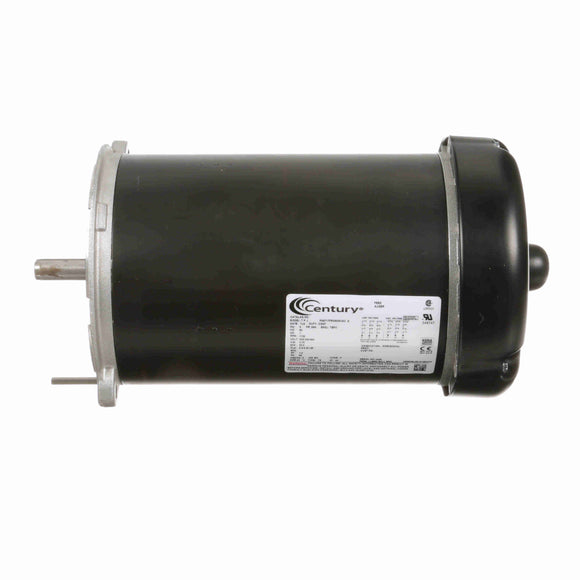

C348ES Century 1HP Auger Drive Electric Motor, 1800RPM

$889.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: C348ES Barcode: 786674073631

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56N Frame, 230/460VAC 60Hz 3-Phase, Rolled Steel, Round Body, 5/8" Keyed Shaft

Description Product Specs Manufacturer





Features






  • High starting torque

  • Manual reset thermal protector

  • Torque switch and governor





General Specifications























UPC: 786674073631 Weight: 45.00 LB
Packaged Length: 16.2 IN Packaged Width: 10.25 IN
Packaged Height: 8.12 IN


Nameplate Specifications



























































Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 3.3-3.3/1.65 A Speed: 1725 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56N Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y


Technical Specifications















































Electrical Type: Polyphase Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.30 in
Frame Length: 8.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.96 in


  • Electric Motor
  • 56N
  • TEFC
  • 3-Phase
  • 1HP
  • 1800RPM
  • Auger Drive

Century Electric Motor (Regal Rexnord)
