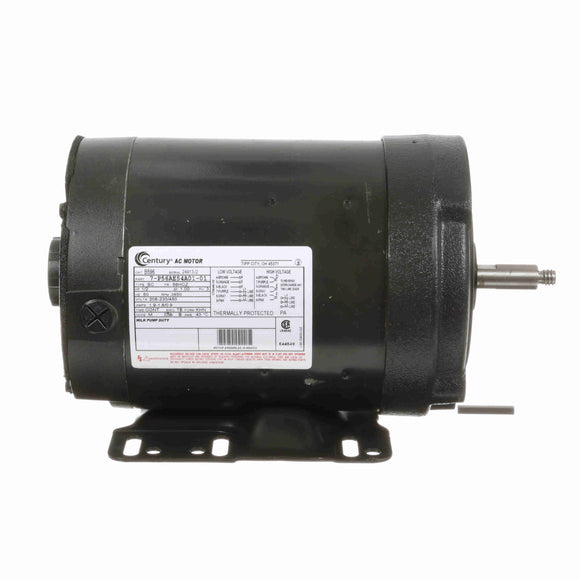

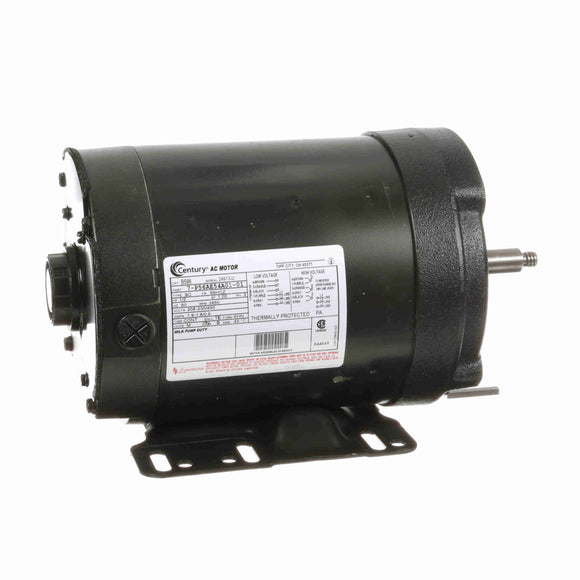

B596 Century 1/2HP Milk Pump Duty Electric Motor, 3600RPM

$129.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: B596 Barcode: 786674060570

30 Day
Return Policy

Ships Fast
in 24 hours

TENV, 56HCZ Frame, 208-230/460VAC 60Hz 3-Phase, 7-P56AE54A01-01, Rolled Steel, Rigid Base, 1/2" Threaded Shaft

Description Product Specs Manufacturer





Features






  • Weatherproof features for washdown

  • Cast iron NEMA "C" end bracket

  • Stainless steel shaft

  • Auto overload protector

  • ACME right hand threads





General Specifications























UPC: 786674060570 Weight: 26.00 LB
Packaged Length: 15.5 IN Packaged Width: 10.5 IN
Packaged Height: 10 IN


Nameplate Specifications



























































Output HP: 1/2 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 1.9-1.8/0.9 A Speed: 3450 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56HCZ Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N


Technical Specifications















































Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Clockwise/Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 11.93 in
Frame Length: 5.75 in Shaft Diameter: 0.500 in
Shaft Extension: 2.30 in


  • 208VAC
  • 230VAC
  • 460VAC
  • Electric Motor
  • 56HCZ
  • TENV
  • 3-Phase
  • 1/2HP
  • 3600RPM

Century Electric Motor (Regal Rexnord)
