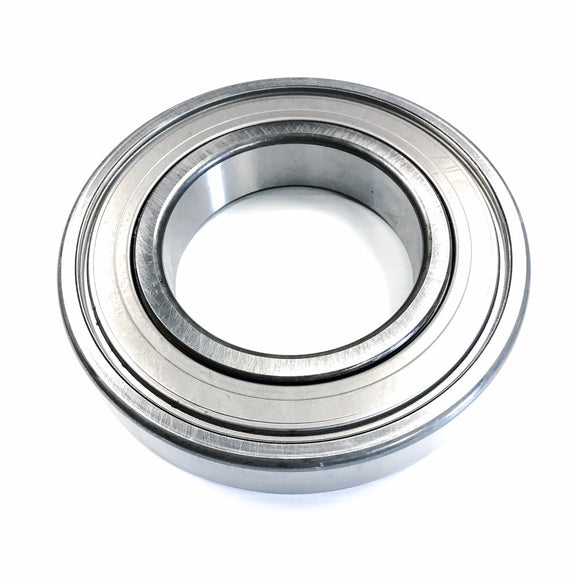

6316ZZC3 Koyo Ball Bearing, Double Shielded

$234.17 USD

Shipping calculated at checkout

JTEKT Corporation SKU: 6316-ZZC3 Barcode: 4549250175084

30 Day
Return Policy

Ships Fast
in 24 hours

3

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6316ZZC3
Group Deep Groove Ball Bearings

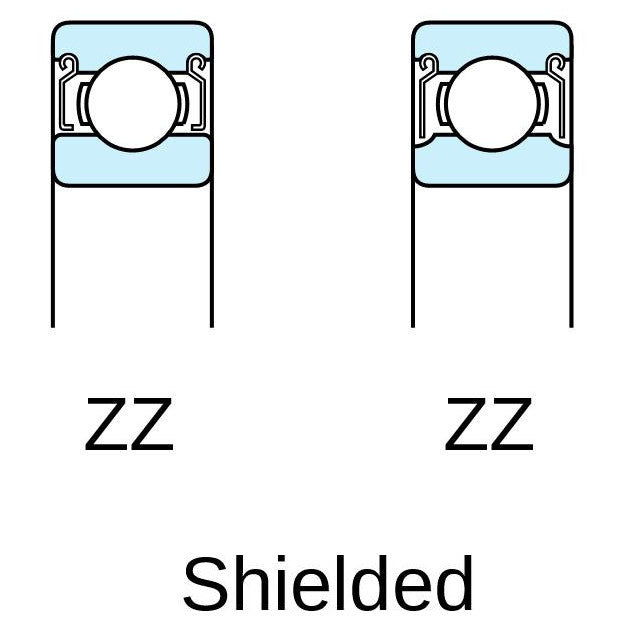

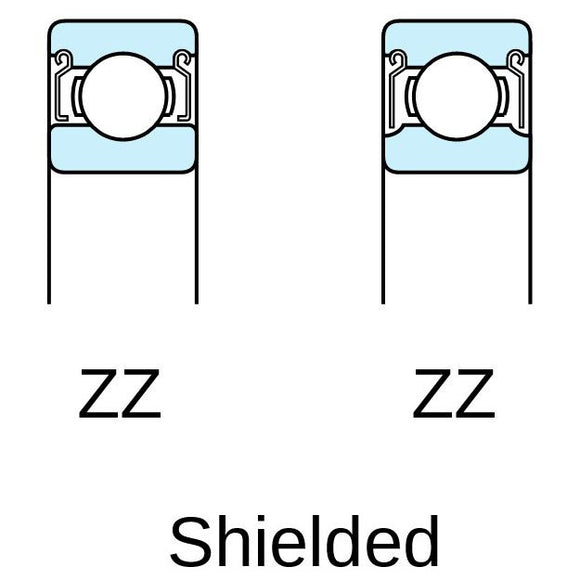

Type Shielded (ZZ)
Bore / Inside Diameter (d) 80 mm
Housing / Outside Diameter (D) 170 mm
Width (B) 39 mm
Minimum Radius (r) 2.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 123.0 kN
C0r 86.7 kN
Fatigue Load Limit (Cu) 5.85 kN
Factor (f0) 13.3
Limiting Speeds (Grease Lubrication) 3,900 min-1
Shaft Shoulder Mounting Dimension (da) 91 mm Minimum
105 mm Maximum
Housing Shoulder Mounting Dimension (Da) 159 mm Maximum
Shoulder Radius (ra) 2 mm Maximum
Mass 3.59 kg
7.92 lbs
UPC 4549250175084
Country of Manufacture Japan
