6315ZZC3 Koyo Ball Bearing, Shielded-1
6315ZZC3 Koyo Ball Bearing, Shielded-2
6315ZZC3 Koyo Ball Bearing, Shielded-3
6315ZZC3 Koyo Ball Bearing, Shielded-4
6315ZZC3 Koyo Ball Bearing, Shielded-5

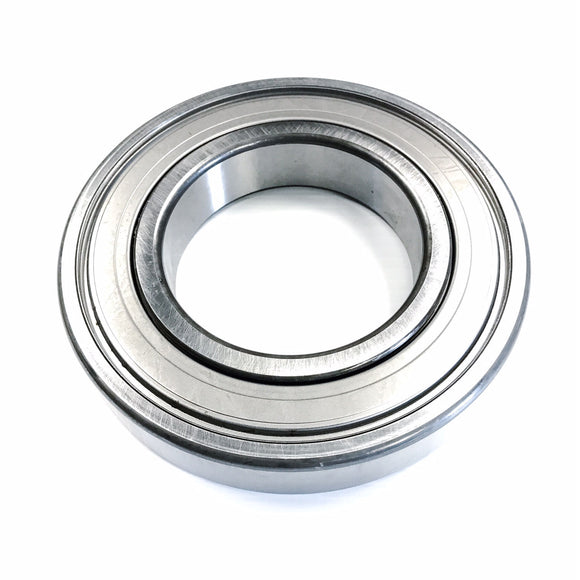

6315ZZC3 Koyo Ball Bearing, Shielded

$175.26 USD

Shipping calculated at checkout

JTEKT Corporation SKU: 6315-ZZC3 Barcode: 4549250174728

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6315ZZC3
Group Deep Groove Ball Bearings

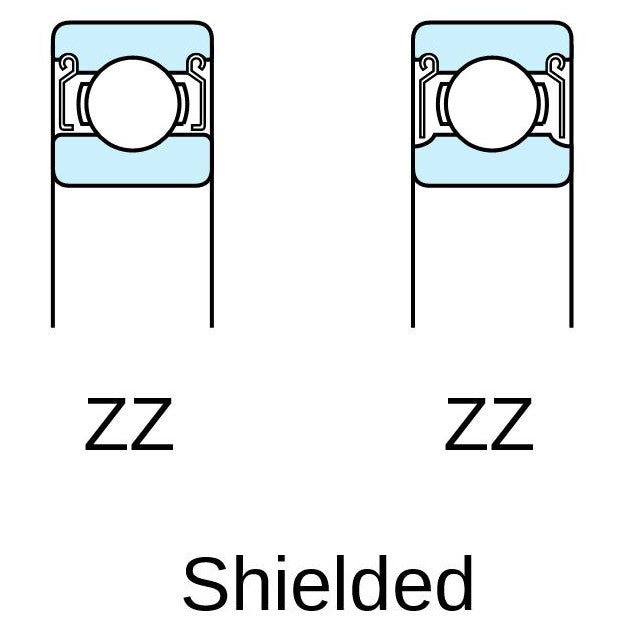

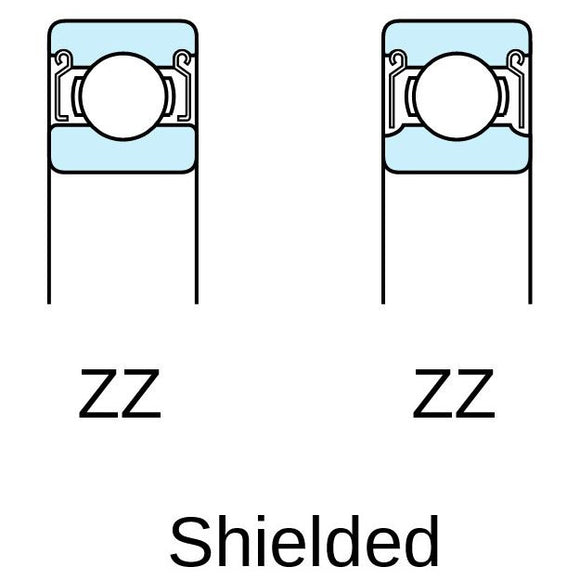

Type Shielded (ZZ)
Bore / Inside Diameter (d) 75 mm
Housing / Outside Diameter (D) 160 mm
Width (B) 37 mm
Minimum Radius (r) 2.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 113 kN
C0r 77.2 kN
Fatigue Load Limit (Cu) 5.40 kN
Factor (f0) 13.2
Limiting Speeds (Grease Lubrication) 4,200 min-1

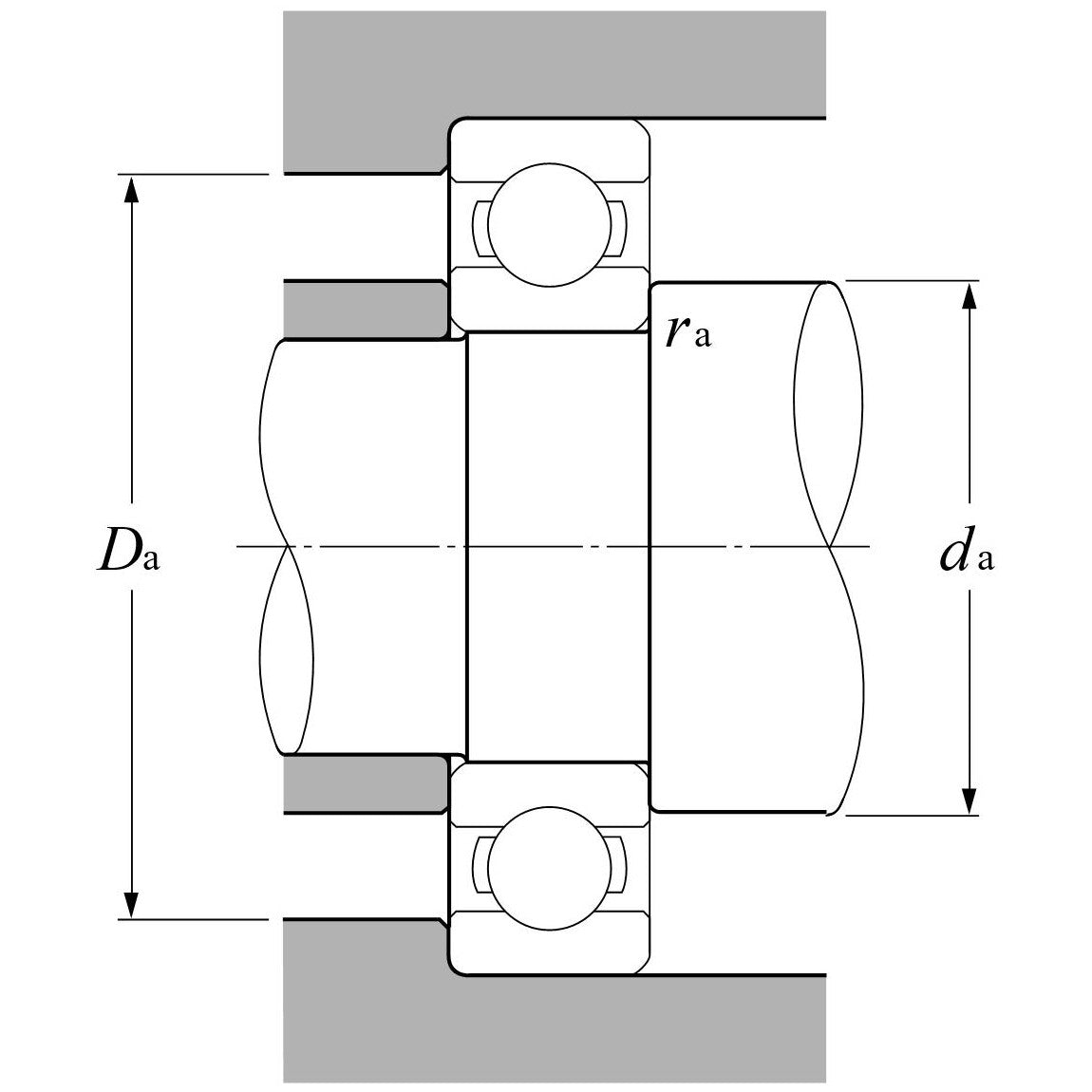

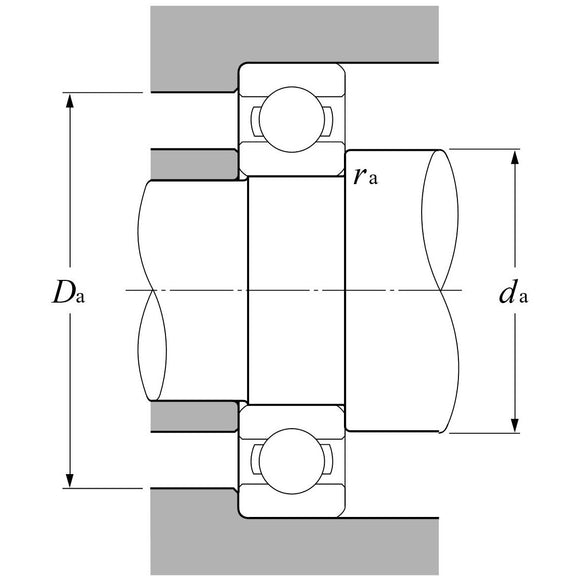

Shaft Shoulder Mounting Dimension (da) 86 mm Minimum
97.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 149 mm Maximum
Shoulder Radius (ra) 2 mm Maximum
Mass 3.02 kg
6.67 lbs
UPC 4549250174728
Country of Manufacture Japan
