63172RSC3 Koyo Ball Bearing, Rubber Sealed-1
63172RSC3 Koyo Ball Bearing, Rubber Sealed-2

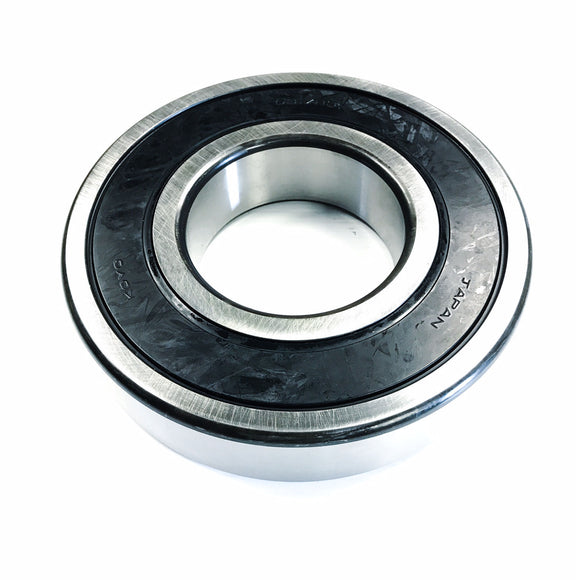

63172RSC3 Koyo Ball Bearing, Rubber Sealed

$271.21

Shipping calculated at checkout

JTEKT Corporation SKU: 6317-2RS

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 63172RSC3
Group Deep Groove Ball Bearings
Type Contact Sealed (2RS)
Bore / Inside Diameter (d) 85 mm
Housing / Outside Diameter (D) 180 mm
Width (B) 41 mm
Minimum Radius (r) 3 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 133 kN
C0r 96.8 kN
Fatigue Load Limit (Cu) 6.35 kN
Factor (f0) 13.3
Limiting Speeds (Grease Lubrication) 2,500 min-1
Shaft Shoulder Mounting Dimension (da) 98 mm Minimum
111 mm Maximum
Housing Shoulder Mounting Dimension (Da) 167 mm Maximum
Shoulder Radius (ra) 2.5 mm Maximum
Mass 4.23 kg
9.33 lbs
UPC
Country of Manufacture Japan
