Specifications
| Brand | Koyo Seiko Company, LTD |
|---|---|
| Manufacturer Part Number | 63032RDC3 |
| Group | Deep Groove Ball Bearings |

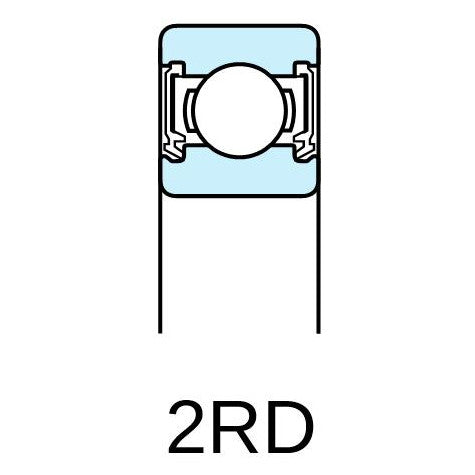

| Type | Extremely Light Contact Sealed (2RD) |

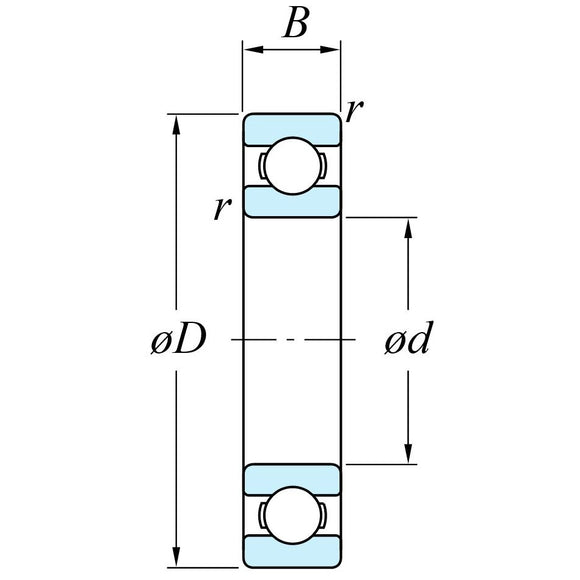

| Bore / Inside Diameter (d) | 17 mm |
| Housing / Outside Diameter (D) | 47 mm |
| Width (B) | 14 mm |
| Minimum Radius (r) | 1 mm |
| Operating Temperature | -30 to 110°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Tolerances | JIS B 1514 |
| Allowable Misalignment | .002 3 - .003 4 rad ( 8’ - 12’ ) |
| Basic Load Rating | Cr 13.6 kN C0r 6.65 kN |
| Limiting Speeds (Grease Lubrication) | 14,000 min-1 |
| Mass | 0.115 kg 0.26 lbs |
| UPC | 4549250166877 |
| Country of Manufacture | Japan |
