Specifications
| Brand | Koyo Seiko Company, LTD |
|---|---|
| Manufacturer Part Number | 63022RSC3 |
| Group | Deep Groove Ball Bearings |
| Type | Contact Sealed (2RS) |
| Bore / Inside Diameter (d) | 15 mm |
| Housing / Outside Diameter (D) | 42 mm |
| Width (B) | 13 mm |
| Minimum Radius (r) | 1 mm |
| Operating Temperature | -30 to 110°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Tolerances | JIS B 1514 |
| Allowable Misalignment | .002 3 - .003 4 rad ( 8’ - 12’ ) |
| Basic Load Rating | Cr 11.4 kN C0r 5.45 kN |
| Fatigue Load Limit (Cu) | 0.460 kN |
| Factor (f0) | 12.3 |
| Limiting Speeds (Grease Lubrication) | 15,000 min-1 |

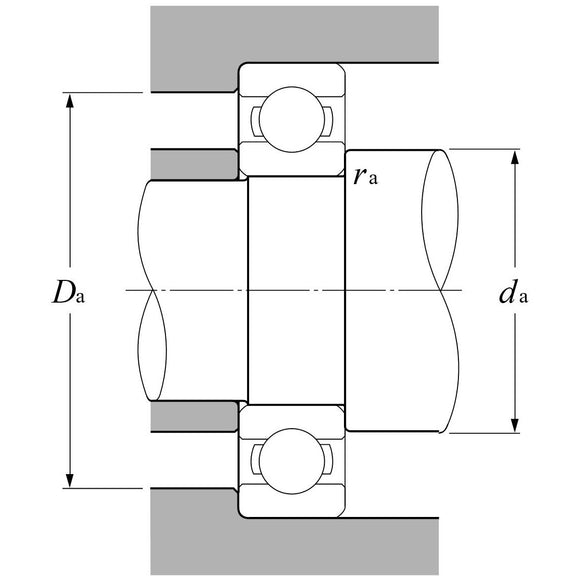

| Shaft Shoulder Mounting Dimension (da) | 20 mm Minimum 21.5 mm Maximum |
| Housing Shoulder Mounting Dimension (Da) | 37 mm Maximum |
| Shoulder Radius (ra) | 1 mm Maximum |
| Mass | 0.082 kg 0.18 lbs |
| UPC | 4549250166501 |
| Country of Manufacture | Japan |
