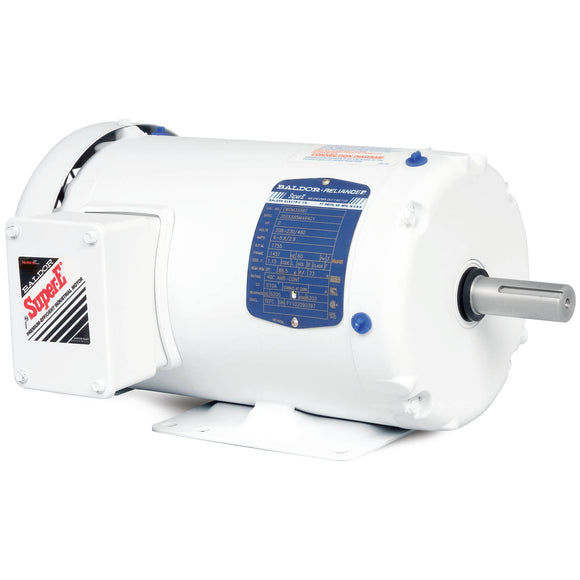

EWDM3714T Baldor 10HP Washdown Electric Motor, 1800 RPM

$2,614.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EWDM3714T Barcode: 781568457580

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 215T Frame, 230/460V 3-Phase 60Hz, 3738M

Description Product Specs Manufacturer

Specifications

Specs

Output10.000 hp
Phase3
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage230 V
460 V
Frame MaterialSteel
Frame215T
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current24.0 A @ 230 V
12.0 A @ 460 V
Design CodeA
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load91.7%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps12.0 A
Insulation ClassF
Inverter CodeInverter ready
KVA CodeK
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 14 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3752M
Number of Poles4
Overall Length20.54 in
Power Factor85
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter1.375 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Speed1,770 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

Features

Nameplate

Nameplate

CAT.NO. EWDM3714T
SPEC. 37H451S518G1
HP 10
VOLTS 230/460
AMP 24/12
RPM 1770
FRAME 215T HZ 60 PH 3
SER.F. 1.15 CODE K DES A CLASS F
NEMA-NOM-EFF 91.7 PF 85
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6307 ODE 6206
ENCL TEFC SN
BLANK
NP1669L

Performance

Performance

Performance at 460 V, 60 Hz, 10 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C0.937 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load63° C
Temp. Rise @ S.F. Load77° C
Start ConfigurationDOL
Break-Down Torque134 LB-FT
Pull-Up Torque49.2 LB-FT
Locked-Rotor Torque68.7 LB-FT
Starting Current103 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 5.0 42.0 64.0 76.0 82.0 86.0 88.0 84.0
Efficiency 0.0 88.6 92.4 92.7 92.0 90.8 88.9 91.3
Speed (RPM) 1,799 1,794 1,787 1,780 1,772 1,763 1,753 1,767
Line Amps 5.49 6.14 7.80 9.90 12.30 15.00 17.90 13.90
