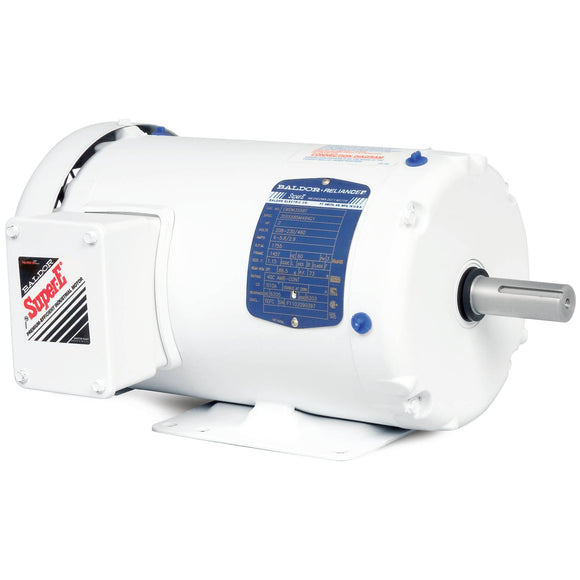

EWDM23933T Baldor 15HP Washdown Electric Motor, 1765RPM

$5,639.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EWDM23933T Barcode: 781568746332

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 254T Frame, 230/460V 3-Phase 60Hz, 3756M

Description Product Specs Manufacturer

Specifications

Specs

Output15.000 hp
Phase3
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage230 V
460 V
Frame MaterialSteel
Frame254T
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current36.0 A @ 208 V
36.0 A @ 230 V
18.0 A @ 460 V
Design CodeA
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load92.4%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps18.0 A
Insulation ClassF
Inverter CodeInverter ready
KVA CodeH
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 12 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3942M
Number of Poles4
Overall Length23.57 in
Power Factor84
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.15
Shaft Diameter1.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Speed1,765 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

Features

Nameplate

Nameplate

CAT.NO. EWDM23933T
SPEC. 39J010W595G3
HP 15
VOLTS 230/460
AMP 36/18
RPM 1765
FRAME 254T HZ 60 PH 3
SER.F. 1.15 CODE H DES A CLASS F
NEMA-NOM-EFF 92.4 PF 84
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 36
DE 6309 ODE 6208
ENCL TEFC SN
BLANK
NP1669L

Performance

Performance

Performance at 460 V, 60 Hz, 15 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C0.577 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load60° C
Temp. Rise @ S.F. Load72° C
Start ConfigurationDOL
Break-Down Torque143 LB-FT
Pull-Up Torque75 LB-FT
Locked-Rotor Torque88 LB-FT
Starting Current125 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 8.0 49.0 71.0 81.0 86.0 88.0 89.0 87.0
Efficiency 0.0 87.9 92.1 93.0 92.8 92.3 91.5 92.5
Speed (RPM) 1,799 1,792 1,784 1,776 1,766 1,759 1,750 1,762
Line Amps 6.95 7.90 10.50 13.70 17.20 21.00 25.00 19.50

Performance Curves

  • 230VAC
  • 460VAC
  • Electric Motor
  • 254T
  • TEFC
  • 3-Phase
  • 15HP
  • 1765RPM
  • White
