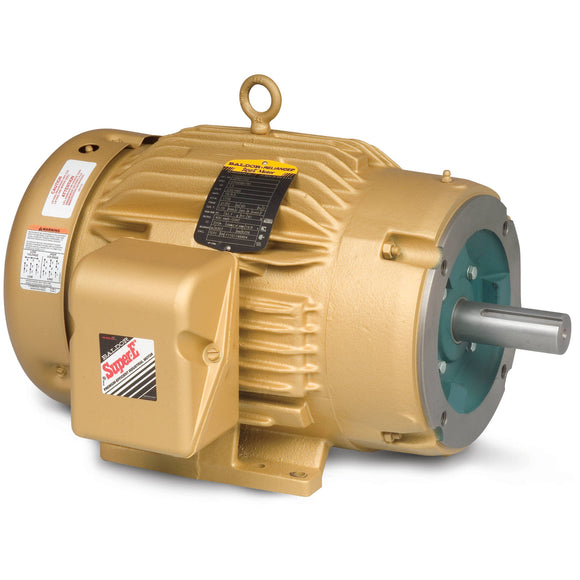

CEM4110T Baldor 40HP Electric Motor, 1775RPM

$7,411.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CEM4110T Barcode: 781568435526

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 324TC Frame, 230/460VAC 60Hz 3 Phase, 1254M, Cast Iron Frame, Rigid Base, C-Face, 2-1/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Catalog NumberCEM4110T
EnclosureTEFC
Frame324TC
Frame MaterialIron
Frequency60.00 Hz
Output @ Frequency40.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and GroupNone
XP DivisionNot Applicable
Agency ApprovalsUR
CSA EEV
CSA
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage102.000 A @ 208.0 V
48.000 A @ 460.0 V
96.000 A @ 230.0 V
Design CodeA
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load94.1 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps48.0 a
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassF
Inverter CodeInverter Ready
KVA CodeH
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size9 @ 8 AWG
Motor Type1254M
Mounting ArrangementF1
Number of Poles4
Overall Length30.28 IN
Power Factor82
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter2.125 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Speed1775 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

Features

Nameplate

Nameplate

CAT.NO. CEM4110T CUST. P/N ENCL TEFC
SPEC. 12C052Y276G1 CC 010A FRAME 324TC SER.NO.
HP 40 CLASS F HZ 60
R.P.M. 1775 PH. 3 DES. A
VOLTS 230/460 CODE H ODE BRG 6311 DE BRG 6312
AMPS 96/48 USABLE AT 208V 102
RATING 40C AMB-CONT NEMA NOM. EFF. 94.1 GREASE POLYREX EM
P.F. 82 SER.F. 1.15 CT6-60H(10:1)VT3-60H(20:1
USABLE AT 50Hz 40HP 190/380V 114/57A SF1.0
VOLTS AMPS MAX. SPACE HEATER TEMP.
NP3443LUA

Performance

Performance

Performance at 460 V, 60 Hz, 40 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C0.139 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load54° C
Temp. Rise @ S.F. Load66° C
Start ConfigurationDOL
Break-Down Torque396 LB-FT
Pull-Up Torque198 LB-FT
Locked-Rotor Torque222 LB-FT
Starting Current347 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 5.0 45.0 67.0 77.0 82.0 84.0 85.0 83.0
Efficiency 0.0 89.8 93.4 94.1 94.4 93.9 93.1 94.1
Speed (RPM) 1,799 1,794 1,788 1,783 1,777 1,771 1,765 1,773
Line Amps 21.03 23.93 30.40 39.12 48.68 59.71 71.22 55.30
