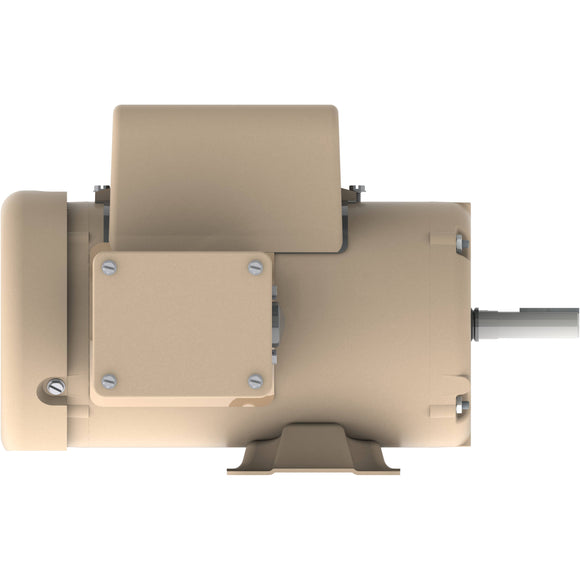

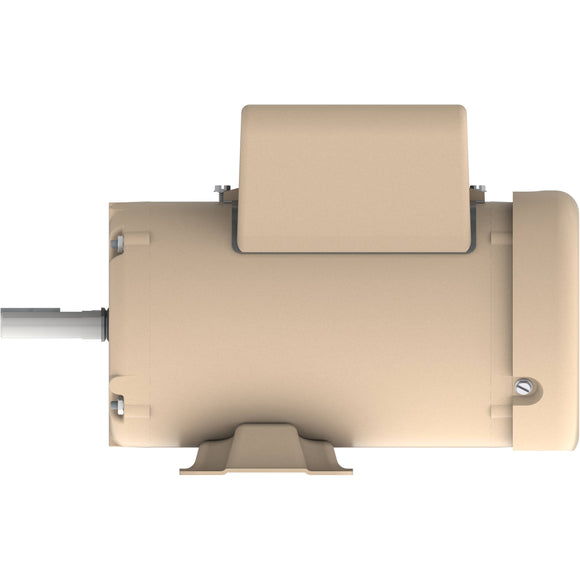

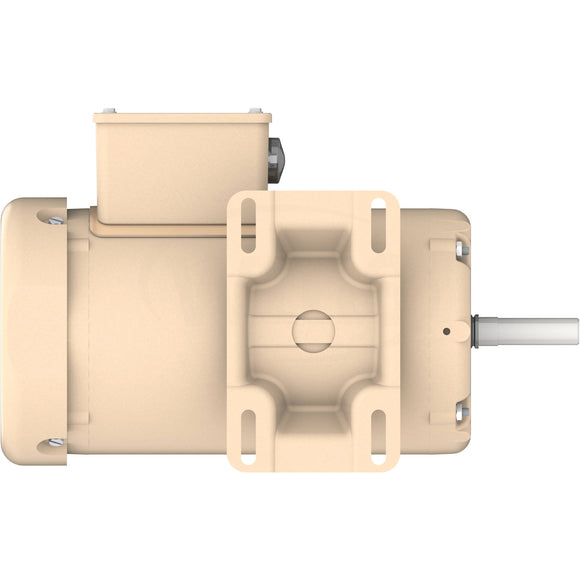

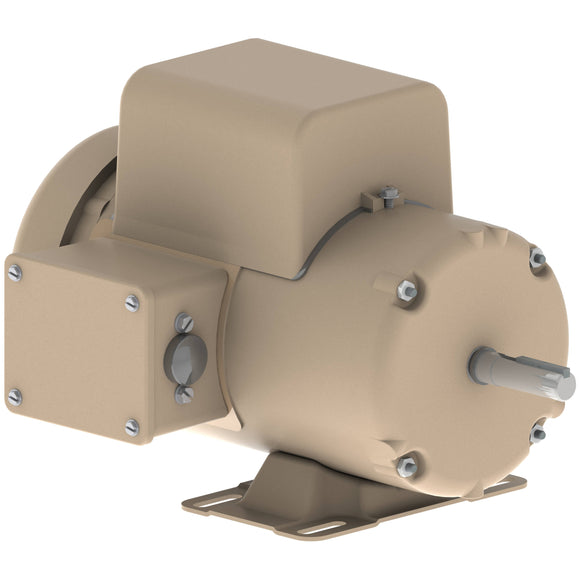

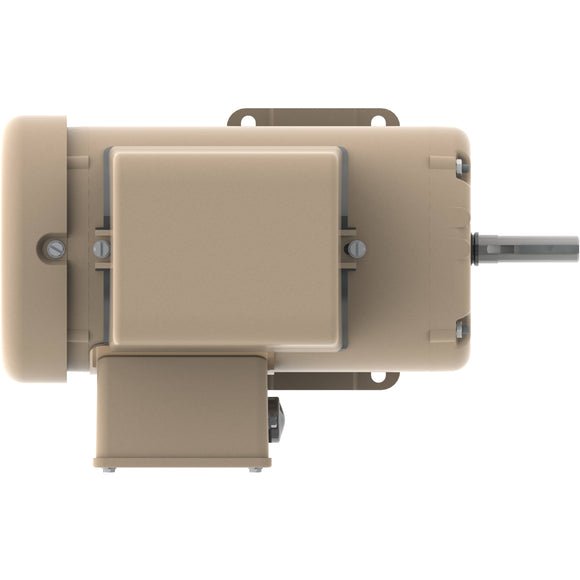

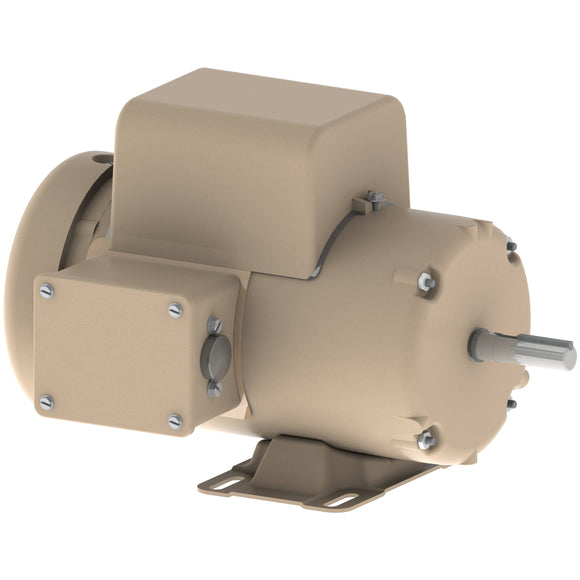

FDL3507M Baldor 3/4HP Farm/Agriculture Duty Electric Motor, 1725 RPM

$489.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: FDL3507M Barcode: 781568121863

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56 Frame, 115/230VAC 60Hz Single Phase, 34M367W937, Foot Mounted, Rolled Steel, 5/8" Keyed Shaft

4 In Stock!

Description Product Specs Manufacturer

Specifications

Specs

Catalog NumberFDL3507M
Product Complexity LevelStandard
EnclosureTEFC
Frame56
Frame MaterialSteel
Frequency60.00 Hz
Output @ Frequency.750 HP @ 60 HZ
Phase1
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency115.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and GroupNone
XP DivisionNot Applicable
Agency ApprovalsUR
CSA
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage4.400 A @ 230.0 V
8.800 A @ 115.0 V
Design CodeN
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load74.0 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps4.4 a
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassB
Inverter CodeNot Inverter
KVA CodeM
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size6 @ 18 AWG
Motor Type3432LC
Mounting ArrangementF1
Number of Poles4
Overall Length13.35 IN
Power Factor75
Product FamilyGeneral Purpose
Product TypeFARM DUTY
Pulley End Bearing TypeSealed Bearing
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusROHS COMPLIANT
Service Factor1.25
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Speed1725 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1Manual Thermal Overload
Winding Thermal 1 LocationKO
Winding Thermal 2None

Applications

  • Wide variety of agri-duty and industrial applications

Features

  • Sealed ball bearings
  • Lubricated with high temperature moisture resistant grease
  • Drive end seal and v-ring slinger to prevent moisture and contaminant ingress
  • Condensation drains
  • Gasketed cast conduit boxes
  • Epoxy paint protects motor from harsh environments

Nameplate

Nameplate

CAT.NO. FDL3507M
SPEC. 34M367W937
HP .75
VOLTS 115/230
AMP 8.8/4.4
RPM 1725
FRAME 56 HZ 60 PH 1
SER.F. 1.25 CODE M DES N CL B
NEMA-NOM-EFF 74 PF 75
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6203 ODE 6203
ENCL TEFC SN
SFA 10.2/5.1
NP1280L

Performance

Performance

Performance at 230 V, 60 Hz, 0.75 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C2.35 Ohms A Ph / 1.76 Ohms B Ph
Temp. Rise @ Rated Load59° C
Temp. Rise @ S.F. Load74° C
Start ConfigurationDOL
Break-Down Torque7 LB-FT
Pull-Up Torque6.5 LB-FT
Locked-Rotor Torque10.2 LB-FT
Starting Current35 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 20.0 38.0 53.0 66.0 74.0 80.0 84.0 0.0
Efficiency 0.0 50.7 66.0 72.9 74.9 75.1 74.1 0.0
Speed (RPM) 1,798 1,787 1,775 1,761 1,750 1,733 1,715 0
Line Amps 3.20 3.30 3.50 3.90 4.40 5.10 5.90 5.10

Performance Curves

  • 115VAC
  • 230VAC
  • Electric Motor
  • 56
  • TEFC
  • Single Phase
  • 3/4HP
  • 1725RPM

Baldor Electric Company
