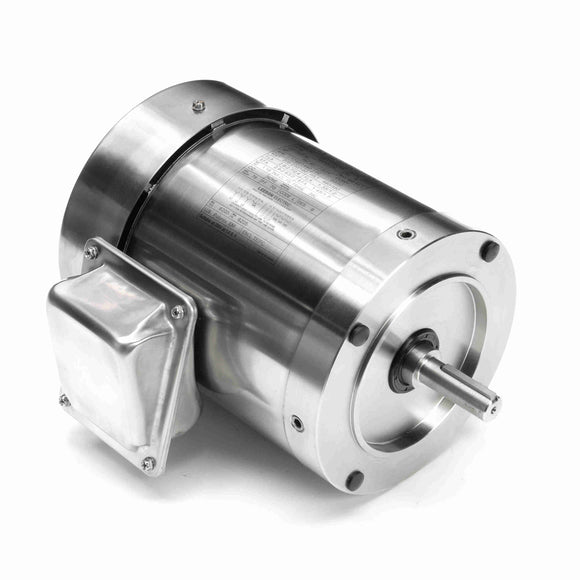

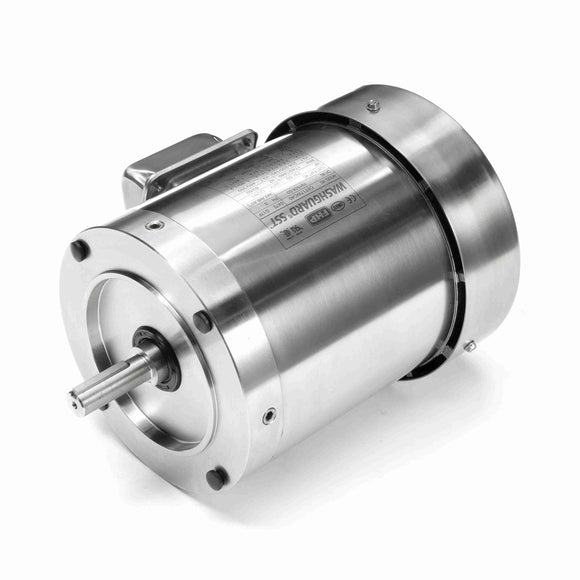

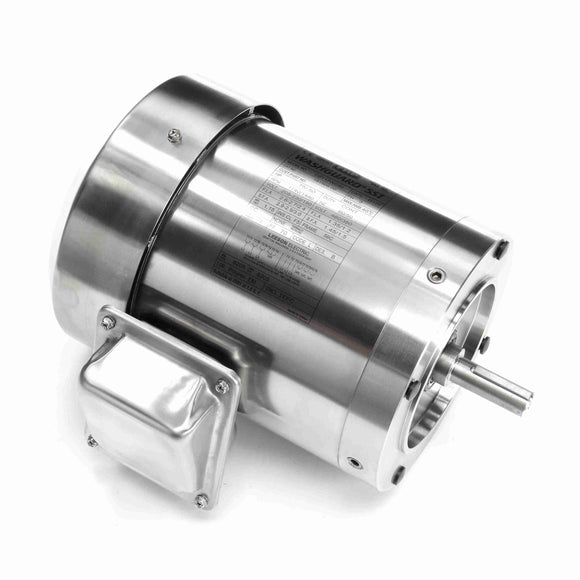

191508.00 Leeson 3/4HP Stainless Steel Electric Motor, Washdown Duty

$1,306.90 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 191508.00 Barcode: 691720052839

30 Day
Return Policy

Ships Fast
in 24 hours

1800 RPM, 56C Frame, TEFC, 3 Phase, 230/460VAC

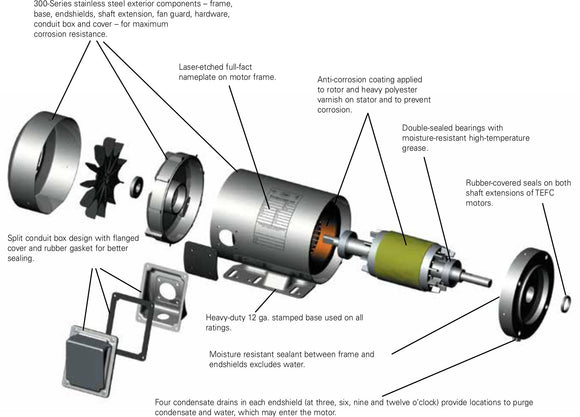

Features




Features


  • Extended Thru-bolts

  • Auto Reset Protectors

  • TEAO designs

  • Laser etched full-fact nameplate on frame

  • All Stainless exterior

  • Anti-corrosion coating applied to interior components






General Specifications





General Specifications






























Model :
C6T17WC40A
Catalog No :
191508.00

Part Description :
3/4 HP 1800RPM 208-230/460 TEFC 3PH 60HZ SS C FACE NO BASE
Category :
Paint Free

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
0.75 HP
Output KW :
0.56 kW

Frequency :
60 Hz
Voltage :
208-230/460 V

Current :
2.4-2.3/1.2 A
Speed :
1740 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
82.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
L
Frame :
56C

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6205

Opp Drive End Bearing Size :
6205
UL :
Recognized

CSA :
Y
CE :
Y

IP Code :
43






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line

Poles :
4
Rotation :
Reversible

Mounting :
Rigid base
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
Stainless Steel
Shaft Type :
T

Overall Length :
11.20 in
Frame Length :
5.49 in

Shaft Diameter :
0.625 in
Shaft Extension :
1.88 in

Assembly/Box Mounting :
F1 ONLY
UPC :
691720052839

Weight :
32.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Locked-Rotor
9.30 0.0 116.00 322.0 0 0.00 0.0 0.75

Break-Down
0.00 0.0 163.00 453.0 0 0.00 0.0 0.75

Full Load
0.00 100.0 36.00 100.0 1,750 0.00 0.0 0.75

Pull-Up
0.00 0.0 113.00 314.0 0 0.00 0.0 0.75





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 0.70

  • 0.078

  • 0.0

  • 14.0

  • 1,798

  • 0.0

  • 0.00





  • 25 %

  • 0.77

  • 0.205

  • 69.7

  • 33.4

  • 1,787

  • 0.0

  • 9.00





  • 50 %

  • 0.87

  • 0.351

  • 80.9

  • 50.6

  • 1,776

  • 0.0

  • 18.00





  • 75 %

  • 1.00

  • 0.503

  • 84.0

  • 63.1

  • 1,763

  • 0.0

  • 27.00





  • 100 %

  • 1.15

  • 0.678

  • 82.6

  • 74.0

  • 1,752

  • 0.0

  • 36.00





  • 125 %

  • 1.32

  • 0.818

  • 84.9

  • 77.8

  • 1,738

  • 0.0

  • 45.00





  • 150 %

  • 1.51

  • 0.980

  • 84.4

  • 81.5

  • 1,724

  • 0.0

  • 54.00
