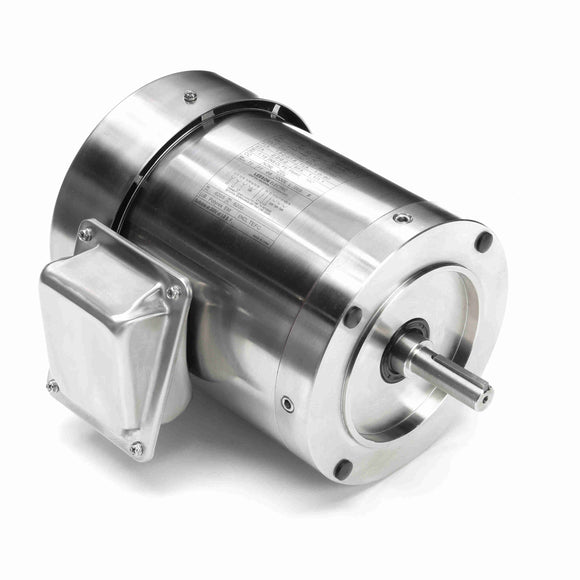

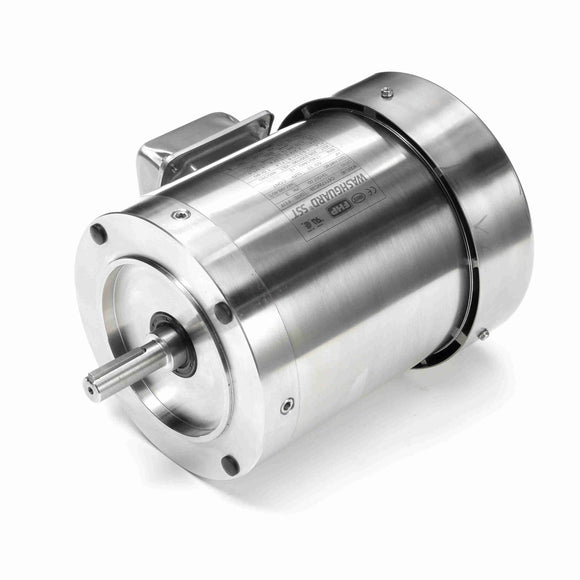

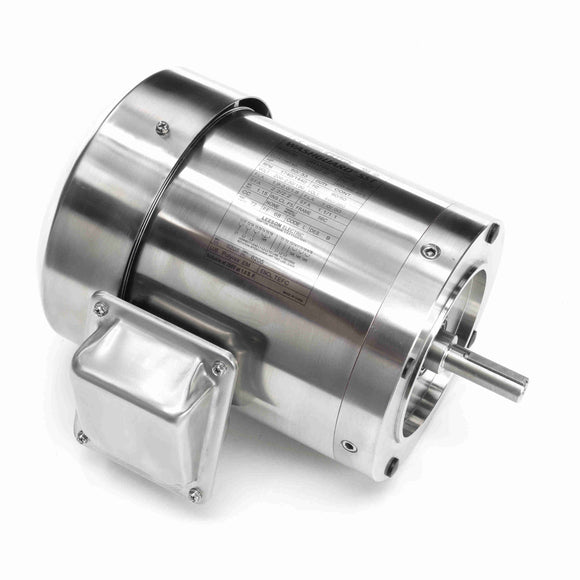

191507.00 Leeson 1/2HP Stainless Steel Electric Motor, Washdown Duty

$1,208.86 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 191507.00 Barcode: 691720052822

30 Day
Return Policy

Ships Fast
in 24 hours

1800 RPM, 56C Frame, TEFC, 3 Phase, 230/460VAC

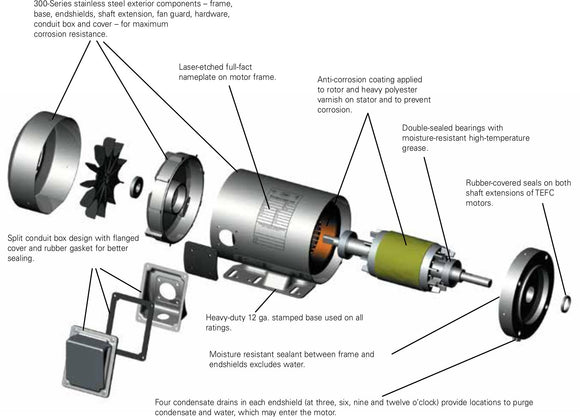

Features




Features


  • Extended Thru-bolts

  • Auto Reset Protectors

  • TEAO designs

  • Laser etched full-fact nameplate on frame

  • All Stainless exterior

  • Anti-corrosion coating applied to interior components






General Specifications





General Specifications






























Model :
C6T17WC39A
Catalog No :
191507.00

Part Description :
1/2 HP 1800 208-230/460 TEFC 3PH 60HZ SS C FACE NO BASE
Category :
Paint Free

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
0.50 HP
Output KW :
0.37 kW

Frequency :
60 Hz
Voltage :
208-230/460 V

Current :
1.9-2.0/1.0 A
Speed :
1740 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
72 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
L
Frame :
56C

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6205

Opp Drive End Bearing Size :
6205
UL :
Recognized

CSA :
Y
CE :
N

IP Code :
43






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Inverter Rated
Starting Method :
Line Or Inverter

Poles :
4
Rotation :
Reversible

Mounting :
Round
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
Stainless Steel
Shaft Type :
NEMA 56

Overall Length :
11.10 in
Frame Length :
5.49 in

Shaft Diameter :
0.625 in
Shaft Extension :
1.87 in

Assembly/Box Mounting :
F1 ONLY
UPC :
691720052822

Weight :
28.00 LB






Speed & Load Characteristics





Speed Characteristics




















































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Pull-Up
0.00 0.0 42.25 176.0 0 0.00 0.0 0.50

Break-Down
0.00 0.0 61.13 254.0 0 0.00 0.0 0.50

Full Load
0.74 100.0 24.07 100.0 1,795 0.45 0.0 0.50





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 0.42

  • 0.040

  • 0.0

  • 0.0

  • 1,795

  • 0.0

  • 0.00





  • 25 %

  • 0.44

  • 0.140

  • 67.0

  • 40.0

  • 1,788

  • 0.0

  • 5.90





  • 50 %

  • 0.52

  • 0.240

  • 78.0

  • 58.0

  • 1,773

  • 0.0

  • 11.70





  • 75 %

  • 0.62

  • 0.340

  • 81.6

  • 69.0

  • 1,759

  • 0.0

  • 17.94





  • 100 %

  • 0.74

  • 0.450

  • 82.6

  • 77.0

  • 1,744

  • 31.3

  • 24.07





  • 125 %

  • 0.87

  • 0.560

  • 82.6

  • 82.0

  • 1,729

  • 0.0

  • 30.45





  • 150 %

  • 1.02

  • 0.680

  • 81.8

  • 84.0

  • 1,713

  • 0.0

  • 36.82
