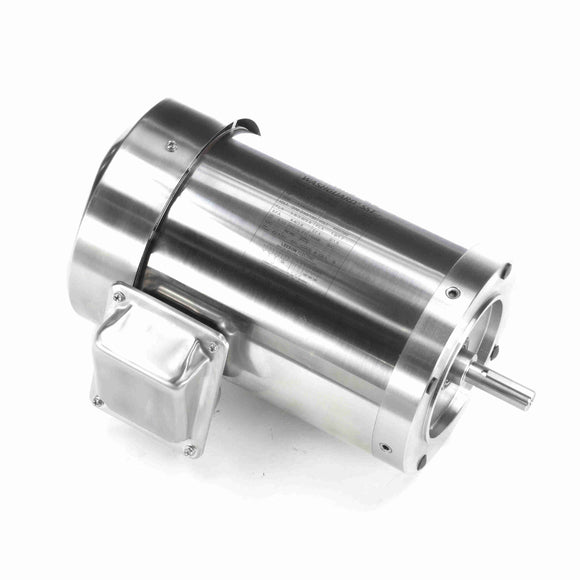

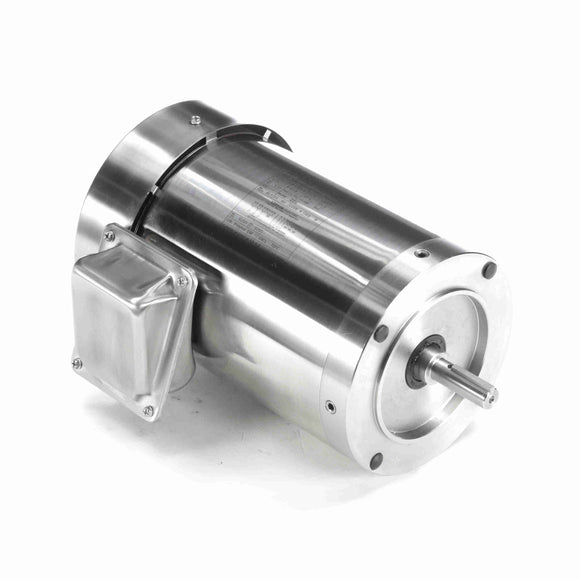

191421.00 Leeson 1HP Electric Stainless Steel Moto

$1,061.65 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 191421.00 Barcode: 691720354810

30 Day
Return Policy

Ships Fast
in 24 hours

1200 RPM, 56C Frame, TEFC, 3 Phase, 230/460V






Features




Features

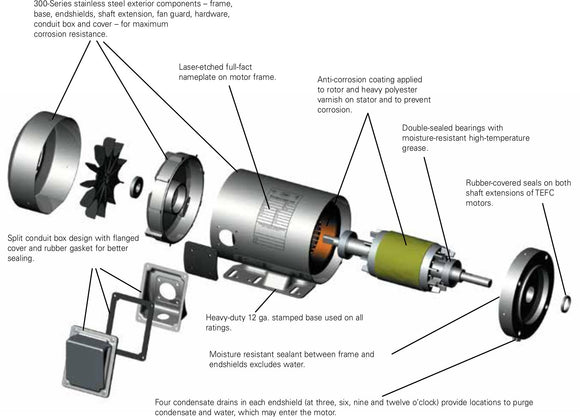

  • Paint free exterior

  • BISSC certified for the Baking Industry

  • Stainless Steel Output shafts

  • Repositional drain plugs for all angle mounting

  • Double Sealed bearings

  • Output shaft seal

  • Inverter Duty IRIS™ insulation system

  • Laser etched full-fact nameplate on frame

  • All Stainless exterior

  • Anti-corrosion coating applied to interior components






General Specifications





General Specifications






























Model :
C6T11NC44A
Catalog No :
191421.00

Part Description :
..1HP..1140/950RPM.56.TEFC.230/460V.3PH.60/50HZ.CONT.40C.1.15SF.C FACE.C6T11NC44A.....General Purpose.NOT.......
Category :
Paint Free

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
1 HP
Output KW :
0.75 kW

Frequency :
60 Hz
Voltage :
208-230/460 V

Current :
3.8-3.8/1.9 A
Speed :
1150 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
82.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
K
Frame :
56C

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6205

Opp Drive End Bearing Size :
6205
UL :
Recognized

CSA :
Y
CE :
Y

IP Code :
43






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line

Poles :
6
Rotation :
Reversible

Mounting :
Round
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
Rolled Steel
Shaft Type :
NEMA 56

Overall Length :
13.10 in
Frame Length :
7.54 in

Shaft Diameter :
0.625 in
Shaft Extension :
1.88 in

Assembly/Box Mounting :
F1 ONLY
UPC :
691720354810

Weight :
47.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Pull-Up
0.00 0.0 12.50 277.0 180 0.00 0.0 1.00

Locked-Rotor
11.40 633.0 12.55 278.0 0 0.00 0.0 1.00

Break-Down
0.00 0.0 17.40 388.0 843 0.00 0.0 1.00

Full Load
1.80 100.0 4.50 100.0 1,158 0.00 0.0 1.00





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 1.30

  • 0.070

  • 0.0

  • 6.8

  • 1,198

  • 0.0

  • 0.00





  • 25 %

  • 1.40

  • 0.264

  • 71.6

  • 23.7

  • 1,189

  • 0.0

  • 1.12





  • 50 %

  • 1.50

  • 0.463

  • 81.5

  • 38.7

  • 1,180

  • 0.0

  • 2.25





  • 75 %

  • 1.60

  • 0.670

  • 86.7

  • 52.6

  • 1,169

  • 0.0

  • 3.50





  • 100 %

  • 1.80

  • 0.888

  • 83.4

  • 61.9

  • 1,158

  • 44.0

  • 4.50





  • 125 %

  • 2.10

  • 1.120

  • 82.0

  • 66.9

  • 1,144

  • 0.0

  • 5.65





  • 150 %

  • 2.40

  • 1.360

  • 79.8

  • 71.1

  • 1,132

  • 0.0

  • 6.75
