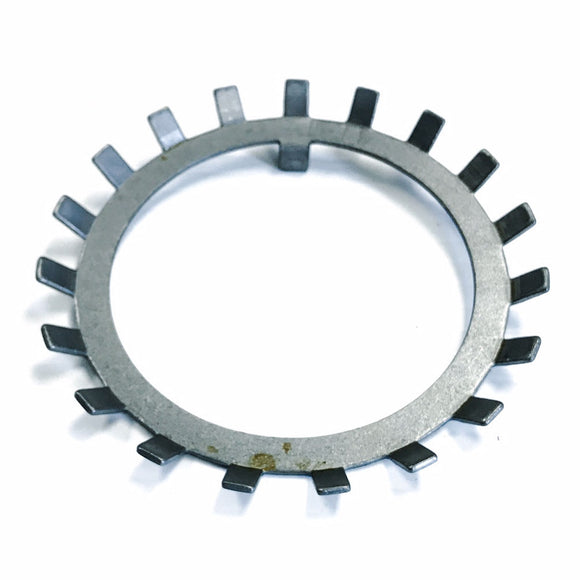

W-15 Bearing Retainer Lock Washer

$1.52

Shipping calculated at checkout

Witmer Motor Service SKU: W-15

30 Day
Return Policy

Ships Fast
in 24 hours

Sold Out

Specifications

Lockwasher Number(s) W-15
W15

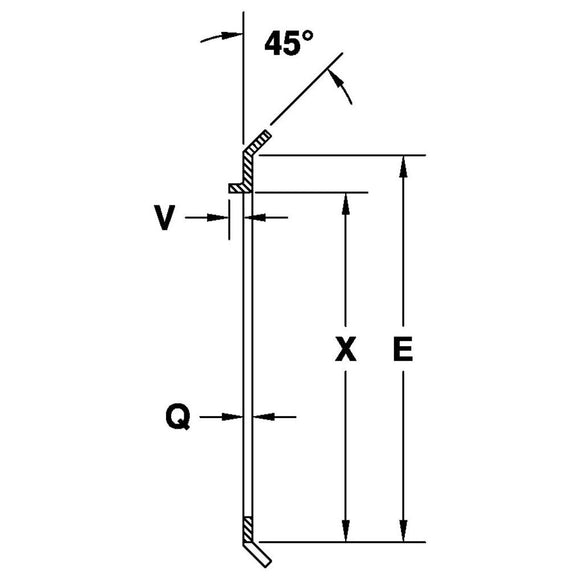

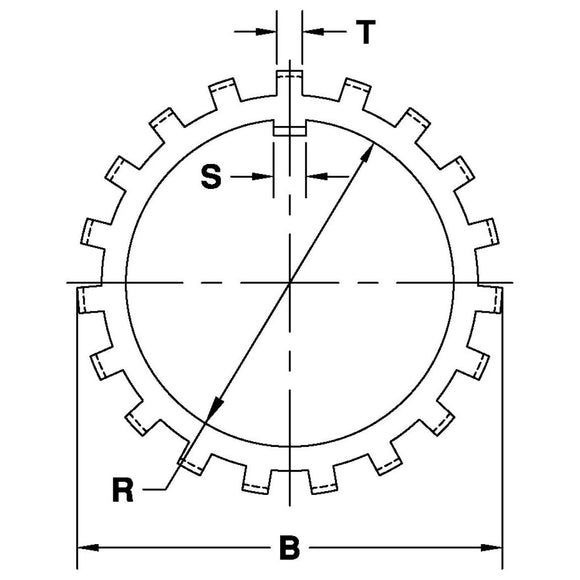

Bore (R) 2.973" Minimum
Face Diameter (E) 3.563" Minimum
Diameter over Tangs (B) 4.109" Maximum
Key Width (S) 0.290" Maximum
Inside Dimension (X) 2.831" Minimum
Number of Tangs 19
Projection (V) 0.188" Minimum
Tang Width (T) 0.328" Maximum
Tang Thickness (Q) 0.062" Minimum
Tang Angle 45°
Applicable Weight 0.10 lbs
Bearing Retainer Nut AN-15
N-15
