Specifications

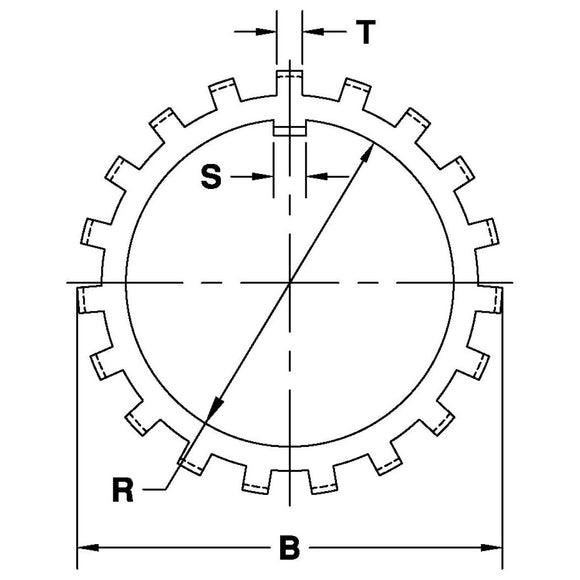

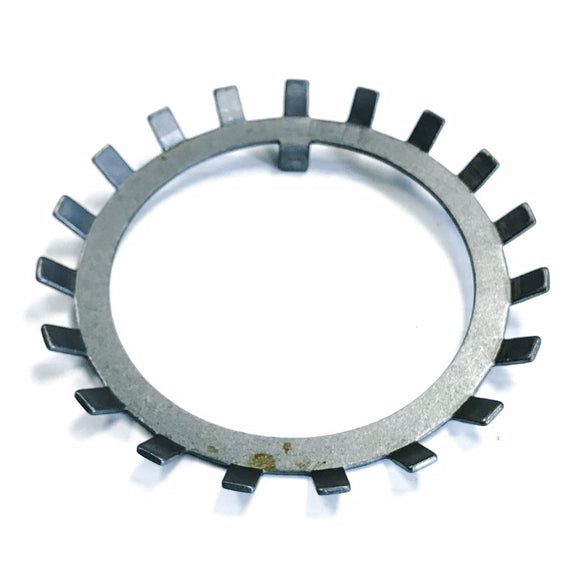

| Lockwasher Number(s) | W-14 W14 |
|---|---|
| Bore (R) | 2.791" Minimum |
| Face Diameter (E) | 3.313" Minimum |
| Diameter over Tangs (B) | 3.828" Maximum |
| Key Width (S) | 0.290" Maximum |
| Inside Dimension (X) | 2.658" Minimum |
| Number of Tangs | 19 |
| Projection (V) | 0.188" Minimum |
| Tang Width (T) | 0.234" Maximum |
| Tang Thickness (Q) | 0.053" Minimum |
| Tang Angle | 45° |
| Applicable Weight | 0.065 lbs |
| Bearing Retainer Nut | N-14 |
