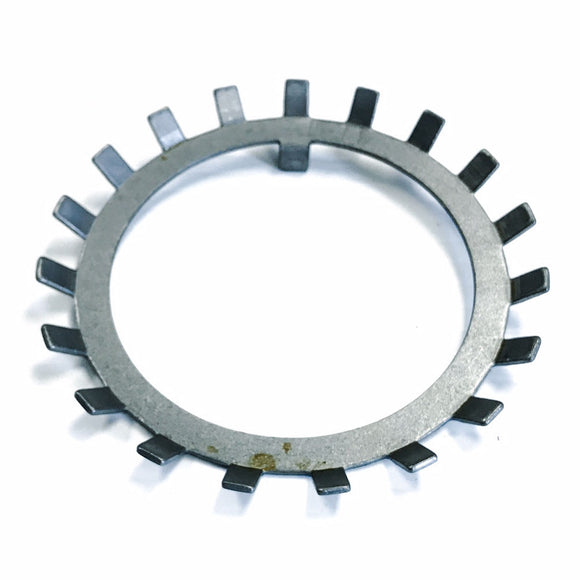

W-10 Bearing Retainer Lock Washer

$2.72 USD

Shipping calculated at checkout

Witmer Motor Service SKU: W-10

30 Day
Return Policy

Ships Fast
in 24 hours

Description Product Specs Manufacturer

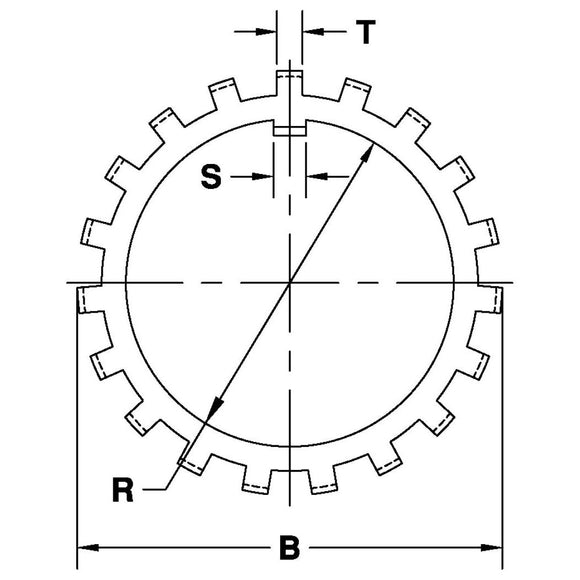

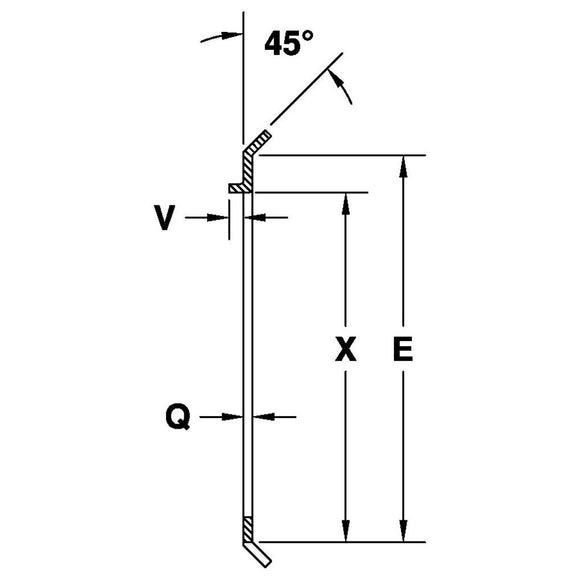

Specifications

Lockwasher Number(s) W-10
W10
Bore (R) 1.992" Minimum
Face Diameter (E) 2.438" Minimum
Diameter over Tangs (B) 2.922" Maximum
Key Width (S) 0.290" Maximum
Inside Dimension (X) 1.884" Minimum
Number of Tangs 17
Projection (V) 0.125" Minimum
Tang Width (T) 0.234" Maximum
Tang Thickness (Q) 0.048" Minimum
Tang Angle 45°
Applicable Weight 0.045 lbs
Bearing Retainer Nut N-10
