Features
Features
- Sealed Switch Design
- UL 1081 Design
- 50°C Ambient
- 304 Bearing Shaft End
- 303 Stainless Steel Shaft
- Threaded Shaft
- Capacitor Start-Capacitor Run
General Specifications
General Specifications
| Model : | UST1072 | Catalog No : | UST1072 |

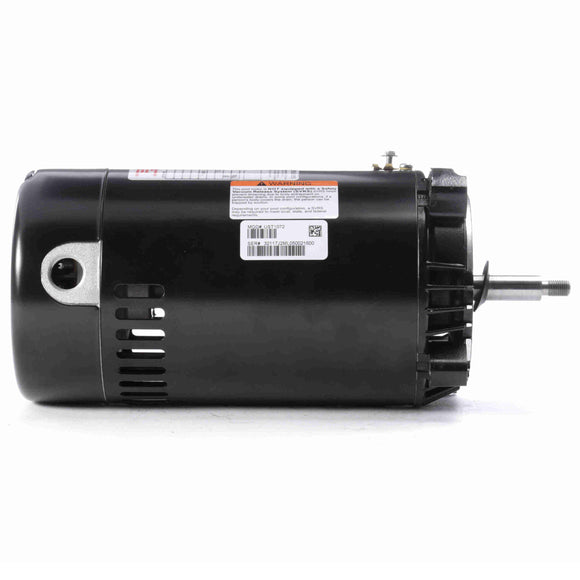

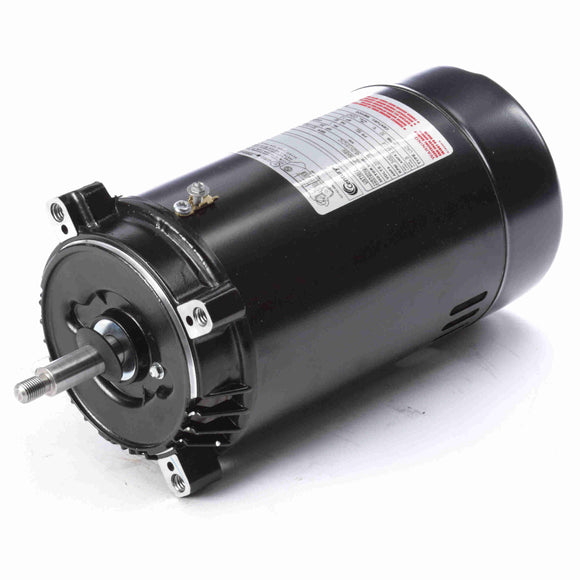

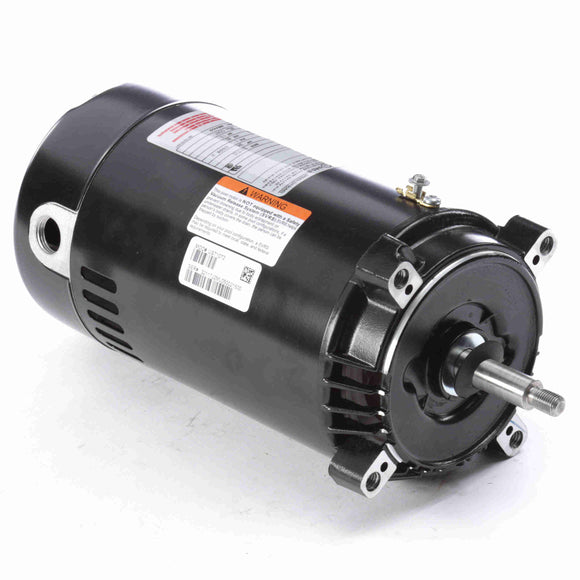

| Part Description : | 3/4 HP 3450 115/230 ODP 56J THD SHAFT | Category : | Induction Motors |
| Stock : | Yes |

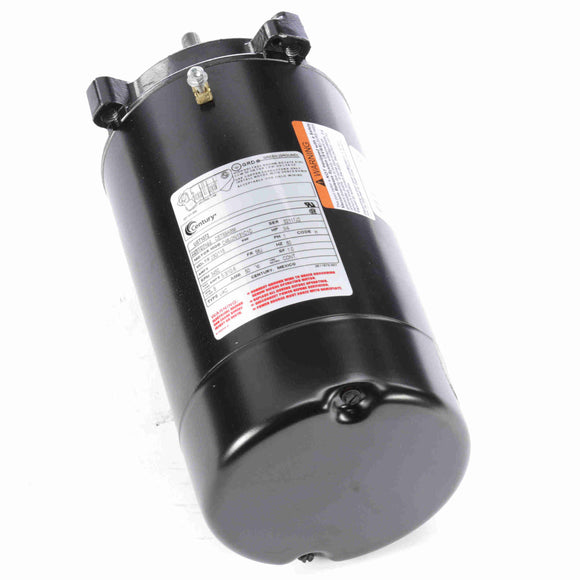

Nameplate Specifications
Nameplate Specifications
| Output HP : | 3/4 Hp | Output KW : | 0.56 kW |
| Frequency : | 60 Hz | Voltage : | 230/115 V |
| Current : | 5.5/11.0 A | Speed : | 3450 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | B |
| Frame : | 56J | Enclosure : | Open Drip Proof |
| Overload Protector : | Automatic | Ambient Temperature : | 50 °C |
| UL : | Recognized | CSA : | Y |
Technical Specifications
Technical Specifications
| Electrical Type : | Cap Start Motor | Poles : | 2 |
| Rotation : | Counterclockwise Pump End | Mounting : | Round |
| Motor Orientation : | Horizontal | Drive End Bearing : | BALL |
| Opp Drive End Bearing : | BALL | Frame Material : | Rolled Steel |
| Shaft Type : | Threaded | Overall Length : | 13.20 in |
| Frame Length : | 7.38 in | Shaft Diameter : | 0.625 in |
| Shaft Extension : | 2.56 in | UPC : | 786674033321 |
| Weight : | 20.00 LB |
