Overview

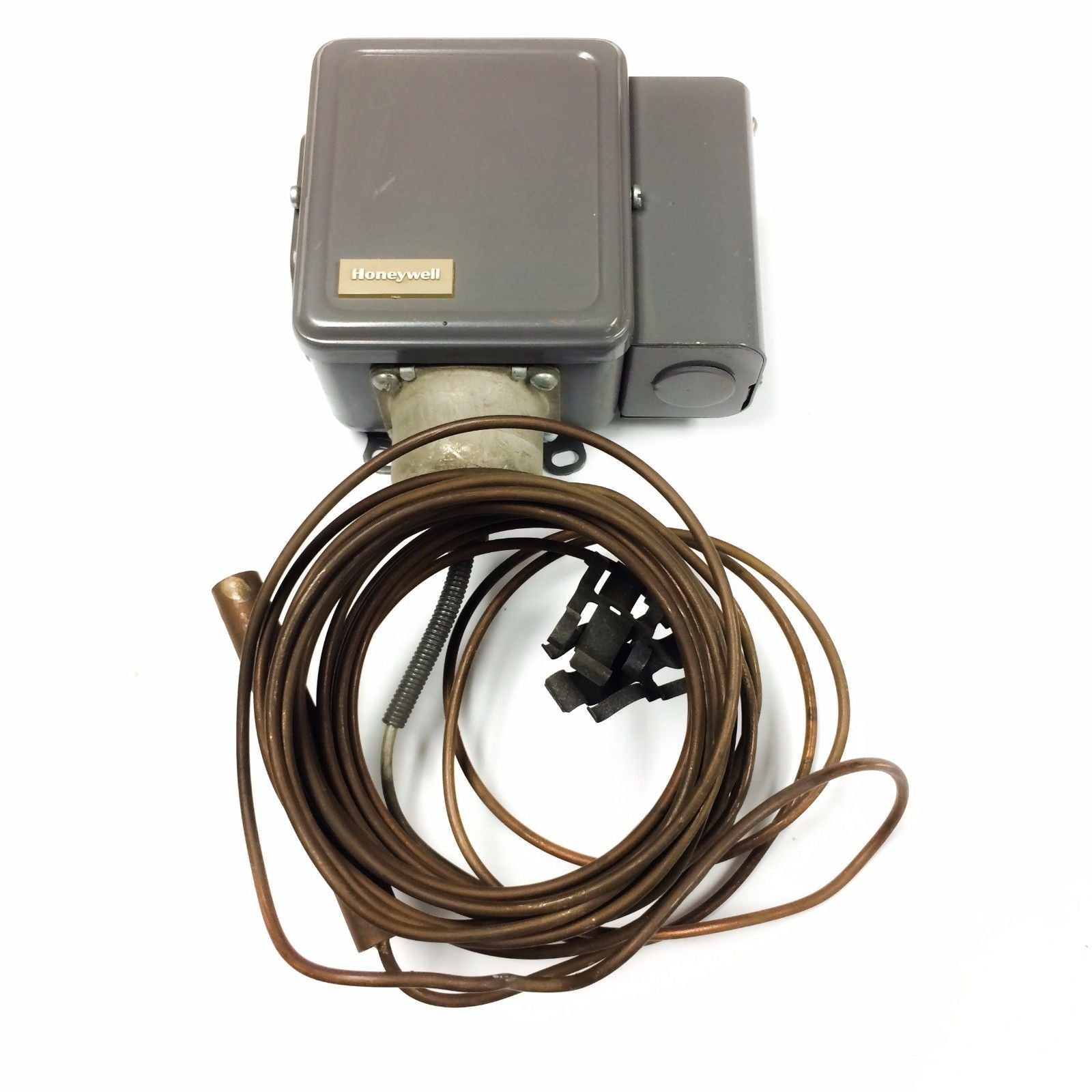

Proportional (135 ohm) remote bulb controllers for ducts, tanks, boilers, pipes and other heat exchangers.
Features
- Provide proportioning control of three-wire, low-voltage valve or damper motors.
- Used to regulate temperatures of either air or liquids.
- All models ambient compensated. Ambient temperature compensation provides good temperature control. Refer to T775 Electronic Remote Temperature Controller where more exact control is required and/or remote controller location is preferred.
- Temperature setting scale markings in both Fahrenheit and Celsius. Steel case has a clear plastic cover to make setting readily visible.
- Surface mount using two screws through back of case.
Product Specifications
- Hazmat Information
- UN 2037, RECEPTACLES, SMALL, CONTAINING GAS, 2.1
- Application
- Used with Series 90 Modutrol Motors for proportional control of valves and dampers
- Dimensions (in.)
- 5 1/2 in. high x 4 1/2 in. wide x 2 3/4 in. deep
- Dimensions (mm)
- 140 mm high x 114 mm wide x 70 mm deep
- Item Type
- Product
- Setpoint Temperature Range (C)
- -10 C to +32 C
- Setpoint Temperature Range (F)
- 15 F to 90 F
- Operating Temperature Range (F)
- 200 F Maximum
- Operating Temperature Range (C)
- 93 C Maximum
- Output
- analog
- Analog Output
- One 135 Ohm Potentiometer
- Sensor Inputs
- 1
- Sensor Element
- Copper bulb, fade-out fill
- Capillary Length (ft)
- 20 ft
- Capillary Length (m)
- 6.1 m
- Bulb Size (in.)
- 1/2 in. diameter x 4 in. long
- Bulb Size (mm)
- 13 mm diameter x 102 mm long
- Throttling Range (F)
- 7 F to 38 F
- Throttling Range (C)
- 3.9 C to 21.1 C
- Color
- Gray
