Features
Features
- Sealed Ball Bearings
- Capacitor Start
- Open Dripproof
- 303 Stainless Steel Shaft
- 50°C Ambient
- UL 1081 Design
General Specifications
General Specifications
| Model : | SQ1052 | Catalog No : | SQ1052 |

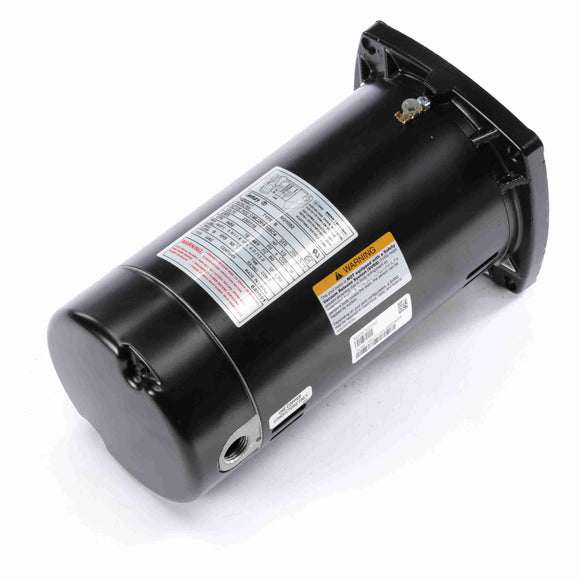

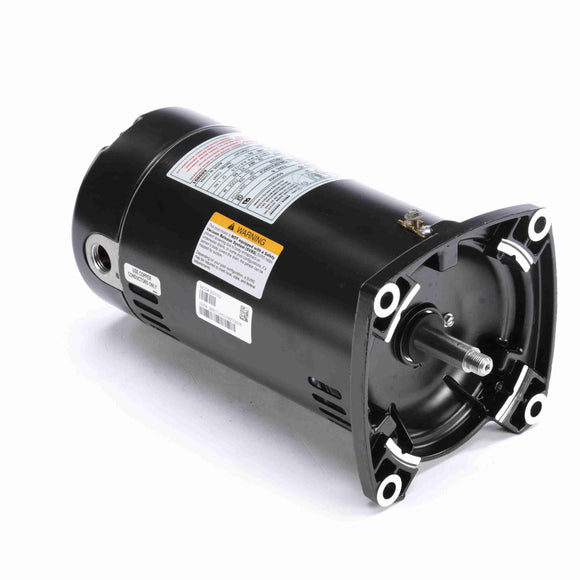

| Part Description : | 1/2 HP 3450 115/230 ODP 48Y THD SHAFT | Category : | Induction Motors |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 1/2 Hp | Output KW : | 0.37 kW |
| Frequency : | 60 Hz | Voltage : | 230/115 V |
| Current : | 6.7/13.4 A | Speed : | 3450 rpm |
| Service Factor : | 1.9 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | B |
| Frame : | 48Y | Enclosure : | Open Drip Proof |
| Overload Protector : | Automatic | Ambient Temperature : | 50 °C |
| UL : | Recognized | CSA : | Y |
Technical Specifications
Technical Specifications
| Electrical Type : | Cap Start Motor | Poles : | 2 |
| Rotation : | Counterclockwise Pump End | Mounting : | Round |
| Motor Orientation : | Horizontal | Drive End Bearing : | BALL |
| Opp Drive End Bearing : | BALL | Frame Material : | Rolled Steel |
| Shaft Type : | Threaded | Overall Length : | 12.19 in |
| Frame Length : | 8.31 in | Shaft Diameter : | 0.625 in |
| Shaft Extension : | 0.906 in | UPC : | 786674031136 |
| Weight : | 19.00 LB |
