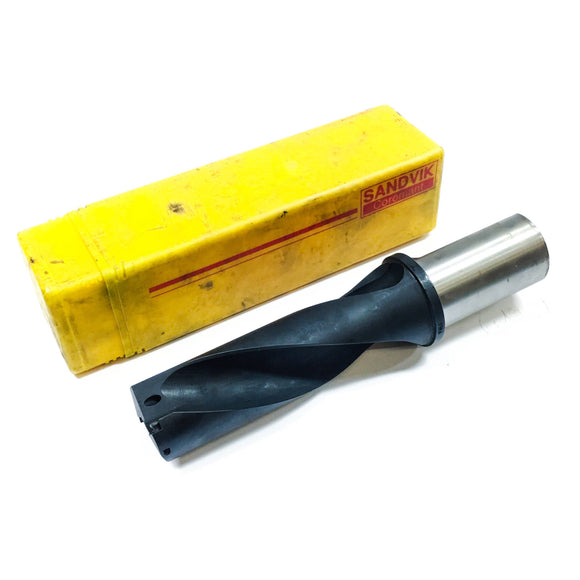

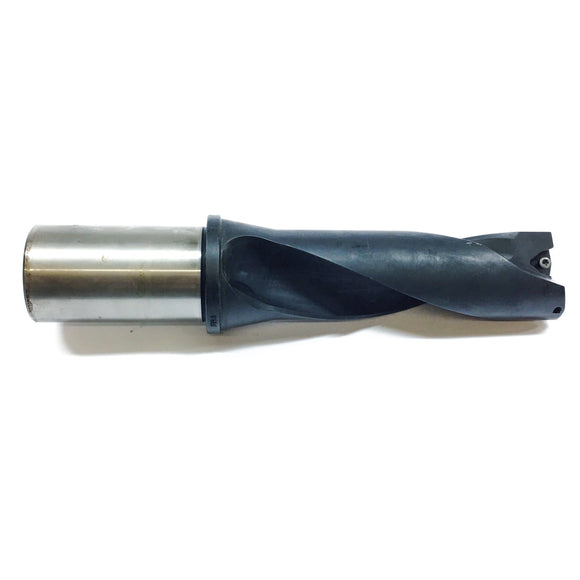

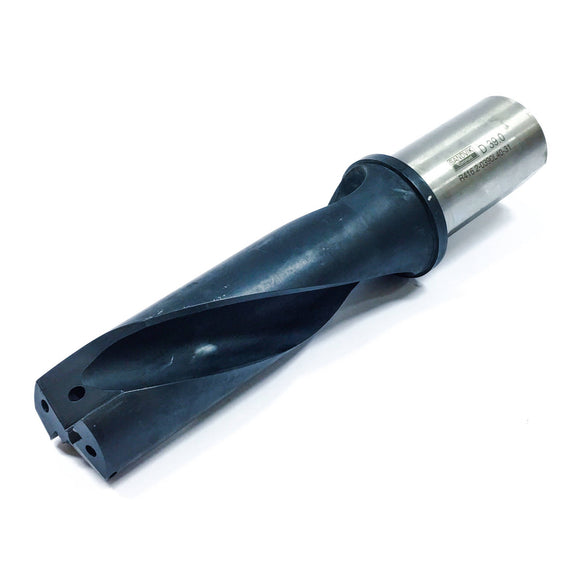

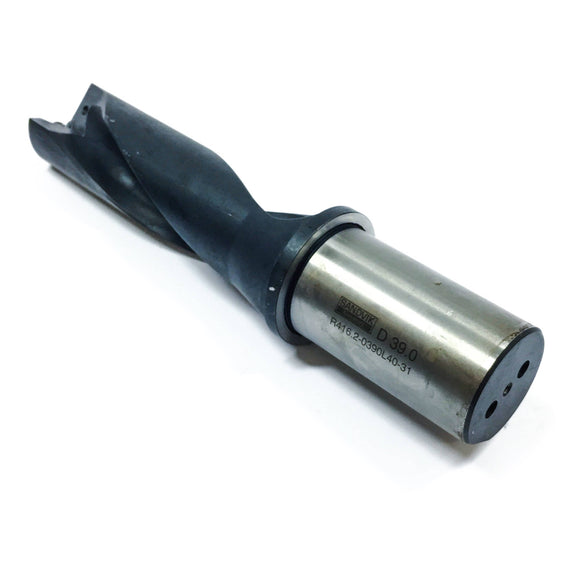

Sandvik R416.2-0390L40-31 Indexable Insert Drill

Cutting diameter
(DC)

39 mm

Achievable hole tolerance lower
(TCHAL)

-0.1 mm

Achievable hole tolerance upper
(TCHAU)

0.3 mm

Usable length
(LU)

120.9 mm

Usable length diameter ratio
(ULDR)

3.1

Maximum adjustment limit
(ADJLX)

1.5 mm

Part 2 of cutting item interface identifiers
(CUTINTMASTERC1)

CoroDrill U -C (WCMX06)

Part 2 of cutting item interface identifiers
(CUTINTMASTERP1)

CoroDrill U -P (WCMX06)

Adaptive interface machine direction
(ADINTMS)

Cylindrical shank (ISO9766 drill shank) -metric: 40

Coolant entry style code
(CNSC)

1: axial concentric entry

Coolant pressure
(CP)

10 bar

Connection diameter
(DCON)

40 mm

Tool cutting edge angle
(KAPR)

85 deg

Point length
(PL)

3.9 mm

Overall length
(OAL)

219 mm

Functional length
(LF)

145.1 mm

Body length
(LB1)

121 mm

Rotational speed maximum
(RPMX)

16000 r/min

Weight of item
(WT)

1.47 kg

Life cycle state
(LCS)

Obsolete

Release pack id
(RELEASEPACK)

95.3
