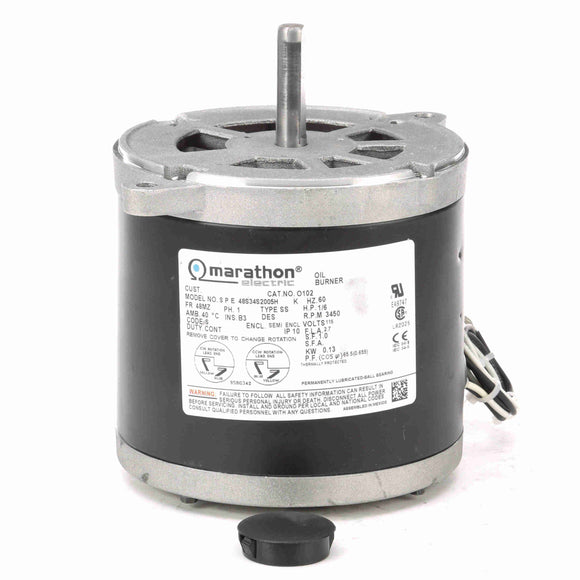

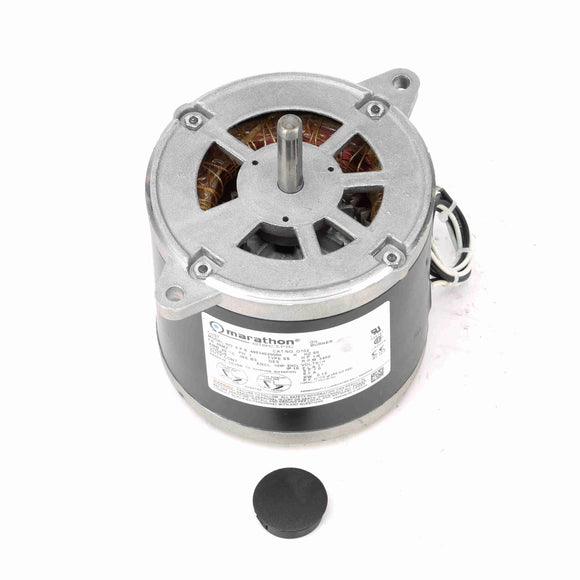

Features
Features
- Semi- enclosed steel frame
- 20” Long leads from a 1/2” NPT opening
- Split phase design
- Two-bolt, NEMA N- or M-Flange direct
General Specifications
General Specifications
| Model : | 048S34S2005 | Catalog No : | O102 |
| Part Description : | 1/6,3450,SEMI,48M,1/60/115 | Category : | Single Phase |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.17 Hp | Output KW : | 0.13 kW |
| Frequency : | 60 Hz | Voltage : | 115 V |
| Current : | 2.7 A | Speed : | 3450 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 62 % | Duty : | Continous |
| Insulation Class : | B | Design Code : | NO DESIGN CODE |
| KVA Code : | S | Frame : | 48MZ |
| Enclosure : | Semi Enclosed | Overload Protector : | Manual |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 10 |
Technical Specifications
Technical Specifications
| Electrical Type : | Split Phase | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Selective Clockwise |
| Mounting : | Round | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | Single Special Extension |
| Overall Length : | 7.25 in | Frame Length : | 4.00 in |
| Shaft Diameter : | 0.500 in | Shaft Extension : | 1.99 in |
| Assembly/Box Mounting : | F1 Only | UPC : | 722856041586 |
| Weight : | 11.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 3.62 | 9.30 | 3,057 | 0.67 | 0.17 | |||
| Pull-Up | 10.40 | 8.94 | 457 | 2.05 | 0.17 | |||
| Locked-Rotor | 10.40 | 9.06 | 0 | 2.04 | 0.17 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 2.06
- 0.062
- 0.0
- 26.2
- 3,600
- 0.0
- 0.00
- 25 %
- 2.10
- 0.543
- 5.8
- 224.8
- 3,563
- 0.0
- 1.00
- 50 %
- 2.24
- 0.576
- 10.9
- 223.6
- 3,543
- 0.0
- 2.00
- 75 %
- 2.42
- 0.613
- 15.3
- 220.3
- 3,522
- 0.0
- 3.00
- 100 %
- 2.68
- 0.202
- 62.0
- 65.5
- 3,498
- 55.0
- 4.00
- 125 %
- 2.98
- 0.243
- 64.7
- 70.9
- 3,472
- 0.0
- 5.10
- 150 %
- 3.34
- 0.289
- 64.5
- 75.2
- 3,440
- 0.0
- 6.10
- 175 %
- 3.78
- 0.339
- 64.2
- 78.0
- 3,403
- 0.0
- 7.20
- 200 %
- 4.36
- 0.402
- 62.1
- 80.2
- 3,350
- 0.0
- 8.40
