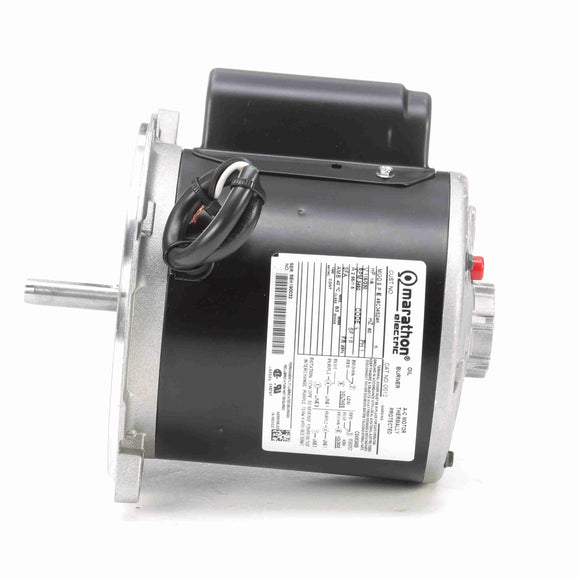

O012 Marathon 1/5HP Oil Burner Electric Motor, 3450RPM-1

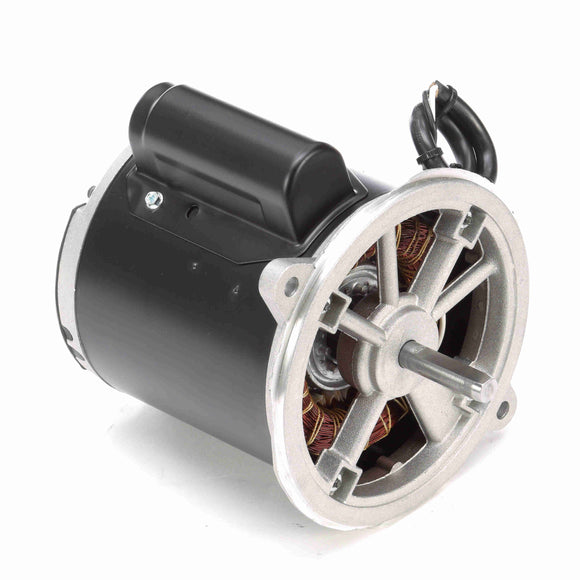

O012 Marathon 1/5HP Oil Burner Electric Motor, 3450RPM-2

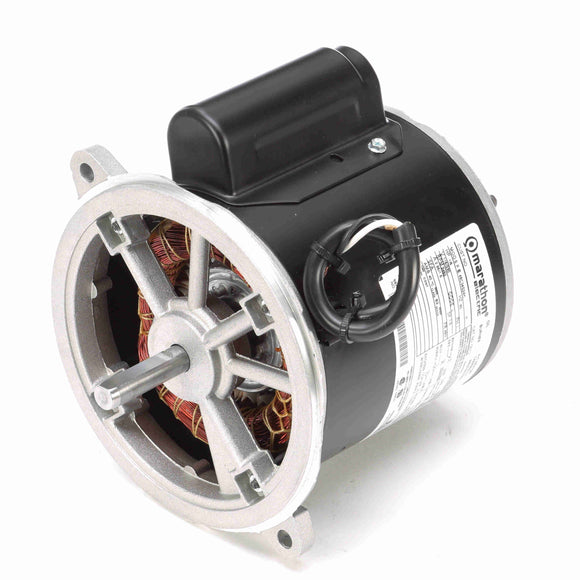

O012 Marathon 1/5HP Oil Burner Electric Motor, 3450RPM-3
O012 Marathon 1/5HP Oil Burner Electric Motor, 3450RPM-4

O012 Marathon 1/5HP Oil Burner Electric Motor, 3450RPM

$473.00

Shipping calculated at checkout

Marathon Electric (Regal Beloit Corp) SKU: O012 Barcode: 722856041555

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Semi-enclosed steel frame
  • 10” Long leads from a 1/2” NPT opening
  • Capacitor start induction run design
  • Two-bolt, NEMA N- or M-Flange direct

General Specifications

General Specifications
Model : 048C34S24 Catalog No : O012
Part Description : 1/5,3450,SEMI,48N,1/60/115/230 Category : Single Phase
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 0.20 Hp Output KW : 0.15 kW
Frequency : 60 Hz Voltage : 115/230 V
Current : 3.0/1.5 A Speed : 3450 rpm
Service Factor : 1 Phase : 1
Efficiency : 61 % Duty : Continuous
Insulation Class : B Design Code : NO DESIGN CODE
KVA Code : L Frame : 48N
Enclosure : Semi Enclosed Overload Protector : Manual
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 10

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Induction Run Starting Method : Across The Line
Poles : 2 Rotation : Selective Clockwise
Mounting : Round Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 48
Overall Length : 8.35 in Frame Length : 4.75 in
Shaft Diameter : 0.500 in Shaft Extension : 1.97 in
Assembly/Box Mounting : F1 Only UPC : 722856041555
Weight : 14.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 8.20 14.18 0 1.90 0.20
Break-Down 4.20 12.89 3,214 0.80 0.20
Pull-Up 5.40 11.86 2,786 1.00 0.20
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.02
  • 0.059
  • 0.0
  • 41.5
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 1.07
  • 0.114
  • 25.8
  • 56.1
  • 3,567
  • 0.0
  • 1.21
  • 50 %
  • 1.17
  • 0.155
  • 40.2
  • 65.8
  • 3,551
  • 0.0
  • 2.40
  • 75 %
  • 1.31
  • 0.199
  • 48.0
  • 72.5
  • 3,533
  • 0.0
  • 3.59
  • 100 %
  • 1.48
  • 0.248
  • 53.0
  • 77.3
  • 3,511
  • 0.0
  • 4.82
  • 115 %
  • 1.59
  • 0.277
  • 55.0
  • 81.0
  • 3,498
  • 0.0
  • 5.54
  • 125 %
  • 1.68
  • 0.300
  • 56.3
  • 83.0
  • 3,488
  • 0.0
  • 6.05
  • 150 %
  • 1.92
  • 0.356
  • 54.0
  • 85.0
  • 3,460
  • 0.0
  • 7.31
  • 175 %
  • 2.22
  • 0.422
  • 51.2
  • 0.0
  • 3,424
  • 0.0
  • 8.61
  • 200 %
  • 2.62
  • 0.505
  • 0.0
  • 0.0
  • 3,372
  • 0.0
  • 10.00
