Features
- Totally Enclosed Fan Cooled (IP54 Rating)
- Meets or Exceeds NEMA Premium Efficiency Levels
- Department of Energy Efficiency Certificate #CC002A
- 36 Month Warranty from Date of Manufacture
- 1.15 Service Factor – Continuous
- Class F Insulation with Phenolic Alkyd Resin Varnish – 2 Dips and Bakes
- Class B Temperature Rise
- Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed; F1 Mounted.
- Designed for 40°C Ambient Temperature
- Designed for 3300 ft. Elevation
- Factory Self Certified for Class 1, Div. 2, Groups B, C, D; Temp Code T3C, 400T and Below
- Bidirectional Rotation
- Cast Iron Frame, End Brackets, Pressed Steel Fan Cover and Conduit Box
- Dual Drilled Feet - Longer Frames
- 1045 Carbon Steel Shaft
- Aluminum Die Cast Squirrel Cage Rotor Construction
- Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
- Paint Color: Blue Gray – Munsell 7.5 BG 3.5/ .05
- Grounding Terminal Inside Main Box
- Stainless Steel Nameplate
- Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of Up to 2200 Volts
- VFD Rated per NEMA MG1, Part 31.4.4.2
- 9 Leads - 5 hp and Below
12 Leads 7.5 hp - 125 hp
6 Leads - 150 hp and Larger - CE Mark on Nameplate, U.L. Recognized and CSA Approved
Specifications

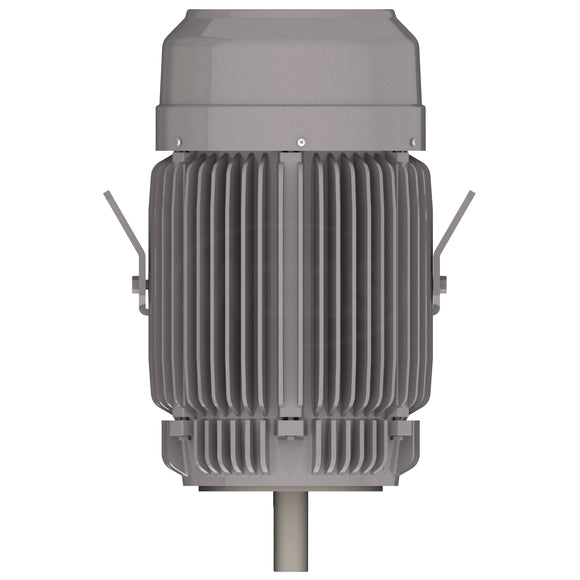

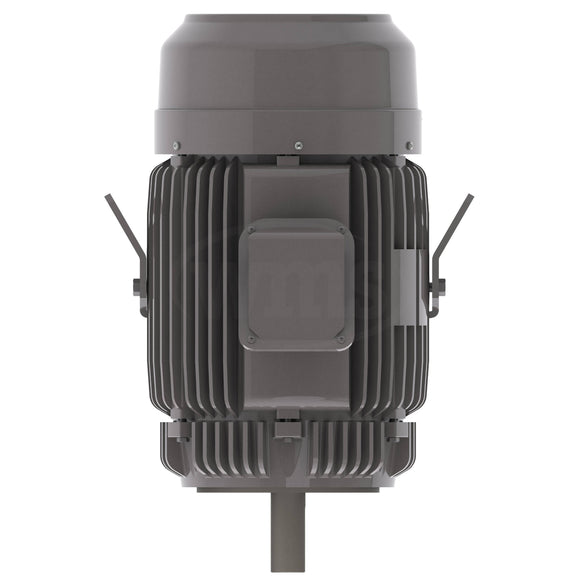

| Manufacturer | Teco-Westinghouse |
|---|---|
| Catalog Number | NPV0202C |
| Type | AEUH8PCF |
| Output Power | 20 HP 14.9 kW |
| RPM | 3600 RPM |
| Poles | 2 |
| Voltage | 230/460VAC 60Hz 3-Phase |
| Enclosure | TEFC Cast Iron |
| Frame | 256TC |
| C-Face | Yes |
| Weight | 382 lbs |
| Rated Ambient | 40°C |
| Insulation Class | F |
| NEMA Design | B |
| Service Factor | 1.15 |
| UPC | |
| Country of Origin |
Applications
- Fans & Blowers
- Pumps
- Crushers
- Compressors
- Mixers
- Conveyors
