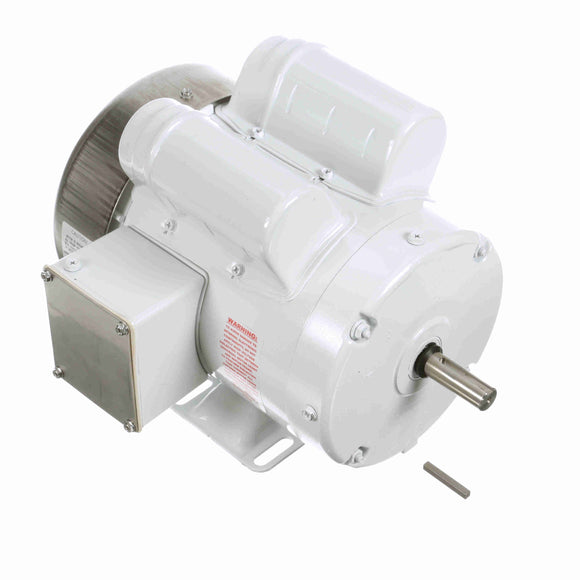

N682 Marathon 1HP PowerWash XT Washdown Electric Motor, 1800RPM

$439.97 USD

Shipping calculated at checkout

Marathon Electric SKU: N682 Barcode: 722856028808

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Features

  • Encapsulated electronic starting switch is impervious to moisture
  • Capacitor start induction run design for high starting torque
  • Class F insulation
  • Double sealed ball bearings
  • 303 Stainless steel shaft with spring loaded contact seals in each endshield
  • Stainless steel conduit box cover, nameplate, fan guard (TEFC) and hardware
  • Cast oversized conduit box with high temperature Nitrile gaskets and threaded entrance
  • Plugged drain holes in each endshield for all angle mounting
  • Internal corrosion resistant coatings on frame, base, endshields, rotor and stator
  • F1 mounting only, cannot reassemble to F2

General Specifications

UPC: 722856028808 Weight: 34.00 LB
Packaged Length: 14.63 IN Packaged Width: 11.25 IN
Packaged Height: 10.65 IN HTC: 8501.40.6040
Country of Origin: United States of America

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 12.8/6.4 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 75 % Power Factor: 68
Duty: Continuous Insulation Class: F
Design Code: N KVA Code: K
Frame: 56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 55
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 1.9 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 11.81 in
Shaft Diameter: 0.625 in Shaft Extension: 1.88 in
Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 6.40 0.0 3.00 100.0 1,747 0.00 0.0 1.00
Break-Down 0.00 0.0 7.00 233.0 0 0.00 0.0 1.00
Pull-Up 0.00 0.0 6.70 223.0 0 0.00 0.0 1.00
Locked-Rotor 33.00 0.0 9.00 300.0 0 0.00 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 4.60 4.76 5.17 5.80 6.42 6.85 7.56 8.82
Rated Output (KW) 0.15 0.34 0.54 0.77 0.99 1.14 1.27 1.55
Efficiency (%) 0.0 56.0 69.7 72.8 75.0 75.0 72.4 70.3
Power Factor (%) 14.0 31.1 45.6 58.0 67.2 72.0 73.1 76.5
Speed (RPM) 1,798 1,786 1,774 1,762 1,747 1,737 1,728 1,708
Temp. Rise @ FL 0.0 0.0 0.0 0.0 73.0 0.0 0.0 0.0
Torque (LB-FT) 0.00 0.75 1.50 2.25 3.00 3.45 3.75 4.50
