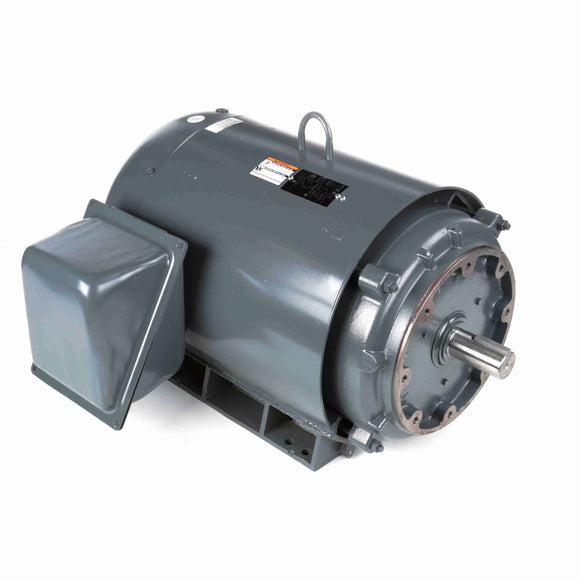

LM32660 Lincoln 200HP General Purpose Electric Motor, 1800RPM

$29,499.97 USD $51,590.00 USD Save $22,090.03 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: LM32660 Barcode: 691720065839

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Premium efficient ratings
  • Inverter-rated; Continuous duty
  • Class F insulation system – 140 frame and higher
  • Class F insulation system – 140 frame and higher
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards; UL recognized and CSA certified

General Specifications

General Specifications
Model : SF4B200TSC64Y Catalog No : LM32660
Part Description : ..200HP..1800RPM.445TSC.TEFC.460V.3PH.60HZ.CONT.40C..RIGID-C.............. Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 200 HP Output KW : 149.0 kW
Frequency : 60 Hz Voltage : 460 V
Current : 227.0 A Speed : 1788 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 96.2 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : G Frame : 445TSC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 318
Opp Drive End Bearing Size : 315 UL : Recognized
CSA : Y CE : Y
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Wye Start Delta Run
Poles : 4 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : TS
Overall Length : 39.74 in Frame Length : 23.17 in
Shaft Diameter : 2.375 in Shaft Extension : 4.75 in
Assembly/Box Mounting : F1 ONLY UPC : 691720065839
Weight : 1,555.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
No Load 70.00 31.0 0.00 0.0 1,800 200.00
Pull-Up 1,300.00 573.0 1,260.00 215.0 900 200.00
2/3 1,240.00 546.0 1,470.00 250.0 1,200 200.00
Locked-Rotor 1,450.00 639.0 1,400.00 239.0 0 36.0 200.00
Break-Down 800.00 352.0 1,460.00 249.0 1,715 64.0 200.00
1/3 1,380.00 608.0 1,190.00 203.0 600 200.00
Full Load 227.00 100.0 587.00 100.0 1,785 200.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 70.00
  • 3.200
  • 0.0
  • 5.5
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 89.50
  • 41.000
  • 90.2
  • 57.5
  • 1,797
  • 0.0
  • 146.00
  • 50 %
  • 128.00
  • 79.000
  • 95.0
  • 77.0
  • 1,795
  • 0.0
  • 293.00
  • 75 %
  • 175.00
  • 117.000
  • 95.4
  • 84.0
  • 1,790
  • 0.0
  • 440.00
  • 100 %
  • 227.00
  • 156.000
  • 96.2
  • 86.0
  • 1,788
  • 60.0
  • 587.00
  • 115 %
  • 261.00
  • 179.000
  • 95.8
  • 86.0
  • 1,785
  • 80.0
  • 677.00
  • 125 %
  • 284.00
  • 195.000
  • 95.4
  • 86.0
  • 1,783
  • 95.0
  • 736.00
