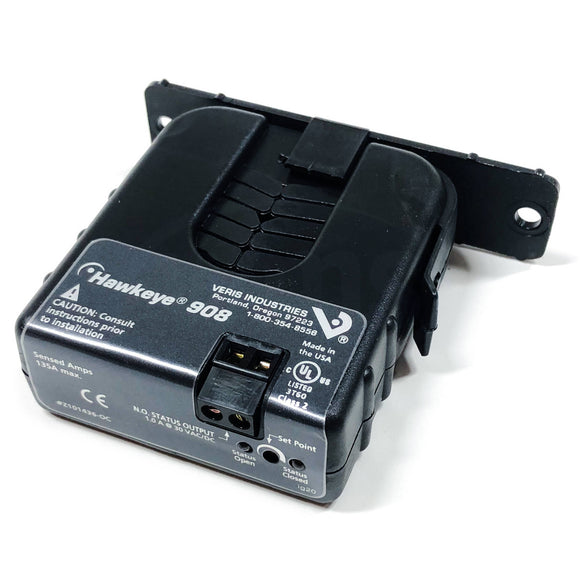

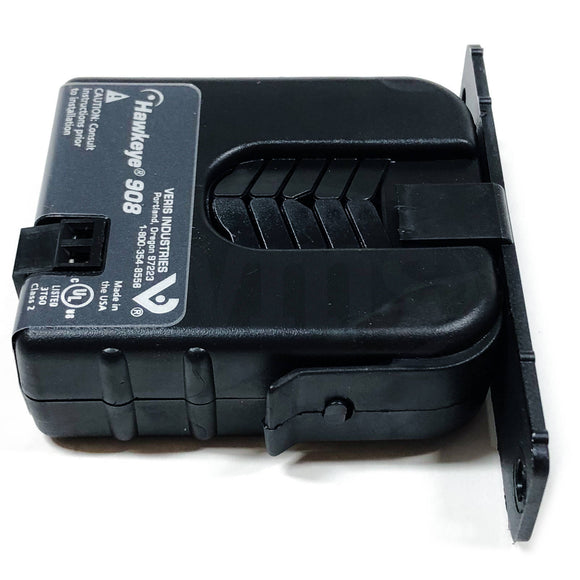

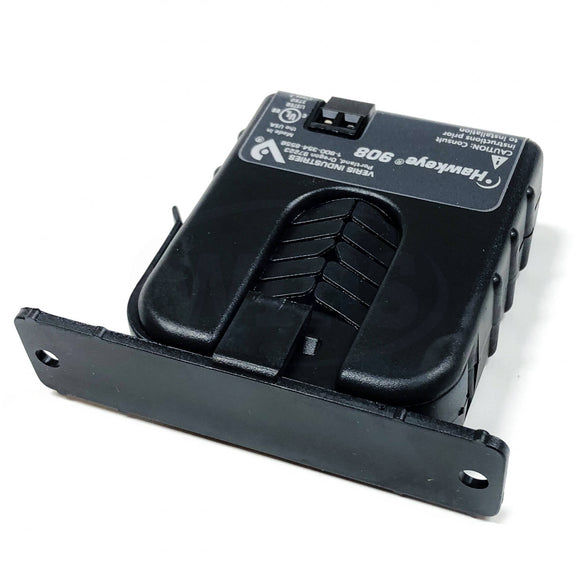

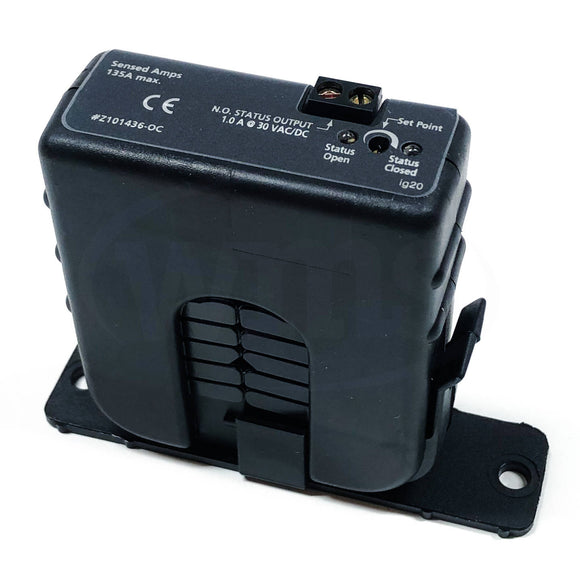

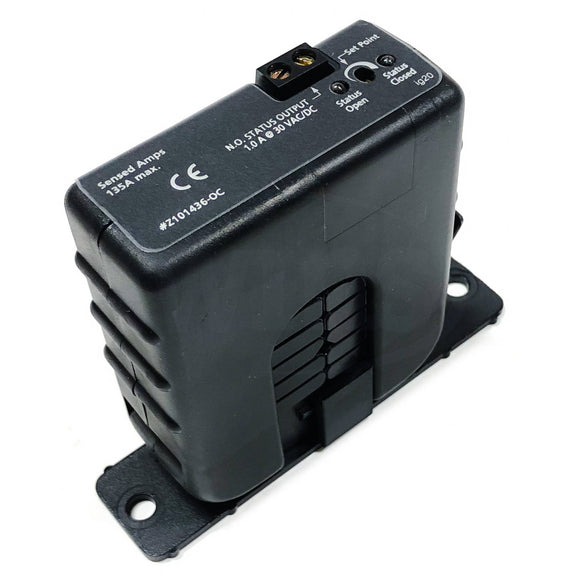

H908 Veris Hawkeye 908 Split Core Adjustable Current Status Sensor

Hx08 series adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear or other mechanical failure on unit vents, exhaust fans, recirculation pumps and other fixed loads down to as little as 1/5 hp.

• Retrofit or new construction - high performance devices in split and solid-core housings
• Adjustable trip point - precise current trip point setting
• Small size - fits easily inside small enclosures
• Self-gripping iris for easy installation
• Status LEDs - for easy setup and local indication
• Induced from monitored conductor sensor power
• On/off status for variable frequency drive (VFD) outputs at 12 to 115 Hz, provides functional insulation only

Application	:	Building Automation Systems
Current Measurement Range	:	2.5 - 135 A
Current Sensor type	:	Current Switch, AC
Electrical Wiring Size	:	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	:	AC Current
Model	:	H908
Monitored Frequency Range	:	50 - 60 Hz
Monitored Wire Size	:	0.8" (21 mm)
Mounting	:	Split Core
Operating Humidity	:	10 - 90% RH, non-condensing
Operating Temperature	:	5 - 140 °F (-15 - 60 °C)
Output Specifications	:	N.O. 1 A @ 30 VAC/DC
Outputs	:	Switch output
Product Certification	:	UL | CE
Product Type	:	Sensor
Range	:	HX08 Series
Relay Coil Voltage	:	None
Relay Contact Ratings	:	None
Relay Poles/Throw	:	None
Setpoint	:	Adjustable
Warranty	:	5 years
