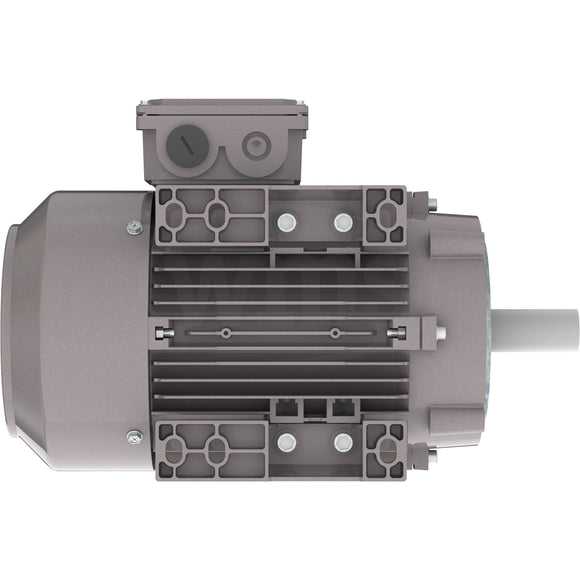

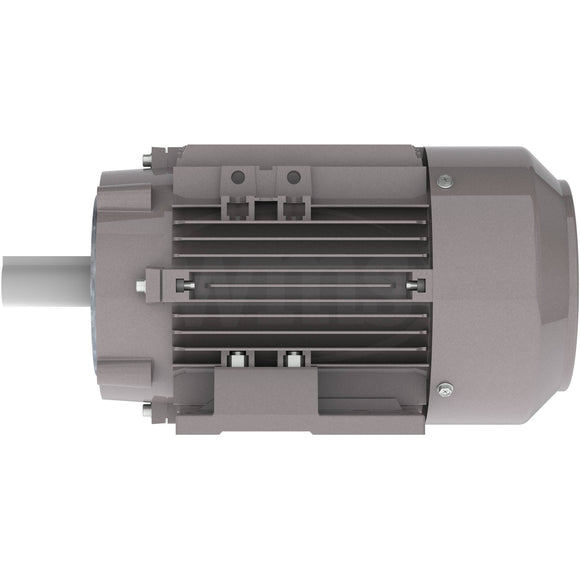

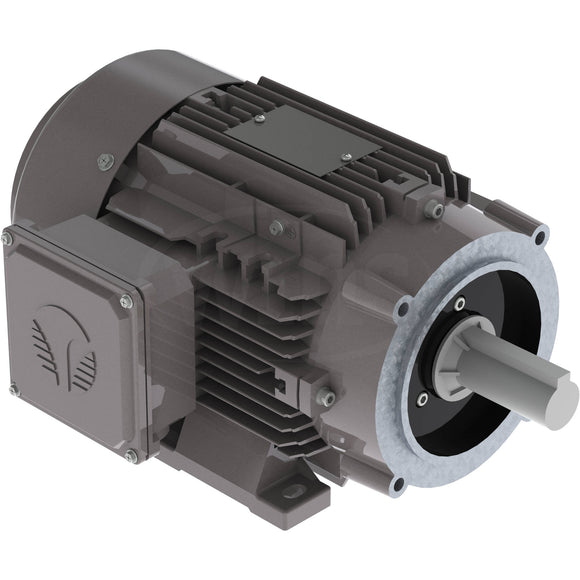

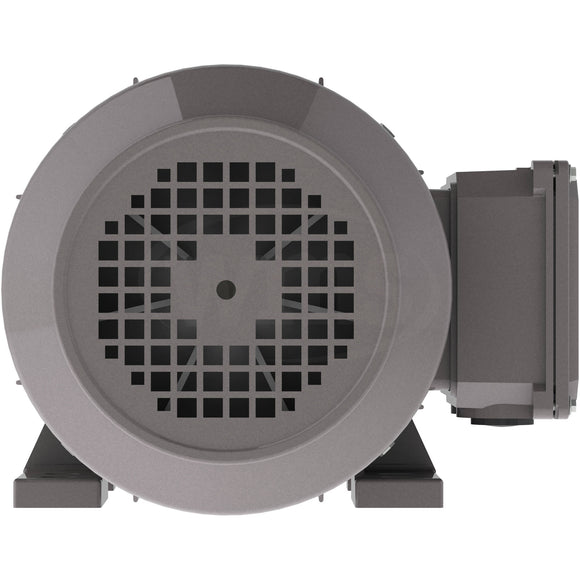

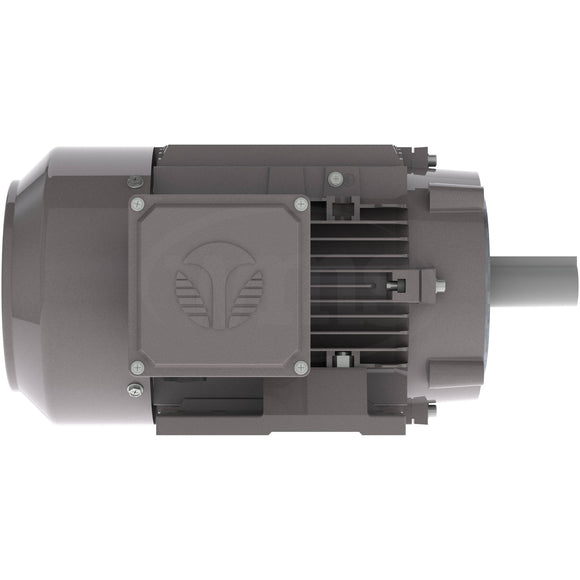

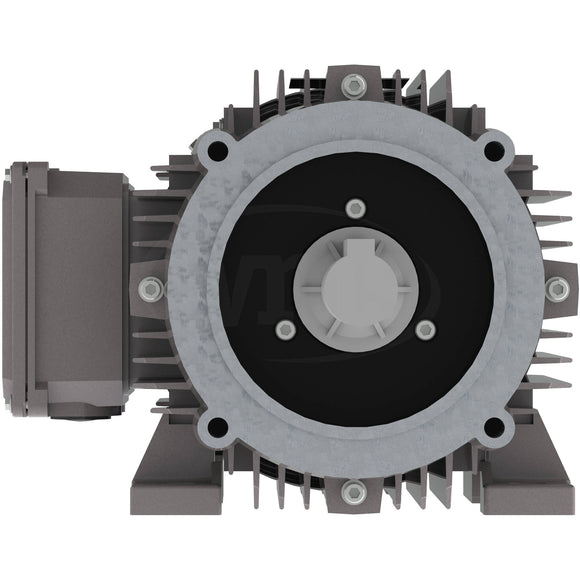

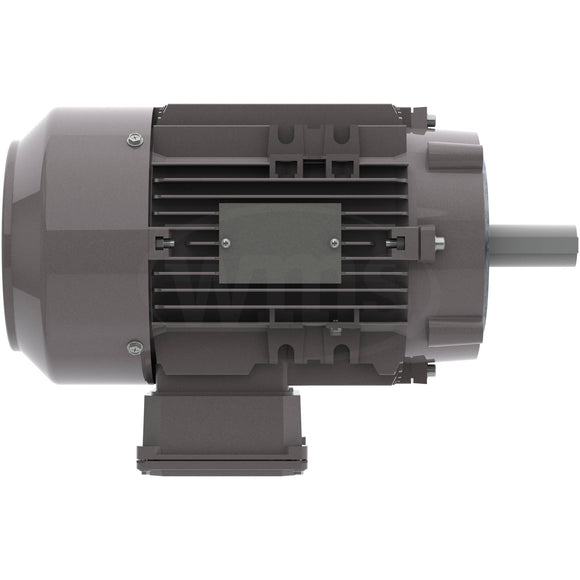

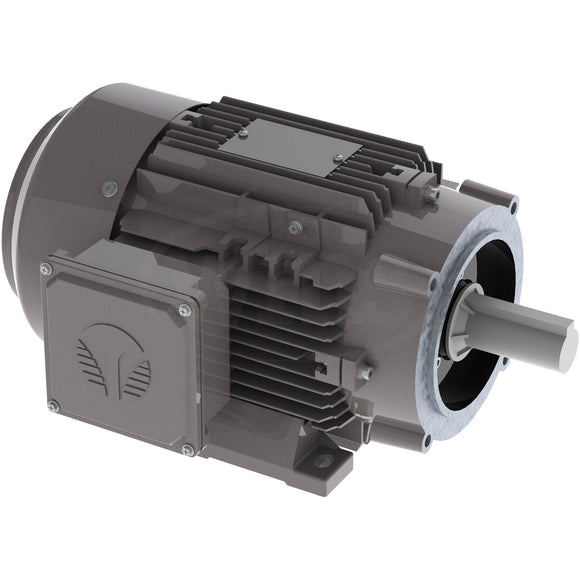

Standard Features
- NEMA Premium Efficiency
- Dual Voltage – Three Phase
- Inverter Duty – 15: Constant Torque (MG1 Part 31)
- Totally Enclosed Fan Cooled, IP55 Protection
- VPI Lap Wound Stator with Anti-Fungal Coating
- Double Lip Oil Seal on DE & ODE
- Internal Shaft Grounding Brush
- 1.25 Service Factor – 143T Frame and Up
- 50 Hz Capabble at 1.00 Service Factor
- 40°C Ambient Temperature Rating
- 1045 Carbon Steel Shaft
- Multi-Mount Frame with Removable Feet
- Oversized Drive End Bearing
- One-Way Brass Condensation Drains
- Aluminum Conduit Box, 90° Rotatable
- Class F Insulation System with Class H Stator
- F1, F2 & F3 Box Position Convertible (Shipped F1)
- Class 1, Division 2, Group C & D Compliant
- Installation up to 3300ft Altitude
- 36 Month Warranty from Purchase Date
General Data
| Brand | Techtop |
|---|---|
| Model Number | GX3-AL-TF-145TC-6-B-D-1 |
| Factory Type | TXA |
| Frame Size | 145TC |
| Frame Enclosure | TEFC |
| Mounting | Rigid C-Flange |
| Insulation Class | F |
| Duty | Continuous / S1 |
| NEMA Design | B |
| Frame Material | Cast Aluminum |
| Ingress Protection | IP55 |
| Tropicalization | True |
| Cable Entry | One 3/4" NPT |
| Feet Removable | True |
| Double Drilled | - |
| Paint Color | Graphite Gray |
| Paint RAL | 7024 |
| Weight | 34.5 lbs |
Electrical Data
| Horsepower | 1.0 HP |
|---|---|
| Speed | 1145 RPM @ 60Hz 935 RPM @ 50Hz |
| Voltage | 208-230/460VAC
190/380VAC |
| Phase | 3 |
| Full Load Amps | 3.36/3.26/1.63 Amps (208/230/460V) @ 60Hz
3.80/1.90 Amps (190/380V) @ 50Hz |
| Power Factor | 0.70 @ 60Hz |
| Nominal Efficiency | 82.5% @ 60Hz
79.1% @ 50Hz |
| Service Factor | 1.25 @ 60Hz
1.00 @ 50Hz |
| KVA Code | H @ 60Hz
G @ 50Hz |
| Number of Leads | 9 |
| Connection | YY/Y |
Mechanical Data
| DE Bearing | 6205ZZ |
|---|---|
| NDE Bearing | 6205ZZ |
Site Conditions
| Ambient Temperature | 40°C |
|---|---|
| Altitude | 1000m above sea level |
Dimensions
