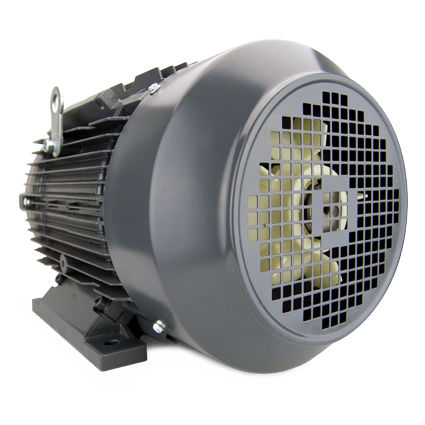

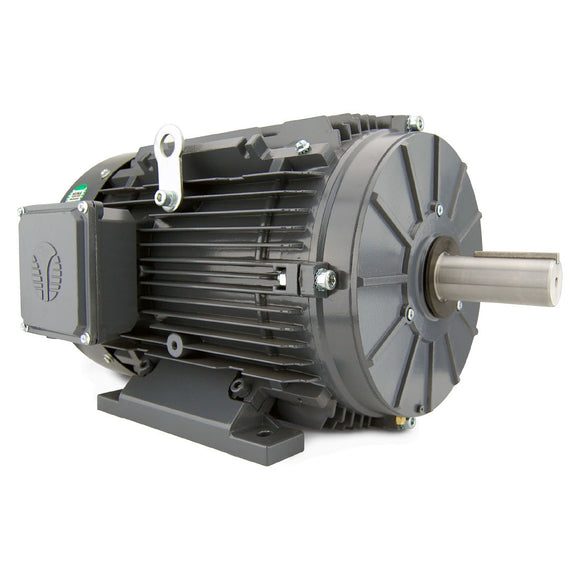

Replaced with Techtop GX3-AL-TF-143T-2-B-D-1.5
Specifications
| Brand | Techtop |
|---|---|
| Horsepower | 1.5 HP |
| Poles | 2 Pole |
| Sync Speed | 3600 RPM |
| Frame | 143T |
| Enclosure | TEFC IP 55 |
| Voltage | 208-230 / 460 Volt |
| Phase | 3 Phase |
| C-Face | No |
| Rigid Base | Yes |
| Model Number | GR3-AL-TF-143T-2-B-D-1.5 |
Standard Features :
| NEMA Premium Efficiency |
|---|
| Dual Voltage - Three Phase 230/460V |
| Inverter Duty -15:1 Constant Torque (MG1 Part 31) |
| Totally Enclosed Fan Cooled IP 55 Protection |
| VPI Lap wound Stator with Anti-fungal Coating |
| Double Lip Oil Seal on DE & ODE |
| 1.25 SF - 143T and Up (1.15 SF - 56C Frame) |
| 50 Hz Capable at 1.0 SF |
| 40° C Ambient Temperature Rating |
| 1045 Carbon Steel Shaft |
| Multi-mount Frame with Removable Feet |
| Oversized Drive End Bearing |
| One-Way Brass Condensation Drains |
| Aluminum Conduit Box 90° Rotatable |
| Class F Insulation System with Class H Stator |
| F1, F2, F3 Box Position Convertible ( Shipped F1) |
| Class 1, Division 2, Group C & D Compliant |
| Installation up to 3300 ft Altitude |
| 36 Month Warranty from Purchase Date |
Dimensions :
