Characteristics
| product or component type |

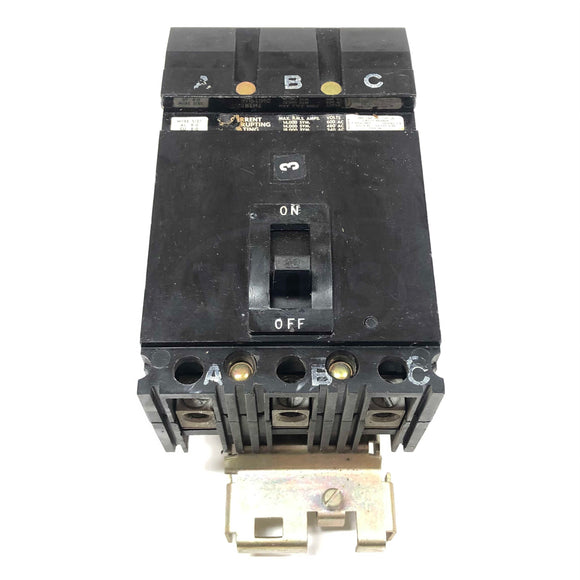

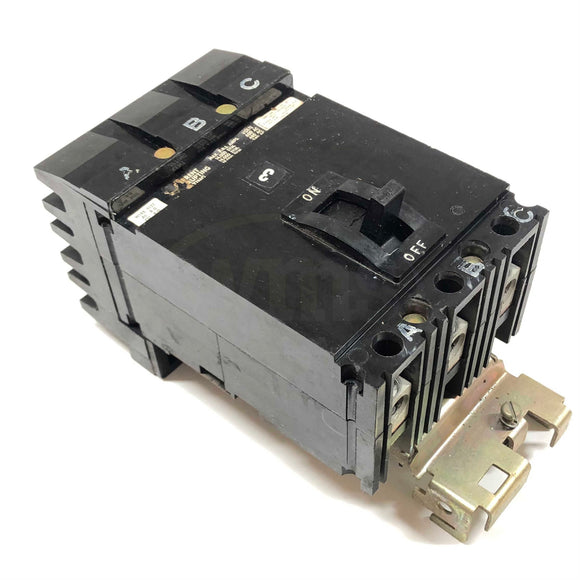

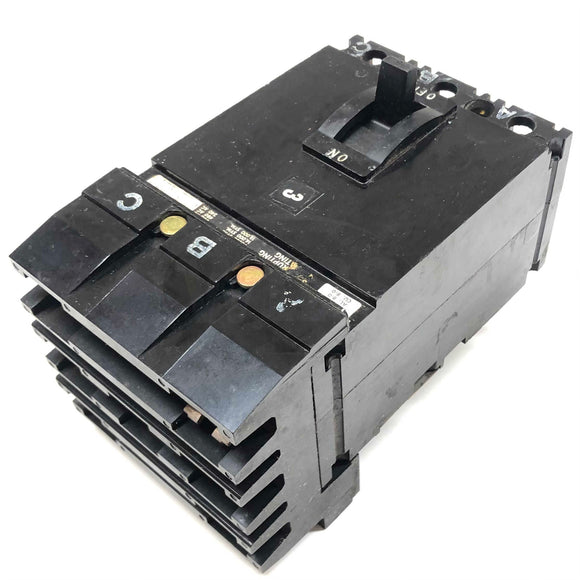

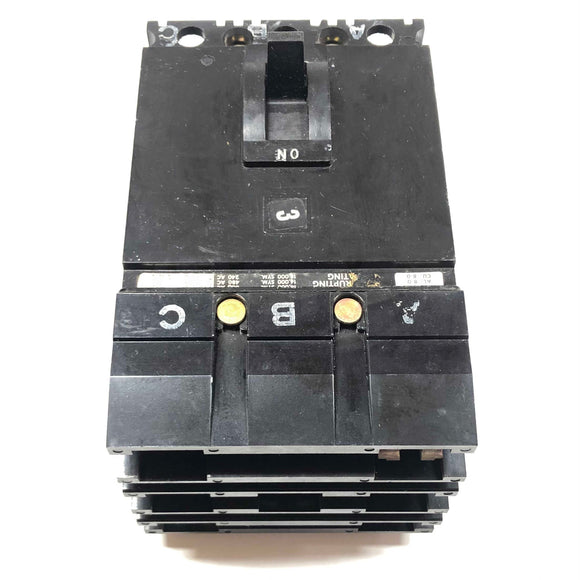

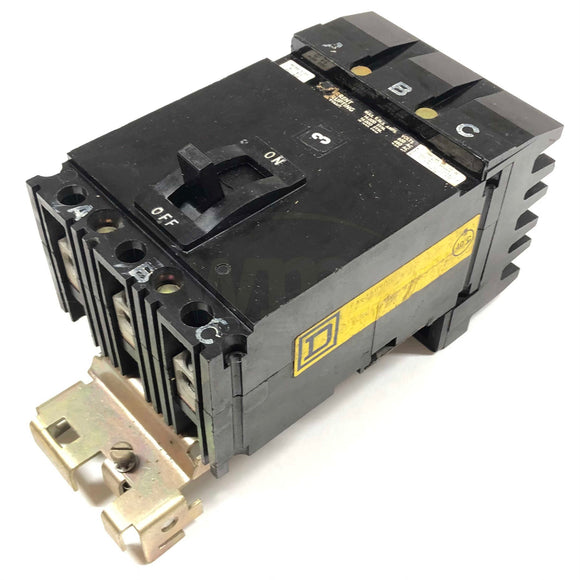

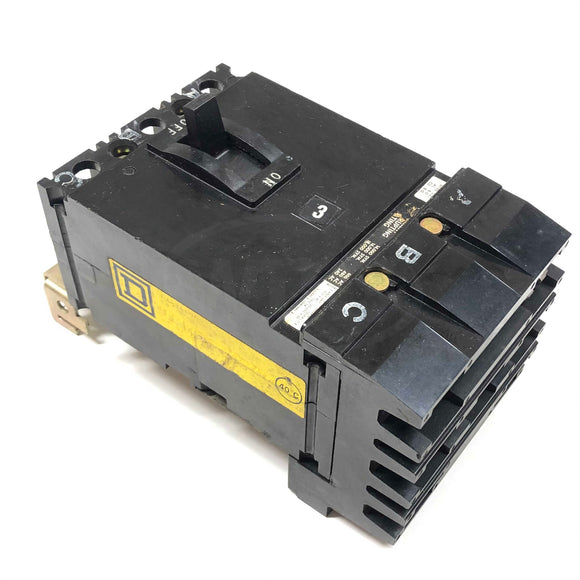

Circuit breaker
|
|
| range of product |
I-Line
|
|
| trip unit technology |
Thermal-magnetic
|
|
| breaking capacity code |
A
|
|
| Line Rated Current |
90 A
|
|
| poles description |
3P
|
|
| breaking capacity |
10 kA at 250 V DC
25 kA at 120/240 V AC 18 kA at 277/480 V AC 14 kA at 347/600 V AC |
|
| System Voltage |
250 V DC
600 V AC |
|
| mounting mode |
I-Line
|
|
| electrical connection |
I-Line connection line
Lugs load |
|
| AWG gauge |
AWG 14...AWG 4 (copper) 1 cable(s)
AWG 12...AWG 4 (aluminium) 1 cable(s) |
|
| terminal identifier |
AL50FA
|
|
| magnetic hold current |
900 A
|
|
| magnetic tripping current |
1700 A
|
|
| phase connection |
ABC
|
|
| product certifications |
UL listed
CSA |
|
| Category |
01010 - FA/FH 600V
|
|
| Discount Schedule |
DE2
|
|
| GTIN |
00785901009757
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
6.2199999999999998
|
|
| Returnability |
Y
|
|
| Country of origin |
MX
|
|
| Sustainable offer status |
Green Premium product
|
|
| RoHS (date code: YYWW) |
Compliant - since 1304 - Schneider Electric declaration of conformity
|
|
| REACh |
Reference not containing SVHC above the threshold
|
|
| Product environmental profile |
Available
|
|
| Product end of life instructions |
Need no specific recycling operations
|
|
