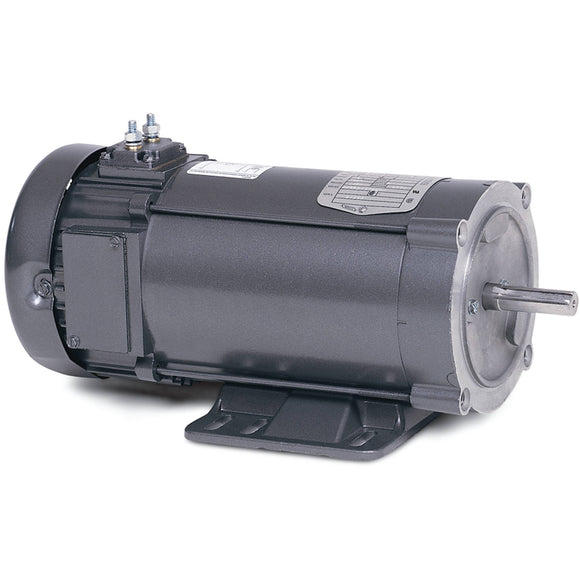

CDP3440-V12 Baldor 3/4HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

$1,399.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CDP3440-V12 Barcode: 781568392164

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56C Frame, 12VDC Armature, 3430P, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Armature Voltage12 V
Base Speed1800 rpm
EnclosureTEFC
Frame56C
Frame MaterialSteel
Output Power0.750 HP
XP Class and GroupNone
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current66.0 a
Armature Inertia10.330 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Heater IndicatorNo Heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitSPECIAL (OLD)
Motor Lead TerminationRing Terminals
Motor Lead Quantity/Wire Size2 @ 8 AWG
Mounting ArrangementF3
Overall Length15.26 IN
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
RoHS StatusROHS COMPLIANT
Service Factor1.00
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Motor StandardsNEMA
XP DivisionNot Applicable

Applications

  • Battery operation for portable pumps
  • Fans
  • Augers
  • Winches
  • Lifts

Features

  • NEMA C-face
  • Class F insulation
  • Double sealed ball bearings
  • Top-mounted terminal studs for power connection on ratings of 40 Amps and above

Nameplate

Nameplate

CAT.NO. CDP3440-V12
SPEC. 34-7074Z618
HP .75 ENCL TEFC
RPM 1800
FRAME 56C TYPE 3430P
ARM V 12 ARM A 66
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY A
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5112AU01
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L
Enclosure
  • TEFC
Frame Size
  • 56C
Horsepower
  • 3/4HP
Input Phase
  • DC
Input Voltage
  • 12VDC
Speed
  • 1800RPM
Type
  • Electric Motor

Baldor Electric Company
