Specifications
• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
| Brand | Various |
|---|---|
| Part Number | AK2012 AK20x3/4 |
| Bore | 3/4" |
| Sheave Cross Section | AK |
| Outside Diameter | 2.00" |
| Pulley Diameter “A” | 1.80" |
| Pulley Diameter “3L” | 1.46" |

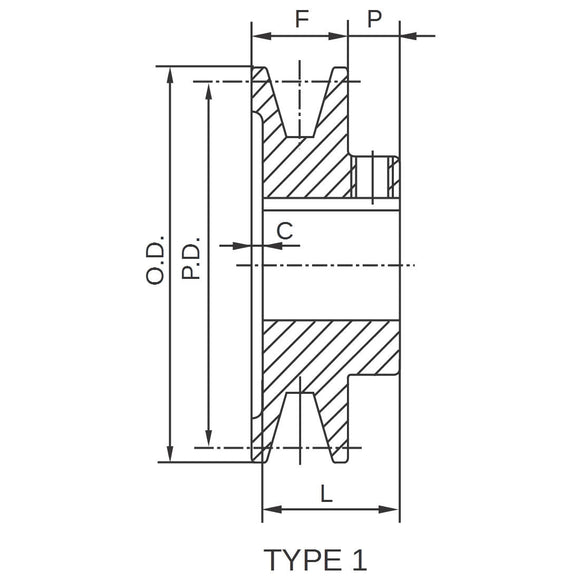

| Type | 1 |
| Pulley Width “F” | 21/32" |
| Dimension “L” | 15/16" |
| Dimension “P” | 7/16" |
| Recess Depth “C” | 5/32" |
| Approximate Weight | 0.3 lbs |

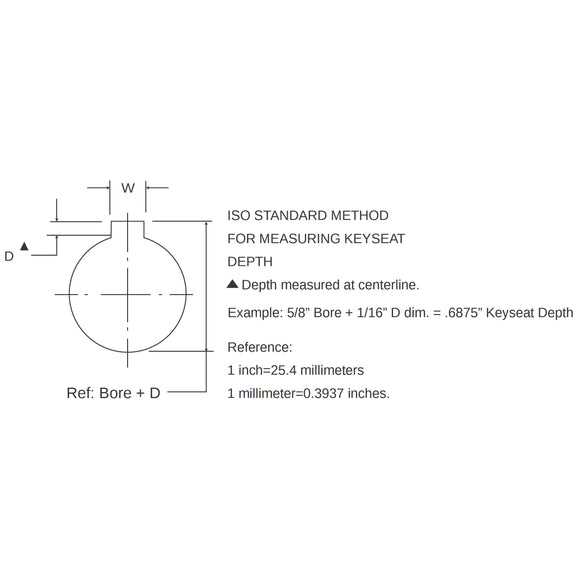

| Keyseat (WxD) | 3/16" x 3/32" |
| Set Screw(s) | Yes, 2 |
| Country of Origin | Various |
