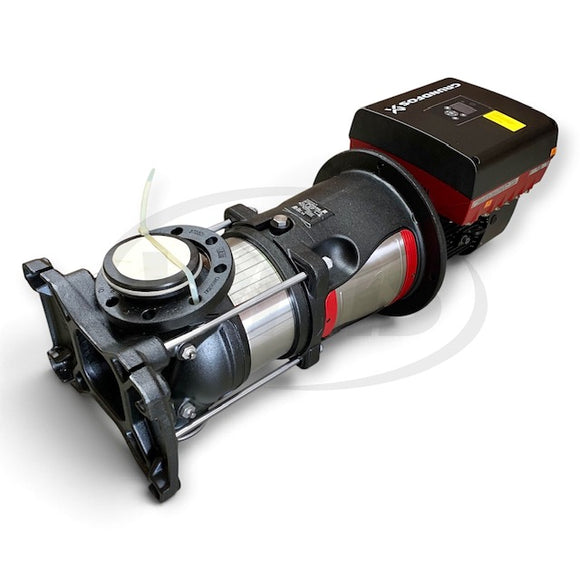

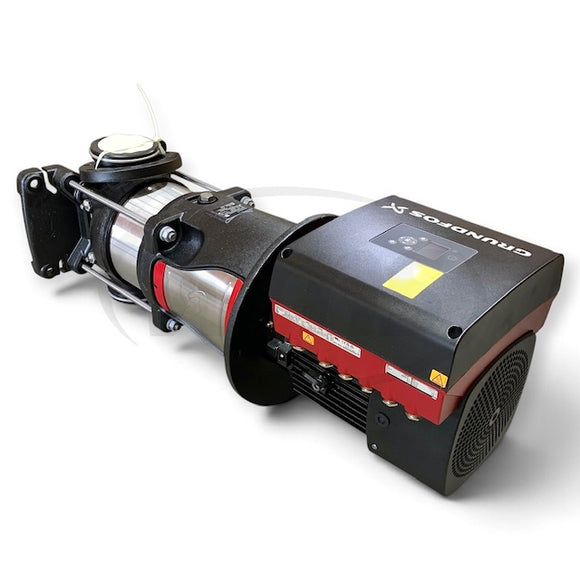

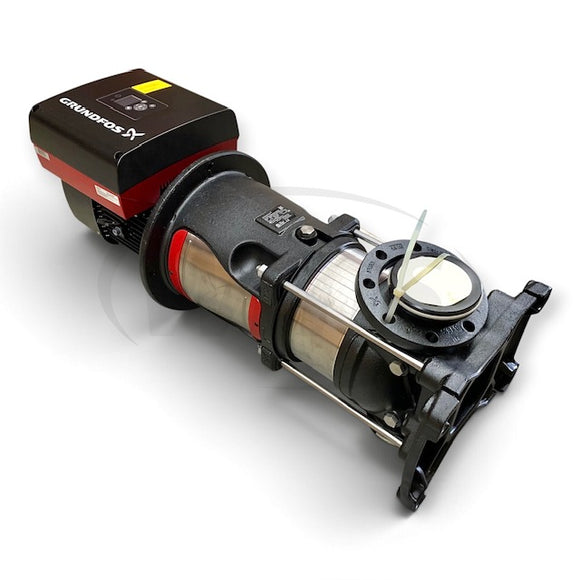

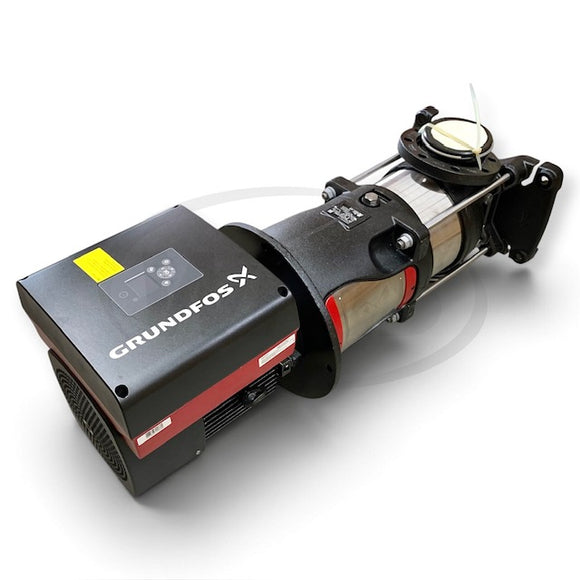

99145448 Grundfos 440–480V, 3-Phase High-Efficiency Multistage Centrifugal Pump

Features: Rated pump speed: 3538 rpm Rated flow: 500 US gpm Rated head: 76.78 ft Maximum head: 119.1 ft Actual impeller diameter: 76.78 in Impellers: 1 Number of reduced-diameter impellers: 1 Low NPSH: N Pump orientation: Vertical Shaft seal arrangement: Single Primary shaft seal: HQQE Code for shaft seal: HQQE Approvals: CE Approvals for drinking water: NSF/ANSI 61,NSF/ANSI 372 Curve tolerance: ISO9906:2012 3B Pump version: A Model: A Base: Cast iron Impeller: Stainless steel Material code: A Code for rubber: E Bearing: WC/WC Support bearing: Graflon Maximum ambient temperature: 122°F Maximum operating pressure: 262.06 psi Max pressure at stated temperature: 232 psi / 250°F Type of connection: ANSI Size of suction port: 4 inch Size of outlet port: 4 inch Pressure rating for connection: 150 lb Flange size for motor: 254TC Connect code: G Pumped liquid: Water Liquid temperature range: -4 .. 248 °F Selected liquid temperature: 68 °F Density: 62.29 lb/ft³ Motor standard: NEMA Motor type: 160H Rated power: 15 HP Power (P2) required by pump: 15 HP Over/undersize motor: Standard motor size Main frequency: 60 Hz Rated voltage: 3 x 440-480 V Service factor: 1.15 Rated current: 17.9-16.6 A Cos phi - power factor: 0.92-0.91 Rated speed: 360-4000rpm IE Efficiency class: IE5 Motor efficiency at full load: 92.3% Enclosure class: IP55 Insulation class: F Built-in motor protection: ELEC Motor Number: 93079599 Function Module: FM310 - Advanced Frequency converter: Built-in Pressure sensor: N Terminal box position: 6 DOE Pump Energy Index VL: 0.42 Net weight: 343 lb Gross weight: 635 lb Shipping volume: 44.2 ft³ Thrust handling device (Yes/No): N Country of origin: US
