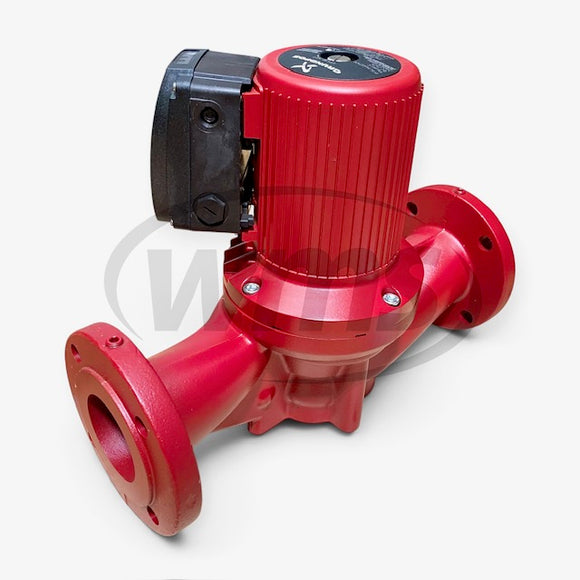

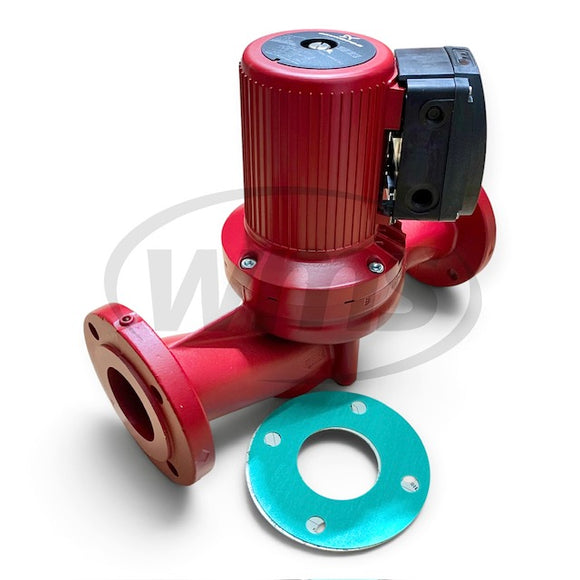

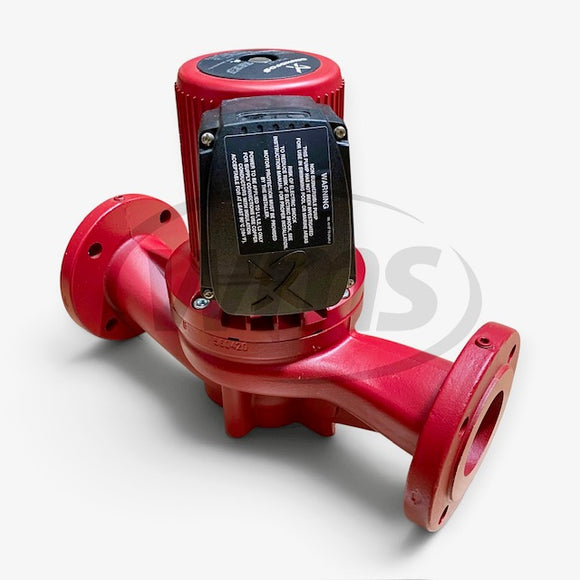

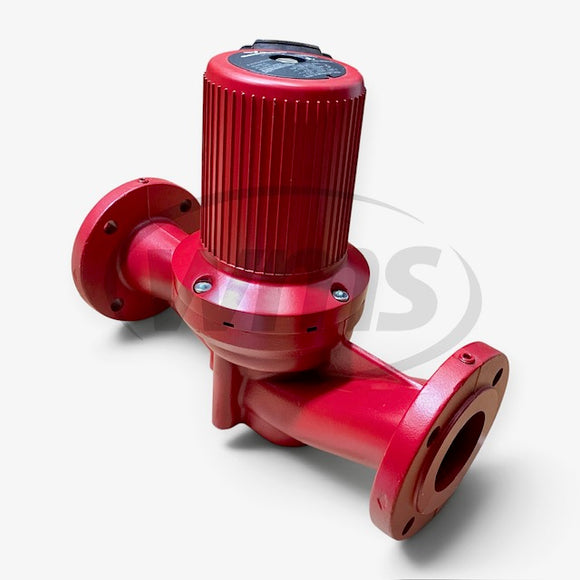

96402920 Grundfos UPS 80-160 F, 3 HP, 3-Phase, Cast Iron Circulator Pump

UPS 80-160 F The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible. The pump is characterized by: 3 speed motor. Ceramic radial bearings. Carbon axial bearing. Stainless steel rotor can, bearing plate and rotor cladding. Aluminium alloy stator housing. Cast iron pump housing. Stator with built-in thermal switch. The motor is a 3-phase motor. The pump is supplied with a standard module in the terminal box. The standard module is to be connected to the mains supply via external contactor. Controls: Relay: without relay Terminal box position: 1.30H Liquid: Pumped liquid: Water Liquid temperature range: 14 .. 248 °F Selected liquid temperature: 68 °F Density: 62.29 lb/ft³ Technical: Approvals: CCSAUS Materials: Pump housing: Cast iron EN 1561 EN-GJL-250 ASTM 35B-40B Impeller: Stainless steel EN 1.4301 AISI 304 Installation: Range of ambient temperature: 32 .. 104 °F Maximum operating pressure: 145.04 psi Pipe connection standard: ANSI Type of connection: DIN Pipe connection: GF 80 Pressure rating for connection: PN 10 Port-to-port length: 19 in Terminal box position: 1.30H Electrical data: Power input in speed 1: 2.0115 HP Power input in speed 2: 1550 W Max. power input: 2050 W Main frequency: 60 Hz Rated voltage: 3 x 208-230 V Current in speed 1: 4.05 A Current in speed 2: 4.2 A Current in speed 3: 6.35 A Cos phi in speed 1: 0.93 Cos phi in speed 2: 0.93 Cos phi: 0.81 Enclosure class (IEC 34-5): IPX4D Insulation class (IEC 85): H Built-in motor protection: CONTACT Winding resistance: 7.8 - 10.2 Ohm Others: Net weight: 85.8 lb Gross weight: 99 lb Shipping volume: 3.46 ft³ Country of origin: RS Custom tariff no.: 8413.70.2005
